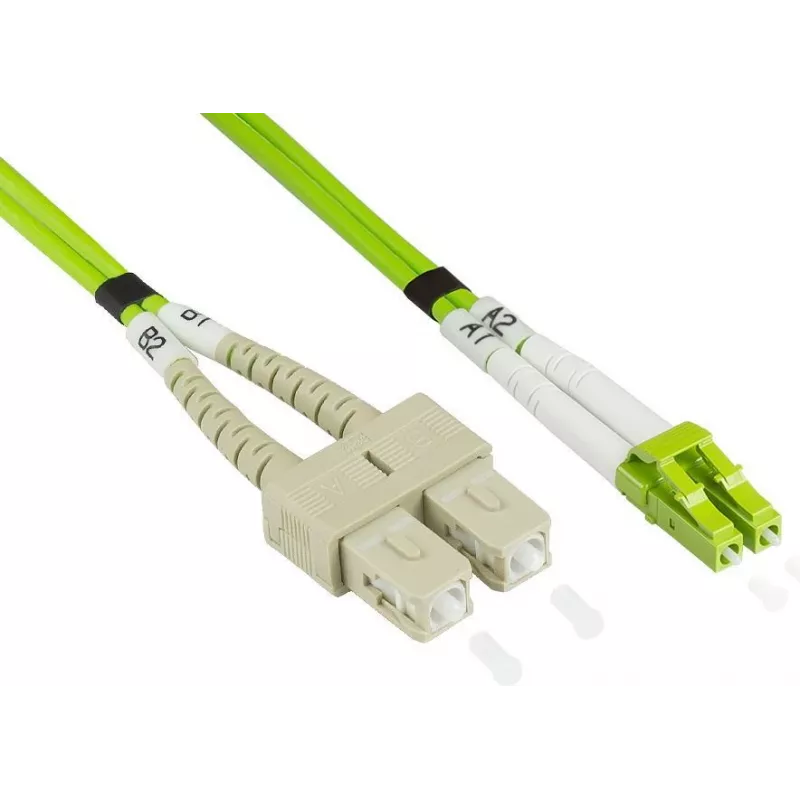

GoodConnections Alcasa LW-8075LS5 cavo patch in fibra ottica 7,5 m LSZH OM5 LC a SC verde

The GoodConnections Alcasa LW-8075LS5 is a high-performance fiber optic patch cable designed for demanding data center and enterprise network environments. Featuring OM5 wideband multimode fiber (WBMMF), this 7.5-meter duplex cable supports multiple wavelengths (850 nm and 953 nm) for high-speed transmission up to 40 Gbps and beyond. The LC to SC connector configuration ensures compatibility with a wide range of network equipment. With a low-smoke zero-halogen (LSZH) jacket, it provides enhanced safety in confined spaces. The green color aids in easy identification and cable management.

Advantages

OM5 fiber offers superior bandwidth and flexibility for future network upgrades, supporting both traditional multimode and emerging shortwave wavelength division multiplexing (SWDM) applications. The LSZH jacket reduces toxic smoke and corrosive gases in case of fire, making it ideal for indoor installations. Duplex design allows for simultaneous bidirectional communication.

Suitable for

• Data centers requiring high-speed interconnects
• Local Area Networks (LAN) and Storage Area Networks (SAN)
• High-performance computing environments
• Telecommunications rooms and server racks

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: OM5 Multimode (WBMMF)
• Connector A: LC
• Connector B: SC
• Length: 7.5 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Color: Green
• Core/Cladding: 50/125 µm
• Number of Fibers: 2 (Duplex)
• Insertion Loss: ≤ 0.3 dB (typical)
• Return Loss: ≥ 30 dB (typical)
• Supported Wavelengths: 850 nm, 953 nm
• Bandwidth (850 nm): 2800 MHz·km (EMB)
• Bandwidth (953 nm): 4700 MHz·km (EMB)
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Minimum Bend Radius: 7.5 mm
• Cable Diameter: 2.0 mm
• Standards: IEC 60793-2-10 type A1a.4, TIA-492AAAE, RoHS

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for 40GBASE-SR4, 100GBASE-SR10, and future SWDM applications. Pair with OM5-compatible transceivers for best results.
