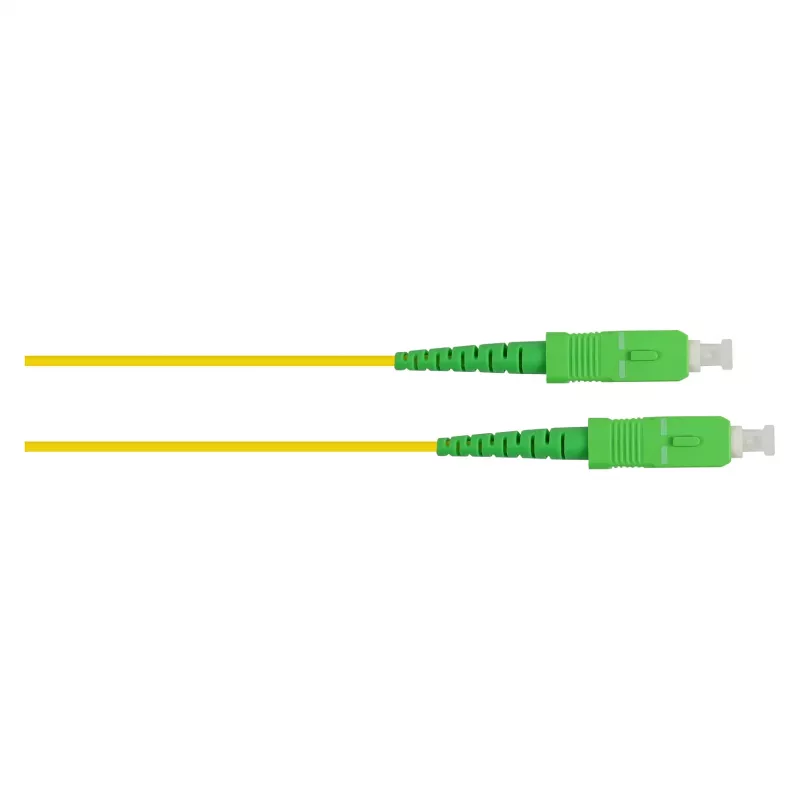

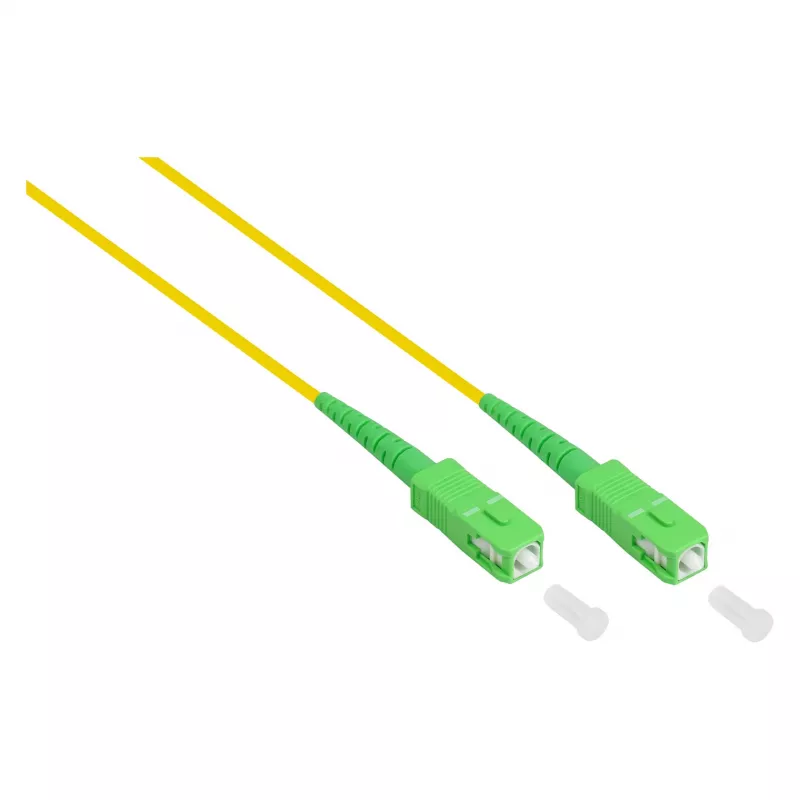

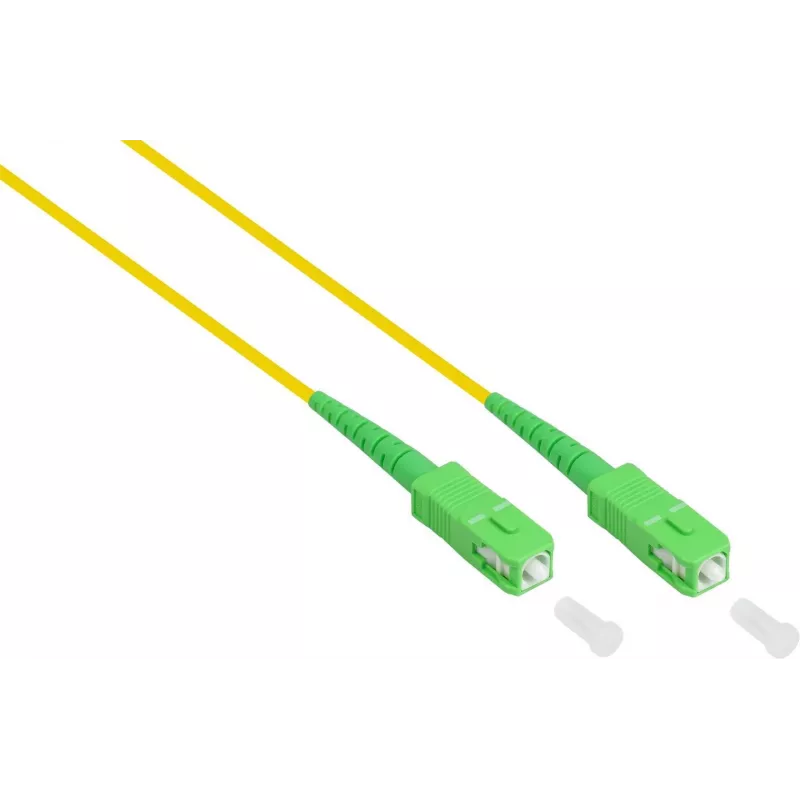

GoodConnections Alcasa LW-S920SASA OS2 fibra ottica monomodale patch cord LC a SC, 20 m, giallo, LSZH

With an insertion loss below 0.3 dB and return loss exceeding 50 dB, this OS2 single-mode fiber optic patch cable delivers exceptional signal integrity for high-speed, long-distance networks. The GoodConnections Alcasa LW-S920SASA connects LC to SC connectors over a 20-meter span, making it ideal for data centers, telecom rooms, and enterprise backbones.

Overview

Engineered for performance, this simplex patch cable features a 9/125 µm core/cladding diameter, optimized for 1310 nm and 1550 nm wavelengths. The yellow LSZH jacket ensures safety in plenum and riser environments by emitting low smoke and zero halogens in case of fire. UPC polished connectors minimize back reflections, ensuring stable, error-free transmissions.

What stands out

• Low insertion loss < 0.3 dB for minimal signal degradation
• High return loss > 50 dB reduces reflections and improves link quality
• LSZH jacket for enhanced fire safety and environmental compliance
• Wide operating temperature range from -20°C to 70°C
• RoHS and CE certified for global compliance

Technical details

• Fiber type: OS2 single-mode, 9/125 µm
• Connectors: LC/UPC to SC/UPC
• Cable length: 20 meters
• Jacket color: Yellow
• Attenuation: < 0.35 dB/km @ 1310 nm, < 0.25 dB/km @ 1550 nm
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C
• Compliance: RoHS, CE

Our verdict

A reliable, high-performance patch cable that meets stringent industry standards for single-mode fiber connectivity. Its low loss and LSZH jacket make it a solid choice for professional installations where safety and performance are paramount.
