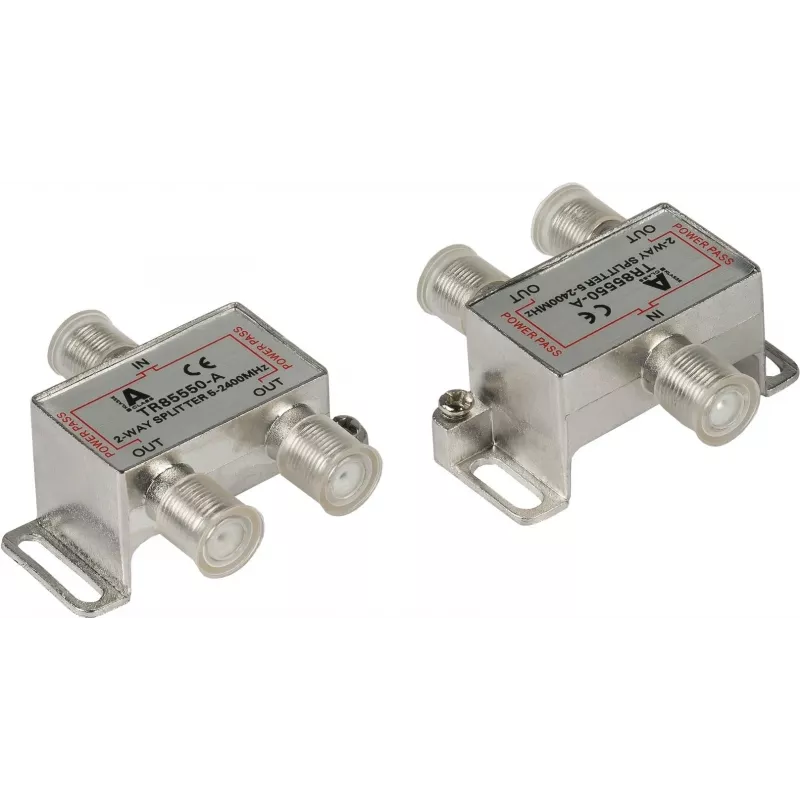

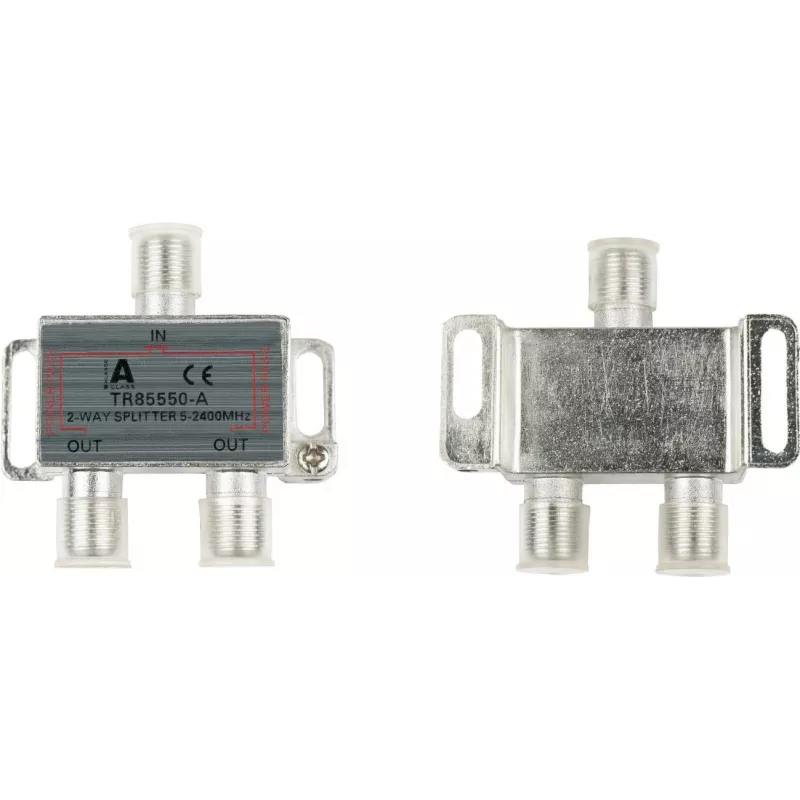

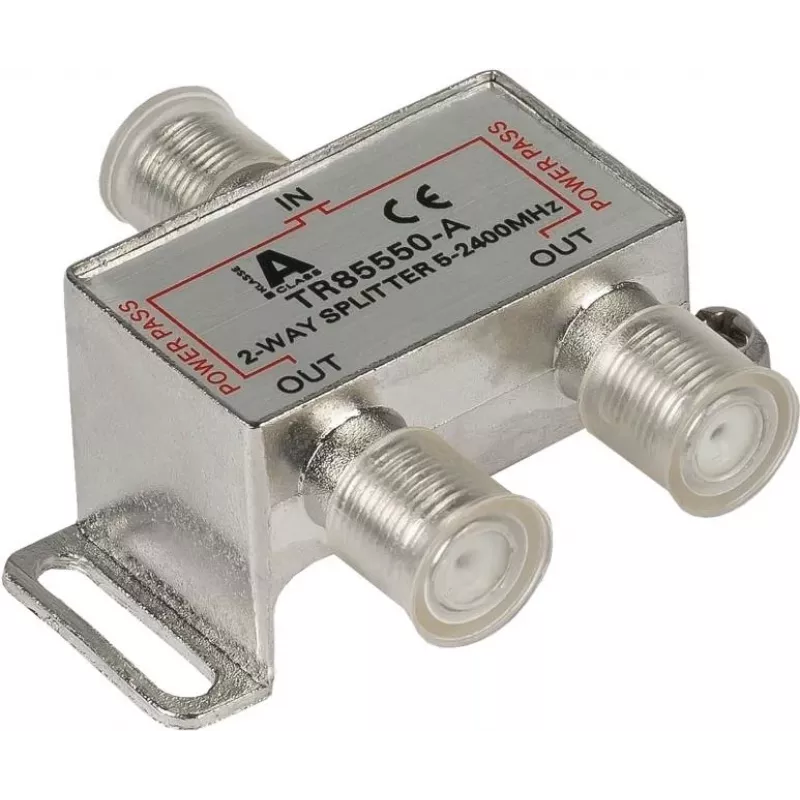

GoodConnections Distributore SAT con connettori F, 2 vie, 5-2250 MHz

Distribute satellite signals with minimal loss: this 2-way trunk distributor from GoodConnections delivers a wide 5–2250 MHz frequency range, ensuring compatibility with satellite TV, DVB-T, and cable TV. Its die-cast zinc housing provides excellent shielding (>100 dB, Class A) for interference-free reception.

Overview

The GoodConnections S-FV2522 is a professional-grade SAT trunk distributor designed to split a single satellite feed into two outputs without compromising signal quality. It supports the full satellite IF range (950–2250 MHz) as well as terrestrial and cable bands (5–862 MHz), making it a versatile component for any distribution setup. With DC pass-through on all outputs, it can power LNBs and other active devices directly through the coaxial cable.

What stands out

• Wide frequency range 5–2250 MHz covers SAT, DVB-T, and cable TV
• Low insertion loss: approx. 3.5 dB (terrestrial) and 4.0 dB (satellite)
• High isolation between outputs (>20 dB) prevents interference
• DC pass-through on all outputs for remote powering
• Robust die-cast zinc housing with >100 dB shielding (Class A)
• Wall-mountable design for easy installation

Technical details

• Inputs: 1 × F-connector (female)
• Outputs: 2 × F-connector (female)
• Frequency range: 5–2250 MHz
• Insertion loss (5–862 MHz): approx. 3.5 dB
• Insertion loss (950–2250 MHz): approx. 4.0 dB
• Isolation (output-output, 5–862 MHz): >20 dB
• Isolation (output-output, 950–2250 MHz): >18 dB
• Return loss (5–862 MHz): >18 dB
• Return loss (950–2250 MHz): >15 dB
• Impedance: 75 Ohm
• DC pass-through: Yes (all outputs)
• Shielding factor: >100 dB (Class A)
• Housing material: Die-cast zinc
• Operating temperature: -20 to +50 °C
• Mounting type: Screw mounting (wall mountable)

Our verdict

For reliable satellite signal distribution in residential or commercial setups, the GoodConnections S-FV2522 offers excellent performance with low loss and high isolation. Its rugged construction and DC pass-through make it a practical choice for installers.
