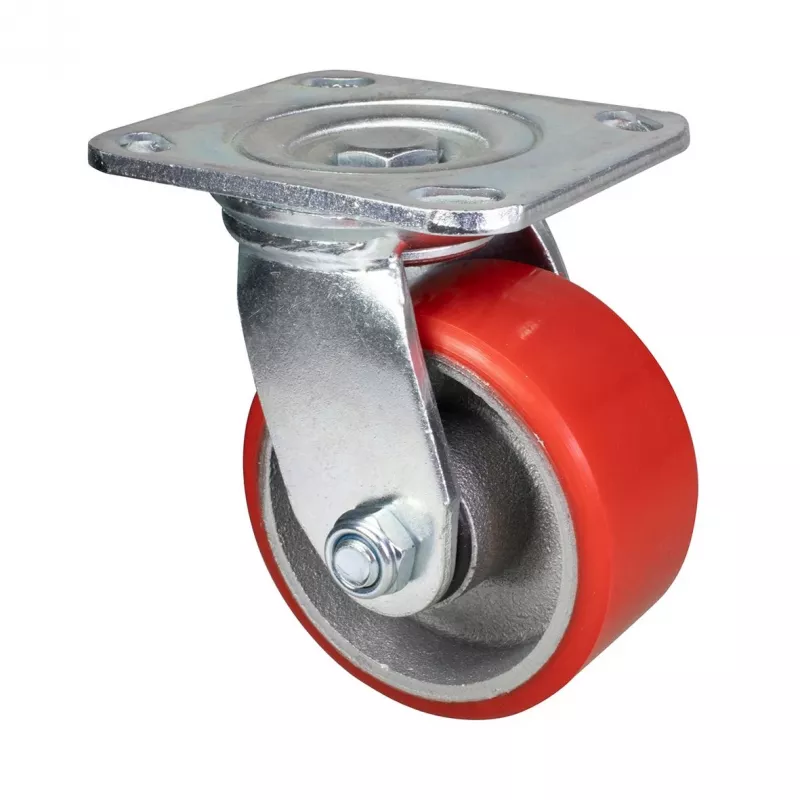

Wagner design yourself Rotella piroettante per carichi pesanti RO 0116 rossa (4011601)

In busy workshops and industrial environments, moving heavy loads safely requires castors that can withstand constant stress. The Wagner design yourself Heavy-Duty Swivel Castor RO 0116 in red is built for such demanding tasks. With a 100 mm wheel diameter and a robust 150 kg load capacity per castor, it is a reliable choice for transport carts, workbenches, and other mobile equipment. The swivel head allows easy manoeuvring, while the total brake locks both wheel and swivel movement, keeping the load securely in place during stationary work. The red thermoplastic rubber wheel offers quiet, floor-friendly rolling, and the galvanized steel housing resists corrosion for long service life.

Key specifications

• Wheel diameter: 100 mm
• Load capacity: 150 kg
• Overall height: 128 mm
• Mounting plate dimensions: 100 x 80 mm
• Mounting hole spacing: 80 x 60 mm
• Wheel material: Thermoplastic rubber (TPE)
• Housing material: Galvanized steel
• Bearing type: Roller bearing
• Brake type: Total brake (swivel and wheel lock)
• Wheel colour: Red
• Housing colour: Silver (galvanized)
• Castor type: Swivel castor
• Tread hardness: 85° Shore A
• Temperature range: -20°C to +60°C
• Mounting type: Plate mount
• Number of mounting holes: 4
• Wheel width: 32 mm

Why choose it

This castor combines high load capacity with smooth rolling and secure locking. The total brake ensures stability when the equipment must not move, and the corrosion-resistant galvanized housing makes it suitable for damp or harsh environments. The red TPE wheel is gentle on floors and reduces noise, making it ideal for indoor use.

Ideal use cases

• Transport carts in warehouses and workshops
• Mobile workbenches and tool cabinets
• Industrial trolleys requiring frequent locking
• Equipment used on smooth concrete or epoxy floors

Good to know

The castor is mounted using a plate with four holes, providing a stable connection. The roller bearing ensures low rolling resistance even under heavy loads. The total brake is operated by a foot lever, allowing quick locking and release.
