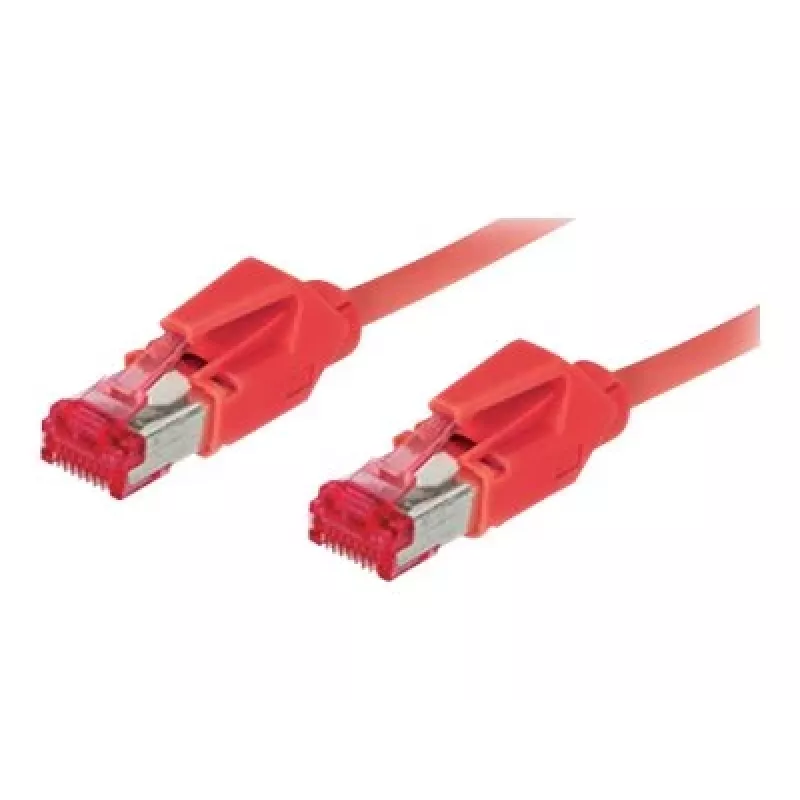

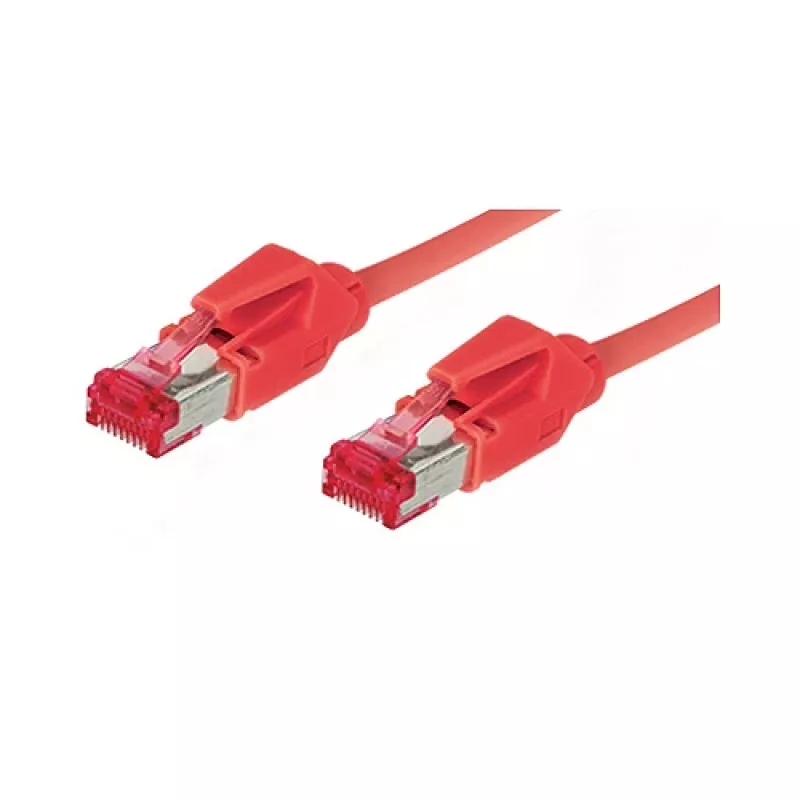

Good Connections cavo patch Cat.6 S/FTP PiMF senza alogeni, Hirose RJ45, rosso, 5m (8066-105R)

In a busy office, a network administrator replaces a faulty cable between a patch panel and a switch. The Good Connections Cat.6 S/FTP patch cable ensures a stable 10 Gigabit link, while its red jacket makes it easy to trace among dozens of connections. The cable's halogen-free jacket and gold-plated Hirose connectors provide long-term reliability in high-density environments.

Key specifications

• Category: Cat.6 with 600 MHz bandwidth
• Shielding: S/FTP (braided and foil) with PiMF (pairs in metal foil)
• Jacket: LSZH (Low Smoke Zero Halogen), red
• Connectors: Hirose RJ45 male to RJ45 male, gold-plated contacts
• Length: 5 m
• Data rate: up to 10 Gbps (10GBASE-T)
• Conductor: stranded copper, AWG 27/7
• Wiring: TIA/EIA 568B
• Boot: snagless
• Compliance: RoHS, REACH, halogen-free per IEC 60754-2

Why choose it

This cable combines premium shielding and high-quality connectors to minimize crosstalk and electromagnetic interference. The LSZH jacket emits low smoke and no toxic halogens in case of fire, making it safe for enclosed spaces. Hirose connectors ensure a secure and durable connection, while the snagless boot protects the locking tab during installation. Backward compatible with Cat.5e and Cat.5 networks, it is a future-proof choice for demanding applications.

Ideal use cases

• Connecting servers to switches in data centers
• High-speed workstation connections for video editing or CAD
• Patch panel to switch links in structured cabling
• PoE applications (PoE, PoE+, PoE++)
• Industrial environments requiring halogen-free cabling

Good to know

The cable is 5 meters long, ideal for rack-to-rack or desk-to-wall connections. Its red color aids in identification and organization. The stranded conductors offer flexibility for frequent moves. The cable is tested to 600 MHz, exceeding standard Cat.6 requirements, ensuring headroom for high-speed protocols.
