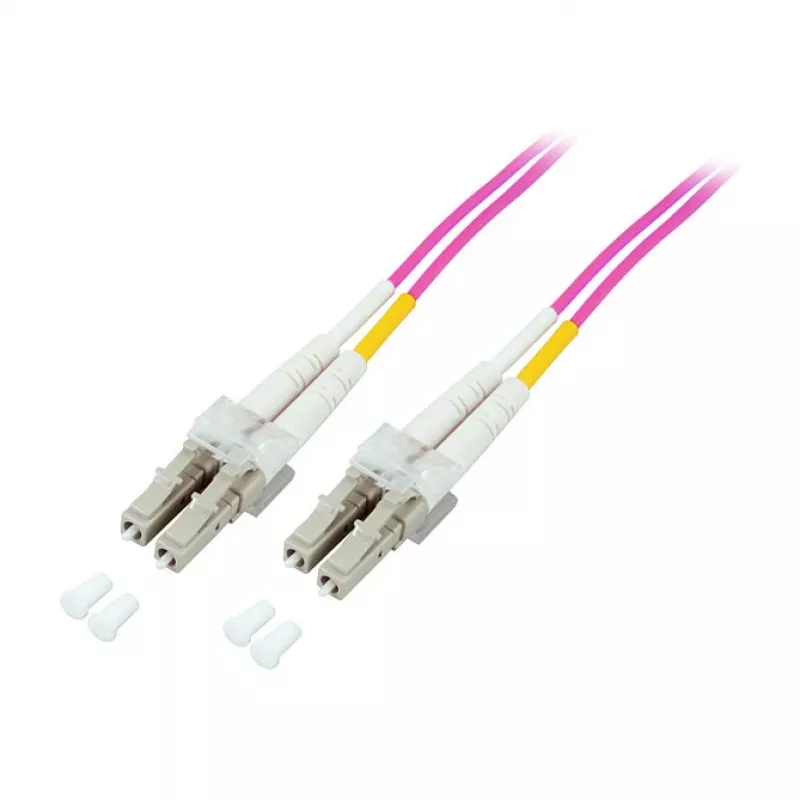

Good Connections cavo patch in fibra ottica Duplex OM4 LC/LC multimodale 0,5 m

The Good Connections LW-8005LC4 is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. This duplex OM4 multimode cable features LC to LC connectors with UPC polishing, ensuring low insertion loss and high return loss for optimal signal integrity.

Advantages

OM4 fiber supports high-bandwidth applications over longer distances compared to OM3, with an effective modal bandwidth of 4700 MHz·km at 850 nm. The duplex design allows for simultaneous bidirectional communication, ideal for data centers and enterprise networks. The aqua-colored jacket provides easy identification and durability.

Suitable for

• Data center interconnects
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• FTTx deployments

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Multimode OM4
• Core/Cladding: 50/125 µm
• Connectors: LC to LC, Duplex
• Connector Polish: UPC
• Length: 0.5 m
• Jacket Color: Aqua
• Insertion Loss: < 0.3 dB
• Return Loss: > 30 dB
• Operating Wavelengths: 850 nm, 1300 nm
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, use with OM4 compatible transceivers and ensure clean, dust-free connectors. This cable is ideal for high-speed 10G, 40G, and 100G Ethernet applications over short distances.
