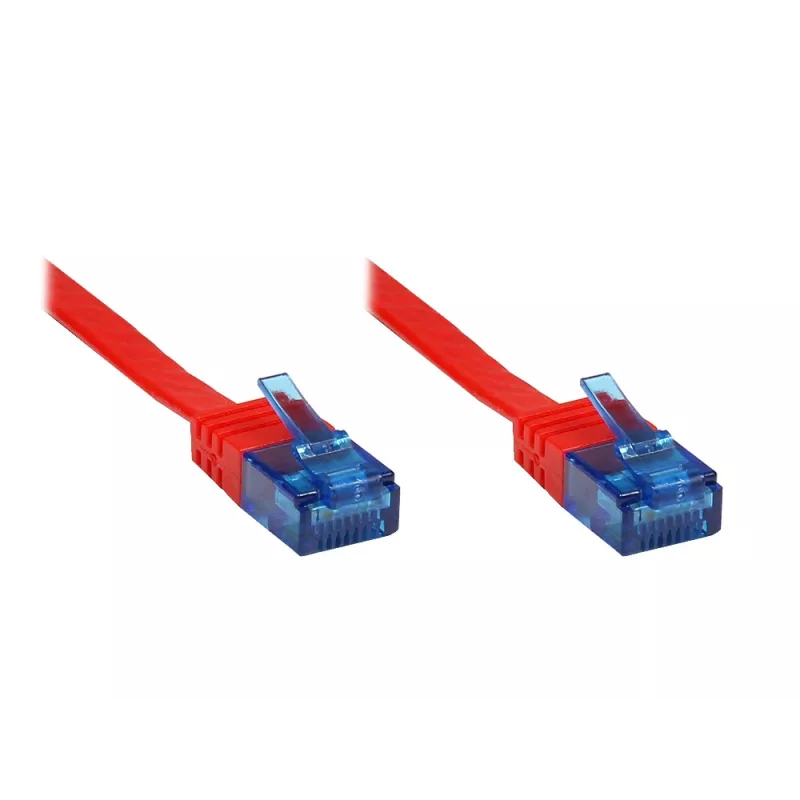

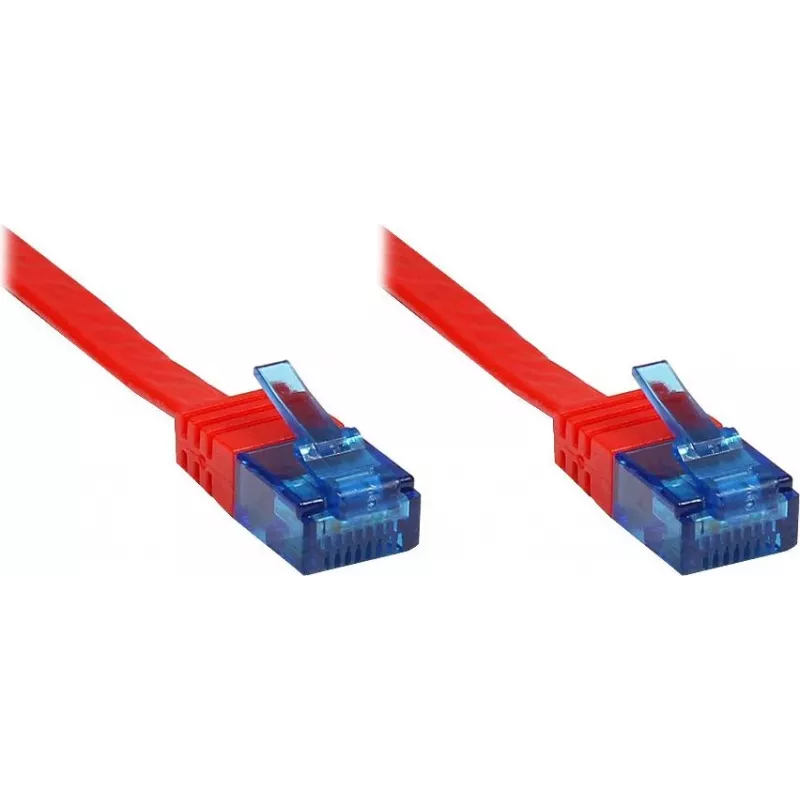

Good Connections Cavo patch piatto Cat.6a U/UTP, RJ45, 500 MHz, rosso, 3 m 8060-HF030R

Network bottlenecks and bulky cabling can cripple a modern workspace. The Good Connections Cat.6a flat patch cable solves both problems in one slim, red solution. It delivers 10 Gigabit Ethernet performance over 3 metres while lying nearly invisible under carpets or along skirting boards.

Who is it for

IT technicians, office managers, and home users who need reliable high-speed links without the clutter of round cables. Ideal for desks, wall-mounted TVs, and tight cable ducts where space is at a premium.

Main features

• Cat.6a performance with 500 MHz bandwidth for 10GBASE-T networks

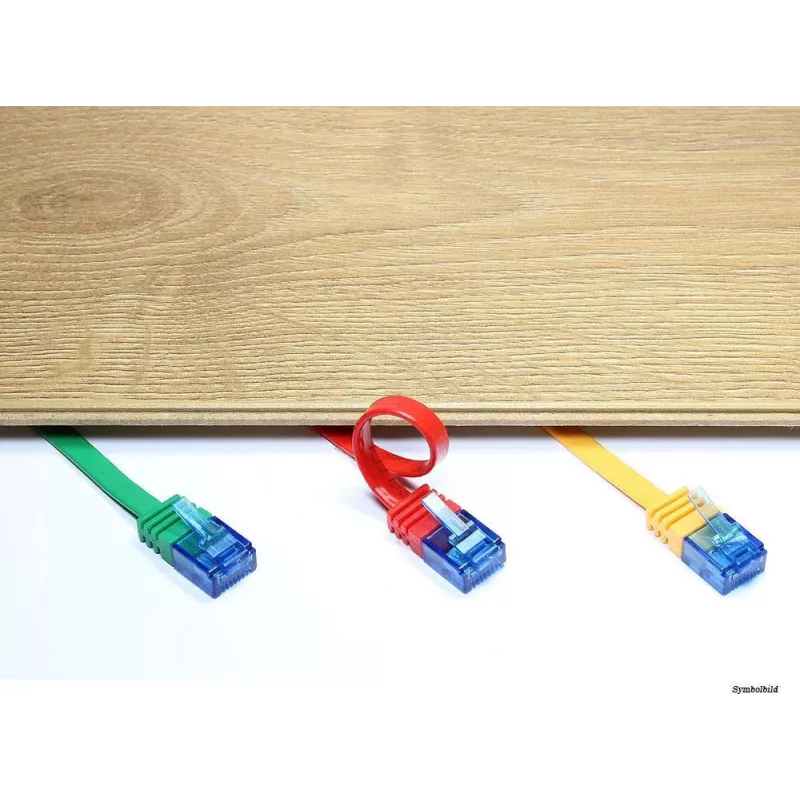

• Flat, U/UTP design for discreet routing under floors and behind furniture
• Gold-plated RJ45 connectors with snagless boots for secure, long-lasting connections
• LSZH jacket emits low smoke and zero halogen in case of fire
• Stranded copper conductors (AWG 26/7) remain flexible and easy to install
• Backward compatible with Cat.6, Cat.5e, and Cat.5 equipment

Specifications

• Cable category: Cat.6a (Class EA)
• Shielding: U/UTP (unshielded)
• Cable design: flat
• Bandwidth: 500 MHz
• Length: 3 m
• Colour: red
• Connector type: RJ45 male to RJ45 male
• Connector plating: gold
• Conductor material: copper, stranded
• Conductor gauge: AWG 26/7
• Jacket material: LSZH (low smoke zero halogen)
• Wiring standard: TIA/EIA 568B
• Data transfer rate: up to 10 Gbps
• Boot type: snagless

Tips

For best performance, avoid sharp bends and keep the cable away from power lines. The flat profile is perfect for adhesive clips or under-carpet runs. Pair with a Cat.6a patch panel for a clean, high-speed infrastructure.
