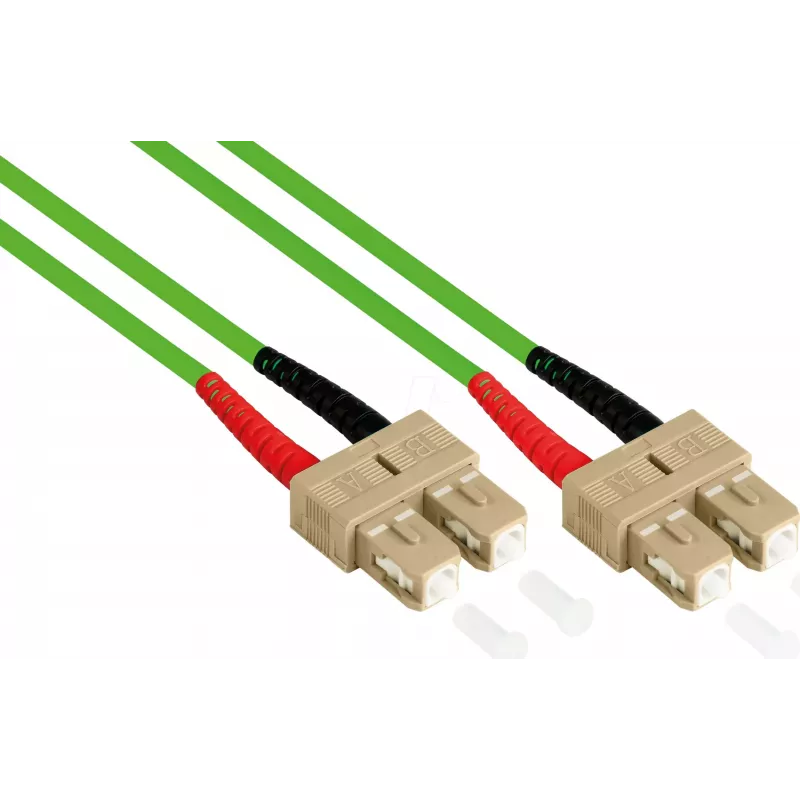

GoodConnections LW-810SC5 cavo patch in fibra ottica 10 m OM5 SC/SC verde

The GoodConnections LW-810SC5 is a high-performance fiber optic patch cable designed for demanding network environments. With OM5 wideband multimode fiber, it supports high-speed data transmission up to 400GbE, making it ideal for data centers and enterprise networks. The cable features duplex SC connectors with PC polishing, ensuring low insertion loss and high return loss for reliable connectivity.

Advantages

OM5 fiber provides superior modal bandwidth at 850 nm and 953 nm, enabling support for shortwave wavelength division multiplexing (SWDM) and future-proofing your network. The LSZH jacket ensures safety in confined spaces by emitting low smoke and zero halogen in case of fire. The green color aids in easy identification and cable management.

Suitable for

• Data centers requiring high-speed interconnects (10GbE, 40GbE, 100GbE, 400GbE)
• Enterprise network backbones
• Telecommunications infrastructure
• High-performance computing environments

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Multimode
• Fiber Class: OM5 (Wideband Multimode Fiber)
• Cable Length: 10 m
• Connector Type (End 1): SC
• Connector Type (End 2): SC
• Connector Polishing: PC (Physical Contact)
• Fiber Count: Duplex (2 Fibers)
• Core/Cladding Diameter: 50/125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Color: Green
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 30 dB
• Modal Bandwidth (850nm): 2800 MHz-km
• Modal Bandwidth (953nm): 4700 MHz-km
• Supported Wavelengths: 850 nm, 953 nm
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3, IEC 60794-2-10/20

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard SC duplex ports. Suitable for use with OM5 transceivers and SWDM technology.
