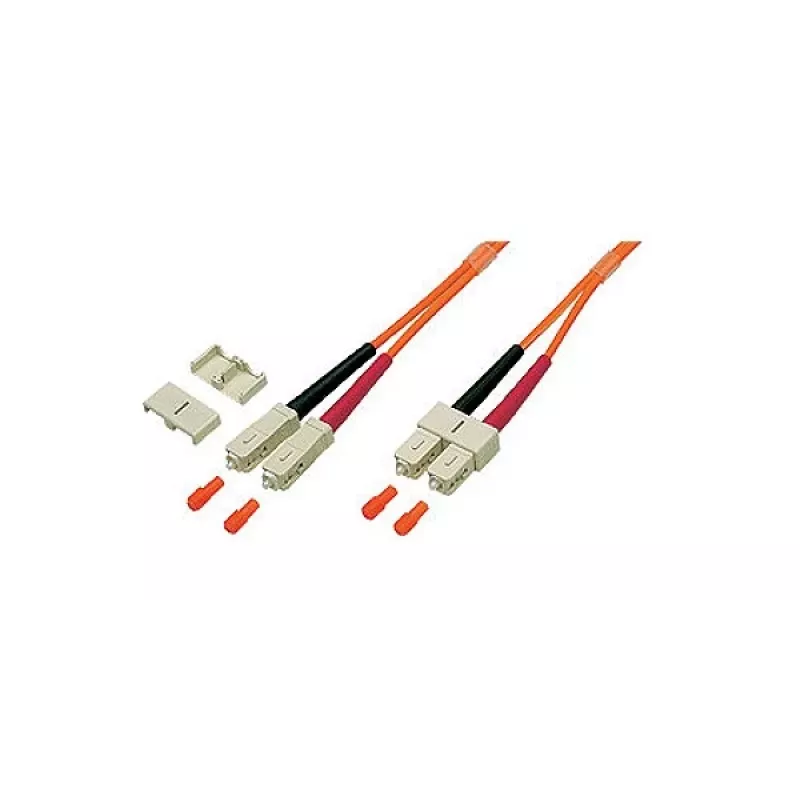

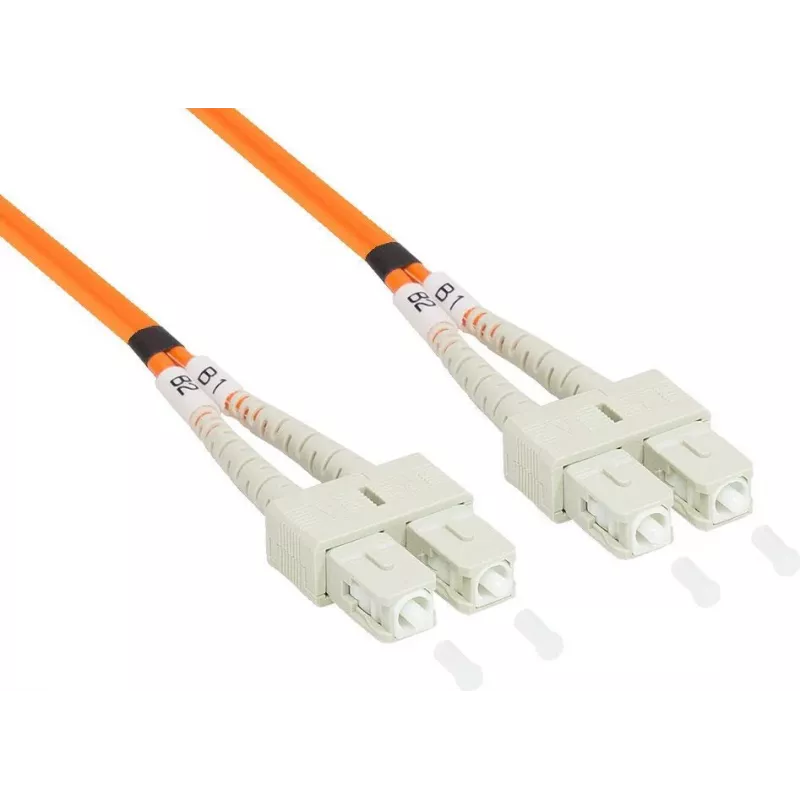

GoodConnections OM2 Duplex Multimode SC/SC cavo patch in fibra ottica, 15 m LW-815SC

For installations where signal integrity cannot be left to chance, this GoodConnections LW-815SC duplex patch cable pairs OM2 multimode fibre with precision SC connectors on both ends. The 50/125 µm core and cladding geometry supports Gigabit Ethernet and Fibre Channel links over 15 metres, while the LSZH orange jacket keeps smoke and toxic emissions low in enclosed spaces. Each connector is factory polished to minimise insertion loss, so the cable performs consistently from the first day of deployment.

Highlights

• Duplex OM2 multimode fibre with 50/125 µm core/cladding
• SC to SC connectors for secure, snap-in mating
• 15 m length suits patch panels, ODFs, and direct device links
• LSZH jacket reduces smoke and halogen emissions
• Typical insertion loss ≤ 0.3 dB per connector pair
• Return loss ≥ 30 dB for stable signal reflection control
• Bandwidth of 500 MHz·km at both 850 nm and 1300 nm
• Operating range from -20 °C to 70 °C

In daily use

The orange jacket makes the cable easy to identify among copper runs in crowded cabinets, and the LSZH material adds a safety margin in office or industrial environments. SC connectors click into place with a positive latch, preventing accidental disconnects during moves or maintenance. The 15 m length bridges typical distances between floor distributors and active equipment without excess slack, and the duplex construction keeps transmit and receive paths in a single, manageable assembly.

Full specifications

• Product type: Fibre optic patch cable
• Fibre type: Multimode OM2
• Core/cladding diameter: 50/125 µm
• Configuration: Duplex
• Connector A: SC
• Connector B: SC
• Cable length: 15 m
• Jacket colour: Orange
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Insertion loss: ≤ 0.3 dB (typical)
• Return loss: ≥ 30 dB (typical)
• Attenuation at 850 nm: ≤ 3.0 dB/km
• Attenuation at 1300 nm: ≤ 1.0 dB/km
• Bandwidth at 850 nm: 500 MHz·km
• Bandwidth at 1300 nm: 500 MHz·km
• Operating temperature: -20 °C to 70 °C
• Storage temperature: -40 °C to 85 °C
• Compliance: RoHS, TIA/EIA-568-C.3
• Application: Gigabit Ethernet, Fibre Channel, ODF, FTTX

Final note

When a dependable multimode link is required, the LW-815SC delivers the mechanical precision and environmental safety that professional installers expect from GoodConnections.
