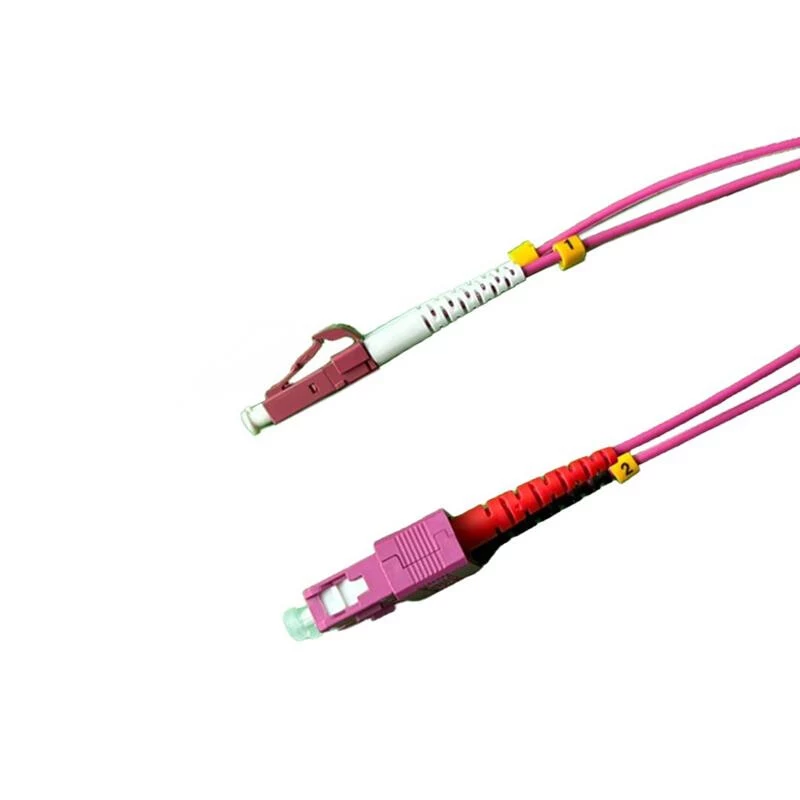

Grafenthal Cavo in fibra ottica OM4 LC/UPC-SC/UPC LSZH 3,00m viola

The Grafenthal Optical Fibre Cable OM4 is a high-performance multimode patch cable designed for demanding data centre and enterprise network environments. Featuring LC/UPC to SC/UPC connectors, a duplex fibre configuration, and a robust LSZH jacket, this 3.00m violet cable ensures reliable, high-speed data transmission with low signal loss.

Advantages

Optimised for 40G and 100G Ethernet applications, the OM4 fibre provides enhanced modal bandwidth (4700 MHz-km at 850nm) and low attenuation, supporting longer link distances. The LSZH jacket minimises toxic smoke and fumes in case of fire, making it ideal for confined spaces. Violet colour aids easy identification in high-density patching areas.

Suitable for

• Data centres and server rooms
• Storage Area Networks (SAN)
• Local Area Networks (LAN)
• FTTx deployments
• High-speed backbone connections

Key specifications

• Cable Type: Optical Fibre Patch Cable
• Fibre Mode: Multimode
• Fibre Class: OM4
• Connector A: LC/UPC
• Connector B: SC/UPC
• Fibre Count: Duplex (2 Fibres)
• Cable Length: 3.0 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Violet
• Core/Cladding Diameter: 50/125 µm
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 50 dB (UPC)
• Attenuation @ 850nm: 3.0 dB/km
• Attenuation @ 1300nm: 1.0 dB/km
• Modal Bandwidth @ 850nm (EMB): 4700 MHz-km
• Modal Bandwidth @ 1300nm: 500 MHz-km
• Operating Temperature: -20°C to +70°C
• Minimum Bend Radius: 7.5 mm
• Standards Compliance: TIA/EIA-568-C.3, ISO/IEC 11801, RoHS

Recommendations

For optimal performance, pair this OM4 patch cable with OM4-compatible transceivers and patch panels. Ensure proper bend radius management to maintain signal integrity. Ideal for high-speed network upgrades requiring reliable, low-loss connections.
