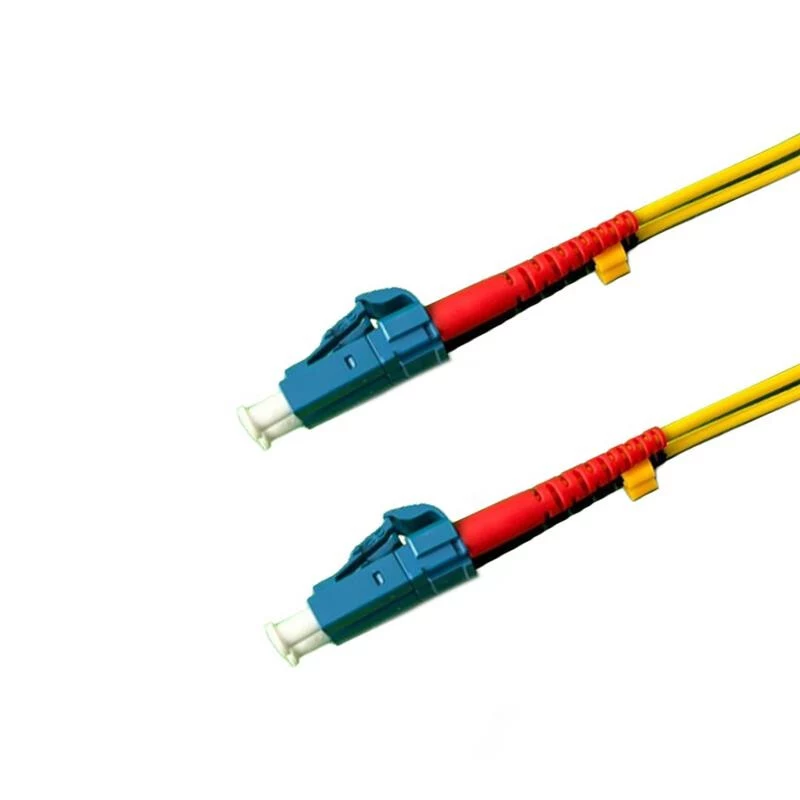

Grafenthal Cavo in fibra ottica OS2 LC/UPC-LC/UPC LSZH 5,00m giallo

The Grafenthal Optical Fibre Cable OS2 is a high-performance single-mode duplex patch cable designed for reliable data transmission in demanding network environments. Featuring LC/UPC connectors on both ends and a 5.00-meter length, this cable ensures low insertion loss and high return loss for optimal signal integrity. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, while the yellow color facilitates easy identification.

Advantages

This cable offers exceptional performance with typical insertion loss ≤0.3 dB and return loss ≥50 dB (UPC), ensuring minimal signal degradation. The LSZH jacket reduces toxic and corrosive gas emissions in case of fire, making it ideal for indoor installations. Its duplex design supports bidirectional communication, and the 9/125 µm core/cladding ensures compatibility with standard single-mode equipment.

Suitable for

• High-speed data networks (1/10/40/100 Gbps)
• Storage Area Networks (SAN)
• Local Area Networks (LAN)
• Fibre to the x (FTTx)
• Data centers and server rooms

Key specifications

• Fibre Type: OS2 Single-Mode
• Connector Type: LC/UPC to LC/UPC
• Cable Length: 5.00 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Core/Cladding Diameter: 9/125 µm
• Cable Structure: Duplex
• Fibre Count: 2
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 50 dB (UPC)
• Attenuation @ 1310nm: ≤ 0.35 dB/km
• Attenuation @ 1550nm: ≤ 0.25 dB/km
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Minimum Bend Radius: 10D
• Cable Diameter: 3.0 mm
• Standards Compliance: IEC 60793, TIA/EIA-568-C.3, RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard LC/UPC interfaces and is recommended for use in structured cabling systems requiring high reliability and safety.
