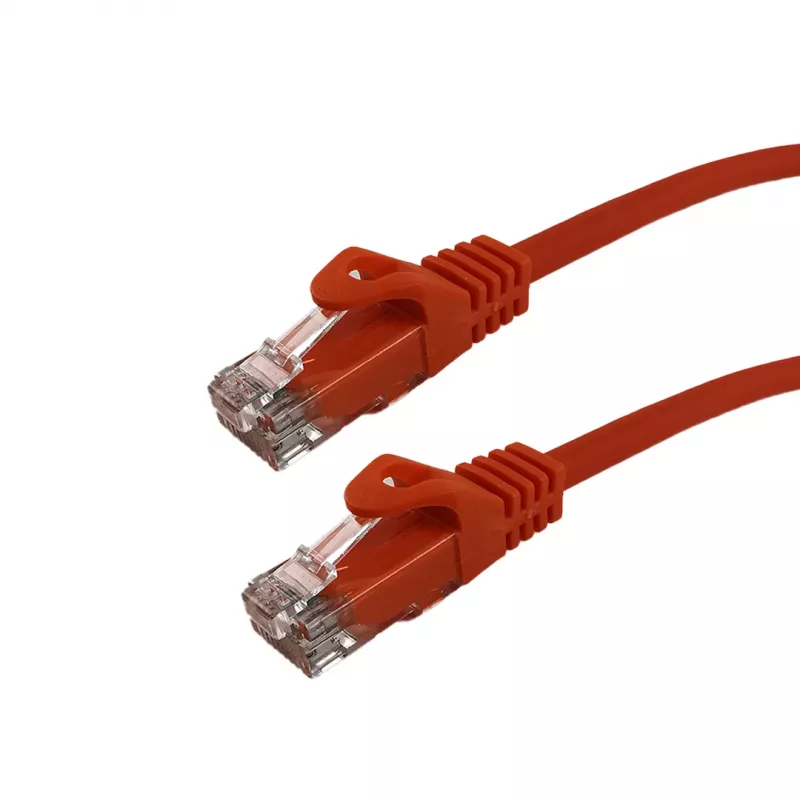

Grafenthal cavo patch CAT6 U/UTP CU LSZH 3,00m arancione

The Grafenthal Patch Cable CAT6 U/UTP CU LSZH 3.00m Orange is a high-performance network cable designed for reliable Gigabit Ethernet connections. Manufactured with pure copper conductors and LSZH (Low Smoke Zero Halogen) jacket, it ensures safety and durability in any environment.

Advantages

This patch cable offers excellent signal integrity and reduced crosstalk thanks to its U/UTP (Unshielded/Unshielded Twisted Pair) design. The LSZH jacket minimizes toxic fumes in case of fire, making it ideal for public and commercial spaces. With a length of 3.00 meters, it provides flexibility for connecting devices in server rooms, offices, or home networks.

Suitable for

• Connecting computers to switches, routers, or patch panels
• Gigabit Ethernet networks (1000BASE-T)
• Data centers and server rooms requiring LSZH compliance
• Home and office LAN installations

Key specifications

• Cable Type: Patch Cable
• Cable Category: CAT6 (Category 6)
• Shielding Type: U/UTP (Unshielded / Unshielded Twisted Pair)
• Conductor Material: Pure Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Length: 3.0 meters
• Cable Color: Orange
• Connector Type (End 1): RJ45 Male
• Connector Type (End 2): RJ45 Male
• Wiring Standard: TIA/EIA-568B
• Bandwidth: Up to 250 MHz
• Data Transfer Rate: Up to 1 Gigabit Ethernet (1000BASE-T)
• Conductor Gauge: 24 AWG
• Number of Pairs: 4 Twisted Pairs
• Cable Construction: Stranded
• Application: Network, Ethernet, LAN
• Fire Safety Standard: IEC 60332-1 (LSZH)
• Compliance: RoHS, CE
• Impedance: 100 Ohm
• Operating Temperature: -20°C to 60°C

Recommendations

For optimal performance, use this cable with CAT6 compatible devices and avoid sharp bends or kinks during installation. Ensure proper cable management to maintain signal quality.
