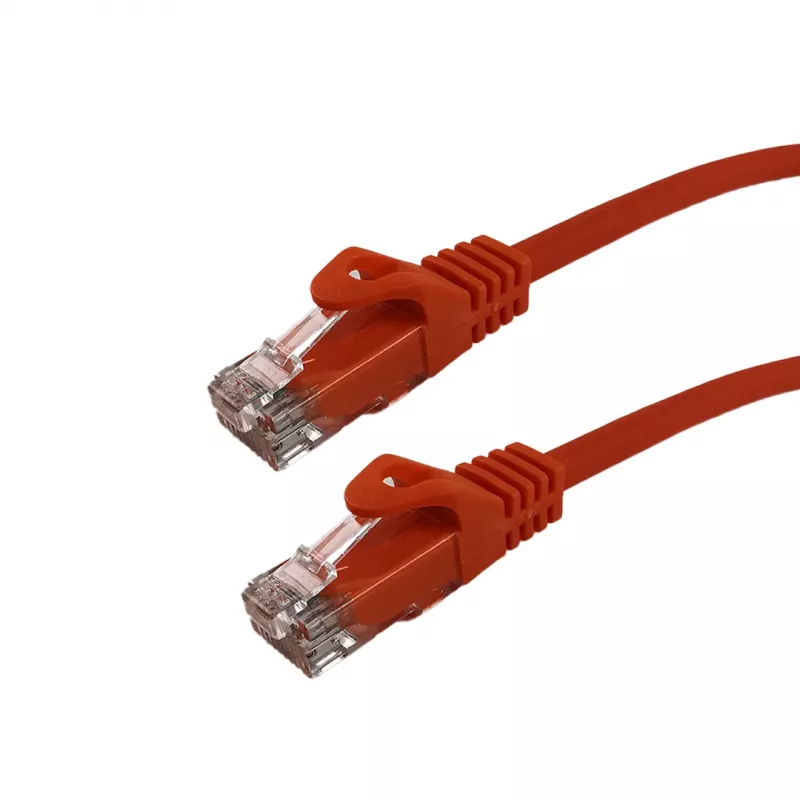

Grafenthal Cavo patch CAT6 U/UTP CU PVC 0,25m arancione

The Grafenthal Patch Cable CAT6 U/UTP CU PVC 0.25m Orange is a high-performance Ethernet patch cable designed for reliable network connections in data centers, offices, and home networks. Manufactured with pure copper conductors and U/UTP shielding, this cable ensures minimal crosstalk and supports data transfer rates up to 10 Gbps over short distances. The orange PVC jacket provides durability and easy identification, while the gold-plated RJ45 connectors guarantee optimal signal integrity.

Advantages

This patch cable offers exceptional value with its pure copper construction, ensuring superior conductivity and signal quality compared to copper-clad aluminum alternatives. The 0.25-meter length is ideal for short-distance connections between patch panels and switches, reducing cable clutter and improving airflow in racks. The orange color aids in color-coding network installations for quick identification.

Suitable for

• Ethernet network connections in LAN environments
• Data center patching between switches and patch panels
• Home network connections for routers, PCs, and gaming consoles
• VoIP phone and IP camera connections
• 10GBASE-T applications over short distances

Key specifications

• Cable Type: Patch Cable
• Cable Category: CAT6 (Category 6)
• Shielding Type: U/UTP (Unshielded Twisted Pair)
• Conductor Material: Pure Copper (CU)
• Jacket Material: PVC (Polyvinyl Chloride)
• Cable Length: 0.25 meters (25 cm)
• Cable Color: Orange
• Connector Type: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated (50µm)
• Wiring Standard: TIA/EIA 568B
• Bandwidth: Up to 250 MHz
• Data Transfer Rate: Up to 10 Gbps
• Conductor Gauge: 26 AWG
• Cable Construction: Stranded
• Jacket Diameter: Approx. 5.8 mm
• Flame Retardant: Yes (PVC)
• Compliance: RoHS, CE
• Operating Temperature: -20°C to 60°C

Recommendations

For optimal performance in 10GBASE-T networks, use this cable for connections up to 55 meters. For longer runs, consider CAT6a or higher. Always ensure connectors are fully seated to maintain signal integrity.
