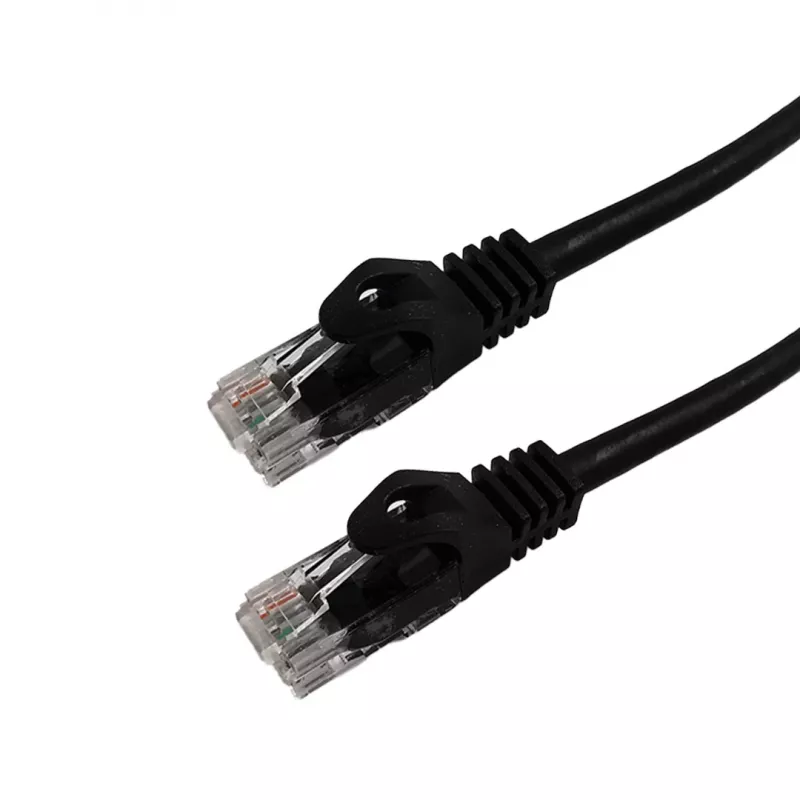

Grafenthal Cavo patch CAT6A S/FTP CU LSZH 0,50m nero

The Grafenthal Patch Cable CAT6A S/FTP CU LSZH 0.50m Black is a high-performance Ethernet patch cable designed for reliable 10 Gigabit network connections in data centers, server rooms, and office networks. With S/FTP shielding and pure copper conductors, it ensures excellent signal integrity and minimal crosstalk.

Advantages

This cable offers superior shielding against electromagnetic interference (EMI) and supports Power over Ethernet (PoE, PoE+, PoE++) for flexible device powering. The LSZH jacket provides enhanced safety in enclosed spaces by reducing toxic smoke emissions in case of fire. Stranded conductors ensure flexibility for easy routing in tight spaces.

Suitable for

• Data centers and server rooms requiring high-speed data transmission
• Office networks with high bandwidth demands
• Connecting network switches, routers, and patch panels
• Applications requiring PoE for IP cameras, VoIP phones, or wireless access points

Key specifications

• Cable Type: Ethernet Patch Cable
• Category: CAT6A (Category 6A)
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Conductor Material: Pure Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 0.50 m
• Color: Black
• Connector Type: RJ45 Male to RJ45 Male
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: Up to 500 MHz
• Conductor Gauge: 26 AWG (Stranded)
• Wiring Standard: TIA/EIA-568B
• Connector Plating: Gold-plated contacts (50µm)
• Cable Construction: Stranded conductors for flexibility
• Outer Diameter: Approx. 6.2 mm
• PoE Support: Yes (PoE, PoE+, PoE++)
• Compliance: RoHS, REACH, CE
• Operating Temperature: -20°C to +60°C

Recommendations

For optimal performance, use this cable with CAT6A compatible network equipment. Ensure proper cable management to maintain signal integrity. Ideal for short-distance connections within racks or between adjacent devices.
