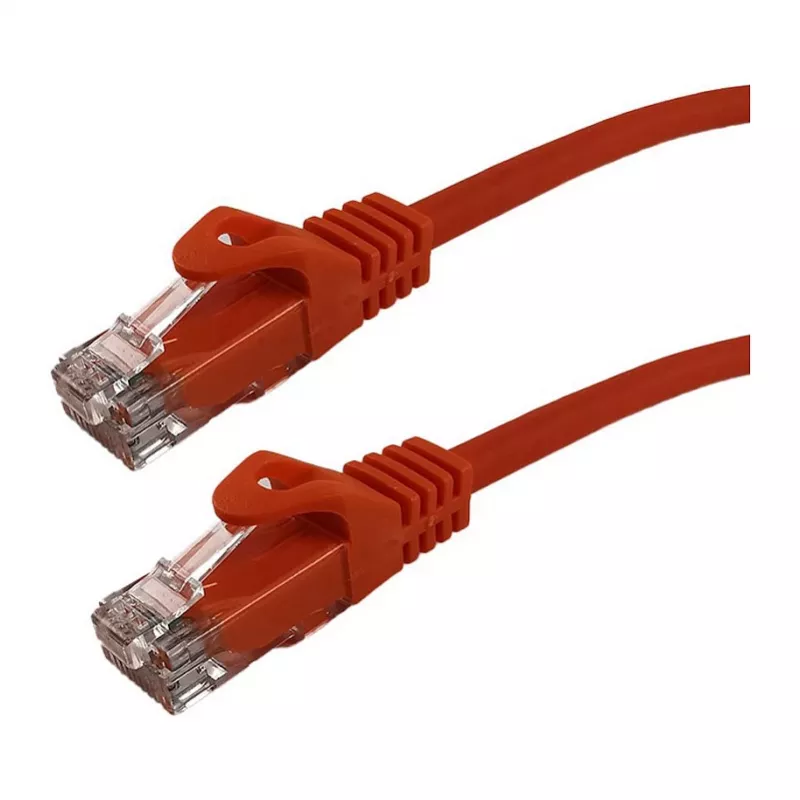

Grafenthal Cavo patch CAT6A S/FTP CU LSZH 1,00m arancione

The Grafenthal Patch Cable CAT6A S/FTP CU LSZH 1.00m Orange is a high-performance Ethernet cable designed for reliable 10 Gigabit network connections. Manufactured with 100% copper conductors and S/FTP shielding, this cable ensures minimal crosstalk and interference, making it ideal for data centers, LAN networks, and home setups. The LSZH jacket provides enhanced safety in case of fire, emitting low smoke and no halogen.

Advantages

This patch cable offers superior signal integrity and durability. The gold-plated contacts (50µm) ensure corrosion-resistant connections, while the 26AWG stranded conductors provide flexibility without compromising performance. The cable is backward compatible with Cat6, Cat5e, and Cat5 networks, ensuring seamless integration into existing infrastructures.

Suitable for

• 10 Gigabit Ethernet (10GBASE-T) networks
• Data center cabling
• Home and office LAN connections
• High-bandwidth applications such as streaming and gaming

Key specifications

• Cable Type: Patch Cable
• Ethernet Category: CAT6A
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Conductor Material: 100% Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 1.00 meter
• Color: Orange
• Connectors: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated (50µm)
• Bandwidth: Up to 500 MHz
• Wiring Standard: TIA/EIA-568B (Straight-through)
• Conductor Gauge: 26AWG
• Halogen Free: Yes
• Flame Retardancy: IEC 60332-1-2
• Certifications: RoHS, CE

Recommendations

For optimal performance, ensure that all network components (switches, routers, NICs) support CAT6A standards. This cable is suitable for use in structured cabling systems and can be used with patch panels and wall outlets.
