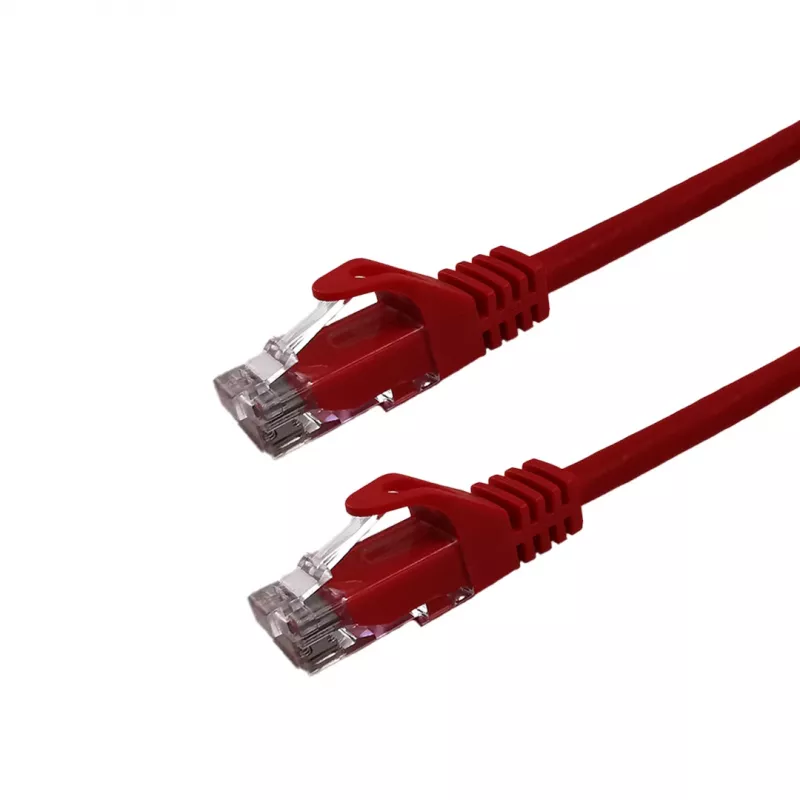

Grafenthal Cavo patch CAT6A S/FTP CU LSZH 10,00m rosso

The Grafenthal CAT6A S/FTP patch cable is a high-performance network cable designed for reliable 10 Gigabit Ethernet connections. It features pure copper conductors and S/FTP shielding for excellent signal integrity and noise protection. The LSZH jacket ensures safety in environments where low smoke and zero halogen emissions are critical.

Advantages

This cable offers superior data transfer rates up to 10 Gbps with a bandwidth of 500 MHz, making it ideal for demanding network applications. The S/FTP shielding (overall braid and foil per pair) minimizes crosstalk and electromagnetic interference. The LSZH jacket reduces toxic and corrosive gas emissions in case of fire, enhancing safety in confined spaces.

Suitable for

• Data centers and server rooms requiring high-speed, reliable connections
• Enterprise networks where signal integrity and minimal interference are crucial
• Installations in public buildings, schools, and hospitals where fire safety is a priority
• Connecting network devices such as switches, routers, and patch panels

Key specifications

• Cable Type: Ethernet Patch Cable
• Cable Category: CAT6A (Category 6a)
• Shielding Type: S/FTP (Screened/Foiled Twisted Pair)
• Conductor Material: Pure Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Length: 10.00 meters
• Cable Color: Red
• Connector Type: RJ45 Male to RJ45 Male
• Wiring Standard: TIA/EIA-568B
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: Up to 500 MHz
• Conductor Gauge: 26 AWG
• Cable Construction: Stranded
• Number of Pairs: 4 Twisted Pairs
• Impedance: 100 Ohm
• Flammability Rating: IEC 60332-1
• Operating Temperature: -20°C to +60°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure that all components in the network path support CAT6A standards. This cable is backward compatible with CAT5e and CAT6 networks.
