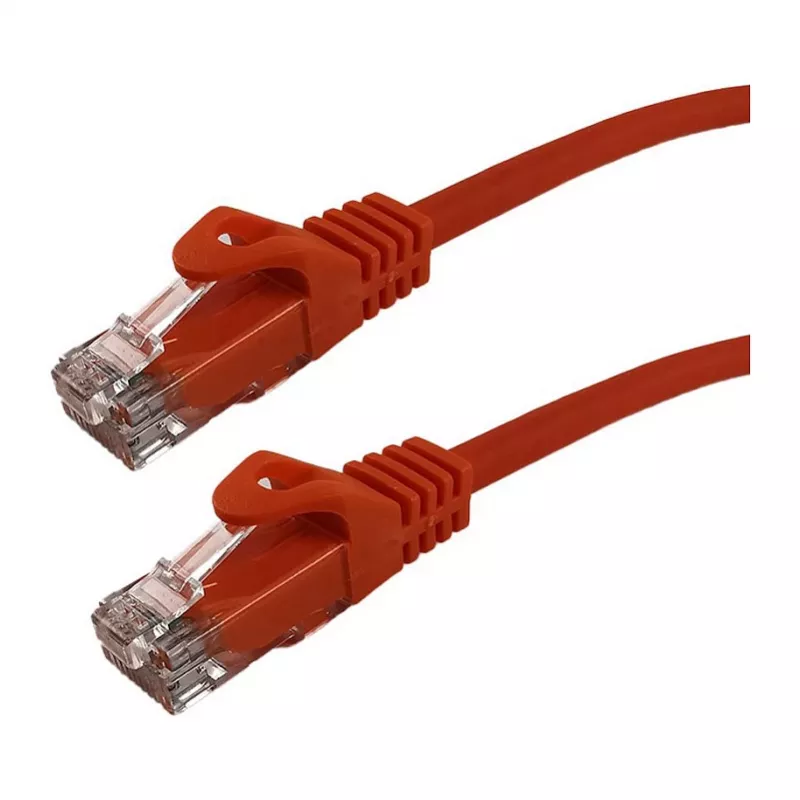

Grafenthal Cavo patch CAT6A S/FTP CU LSZH 2,00m arancione

The Grafenthal Patch Cable CAT6A S/FTP CU LSZH 2.00m Orange is a high-performance network cable designed for reliable 10 Gigabit Ethernet connections. Constructed with 100% copper conductors and S/FTP shielding, it ensures minimal crosstalk and interference, making it ideal for data centers and demanding LAN environments. The LSZH jacket provides enhanced safety in case of fire, reducing toxic smoke and halogen emissions.

Advantages

This patch cable offers superior signal integrity and data transfer rates up to 10 Gbps over 500 MHz bandwidth. The snagless molded boots protect the RJ45 connectors during installation and removal, while the stranded conductor construction (AWG 26/7) provides flexibility and durability. Gold-plated contacts ensure corrosion resistance and reliable connectivity.

Suitable for

• Data center cabling
• Enterprise network infrastructure
• High-speed LAN connections
• Power over Ethernet (PoE) applications

Key specifications

• Cable Type: Patch Cable
• Category: CAT6A
• Shielding: S/FTP
• Conductor: 100% Copper (CU)
• Jacket: LSZH
• Length: 2.00 meters
• Color: Orange
• Connectors: RJ45 Male to RJ45 Male
• Wiring Standard: TIA/EIA 568B
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Conductor Gauge: AWG 26/7 (Stranded)
• Contact Plating: Gold-plated (50µm)
• Boot Type: Snagless, molded
• Compliance: RoHS, REACH

Recommendations

For optimal performance, use with CAT6A compatible switches and patch panels. Ensure proper cable management to maintain bend radius and avoid signal degradation.
