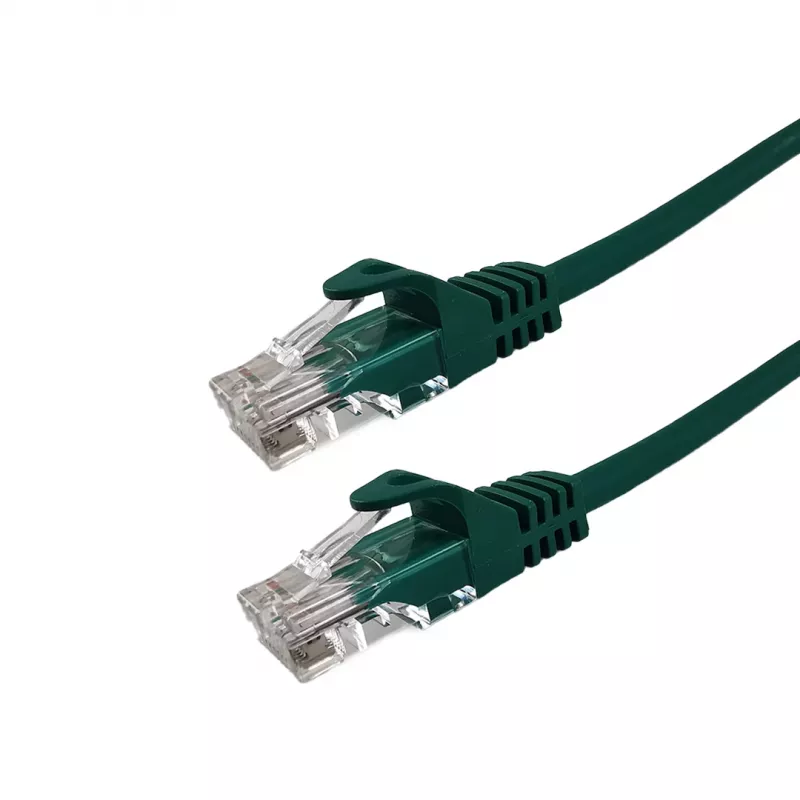

Grafenthal Cavo patch CAT6A S/FTP CU LSZH 2,00m verde

The Grafenthal Patch Cable CAT6A S/FTP CU LSZH 2.00m Green is a high-performance Ethernet cable designed for reliable 10 Gigabit network connections. With S/FTP shielding and 100% copper conductors, it ensures minimal interference and maximum data integrity. The LSZH jacket makes it safe for use in environments with strict fire safety requirements.

Advantages

This cable offers superior shielding against electromagnetic interference (EMI) and crosstalk, thanks to its S/FTP construction (overall braid and foil shielding per pair). The 26 AWG stranded copper conductors provide flexibility while maintaining excellent signal quality. Gold-plated RJ45 connectors ensure corrosion-resistant, reliable connections. The LSZH jacket reduces toxic smoke in case of fire, making it ideal for public and commercial buildings.

Suitable for

• Data center and server room cabling
• Enterprise network infrastructure
• 10GBASE-T Ethernet networks
• Power over Ethernet (PoE) applications
• High-speed home or office networks

Key specifications

• Cable Type: Patch Cable
• Ethernet Category: CAT6A (Category 6A)
• Shielding Type: S/FTP (Screened/Foiled Twisted Pair)
• Conductor Material: 100% Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Length: 2.00 meters
• Cable Color: Green
• Connector Type: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated contacts
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: 500 MHz
• Conductor Gauge: 26 AWG
• Cable Construction: Stranded
• Wiring Standard: TIA/EIA 568B
• Fire Safety Standard: IEC 60332-1 (LSZH compliant)
• Compliance: RoHS, CE
• Impedance: 100 Ohm
• Operating Temperature: -20°C to 60°C

Recommendations

For optimal performance, use this cable with CAT6A compatible network equipment. Ensure proper cable management to avoid kinking or sharp bends. This cable supports PoE and PoE+ applications, making it versatile for powering devices such as IP cameras and wireless access points.
