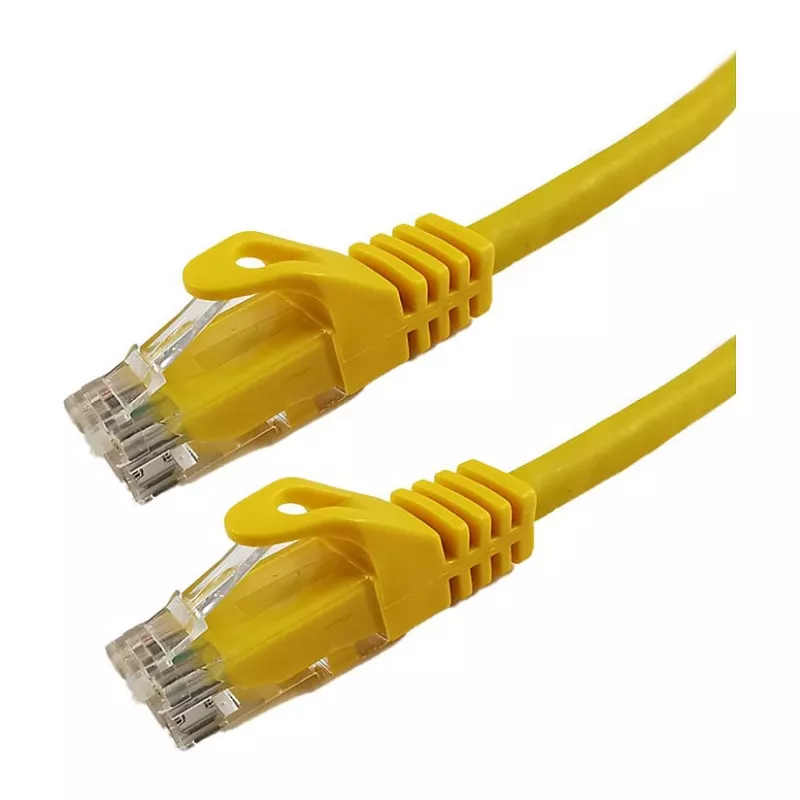

Grafenthal Cavo patch Cat6a U/UTP CU LSZH 0,25m giallo

The Grafenthal Patch Cable Cat6a U/UTP CU LSZH 0.25m Yellow is a high-performance network cable designed for reliable 10 Gigabit Ethernet connections in data centers and LAN environments. Manufactured with 100% copper conductors and a low smoke zero halogen (LSZH) jacket, it ensures safety and signal integrity.

Advantages

This patch cable offers superior data transfer rates up to 10 Gbps with a bandwidth of 500 MHz, making it ideal for demanding network applications. The snagless boot design protects the RJ45 connectors during installation and removal, while the U/UTP shielding minimizes electromagnetic interference. Its compact 0.25-meter length is perfect for short-distance connections in patch panels or switches.

Suitable for

• Data center cabling
• Enterprise network infrastructure
• Home office setups requiring high-speed connectivity
• PoE (Power over Ethernet) applications

Key specifications

• Cable Type: Patch Cable
• Category: Cat6a
• Shielding: U/UTP (Unshielded Twisted Pair)
• Conductor Material: 100% Copper (Cu)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 0.25 m
• Colour: Yellow
• Connectors: RJ45 Male to RJ45 Male
• Wiring Standard: TIA/EIA-568B
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: 500 MHz
• Conductor Gauge: 26 AWG
• Outer Diameter: Approx. 6.0 - 6.5 mm
• Boot Type: Snagless
• Number of Pairs: 4
• Compliance: RoHS, CE

Recommendations

For optimal performance, pair this cable with Cat6a compatible switches and network cards. Ensure proper cable management to avoid kinking or sharp bends. Suitable for use in structured cabling systems requiring high bandwidth and low latency.
