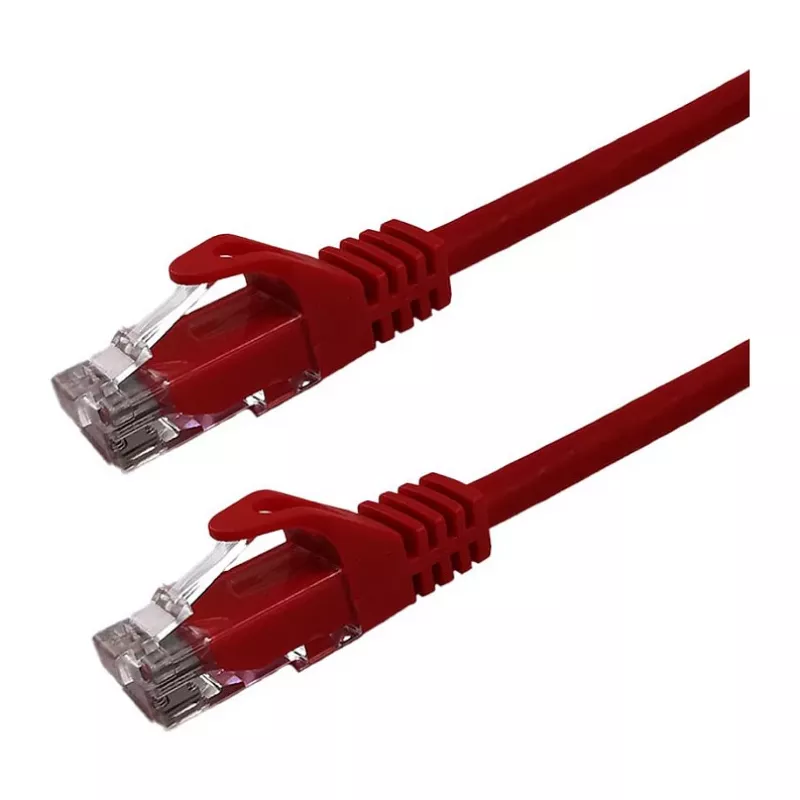

Grafenthal Cavo patch Cat6a U/UTP CU LSZH 0,25m rosso

The Grafenthal Patch Cable Cat6a U/UTP CU LSZH 0.25m Red is a high-performance Ethernet patch cable designed for reliable 10 Gigabit network connections. Manufactured with 100% copper conductors and a low smoke zero halogen (LSZH) jacket, it ensures safety and signal integrity in data centers, server rooms, and home networks.

Advantages

This cable offers superior data transfer rates up to 10 Gbps with a bandwidth of 500 MHz, making it ideal for bandwidth-intensive applications. The U/UTP (unshielded twisted pair) design reduces crosstalk and interference, while the LSZH jacket minimizes toxic smoke in case of fire, enhancing safety in enclosed spaces.

Suitable for

• Data centers and server rooms requiring high-speed, reliable connections
• Home networks for streaming, gaming, and large file transfers
• Office environments where safety and performance are critical

Key specifications

• Cable Type: Ethernet Patch Cable
• Cable Category: Cat6a (Category 6a)
• Shielding Type: U/UTP (Unshielded Twisted Pair)
• Conductor Material: 100% Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 0.25 meters (25 cm)
• Color: Red
• Connector Type: RJ45 Male to RJ45 Male
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: Up to 500 MHz
• Wiring Standard: TIA/EIA-568B
• Conductor Gauge: 26 AWG
• Cable Construction: Stranded
• Connector Plating: Gold-plated contacts
• Impedance: 100 Ohm
• Compliance: RoHS, CE
• Fire Safety Standard: IEC 60332-1
• Operating Temperature: -20°C to 60°C

Recommendations

For optimal performance, use with Cat6a compatible network equipment. Ensure proper cable management to avoid kinking or sharp bends.
