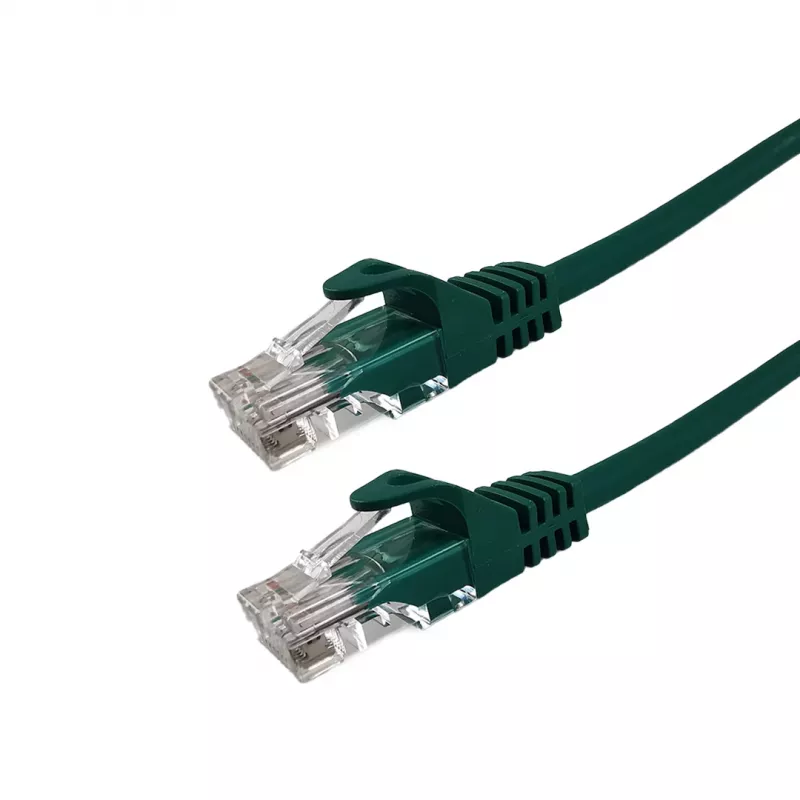

Grafenthal Cavo patch CAT6A U/UTP CU LSZH 0,50M verde

The Grafenthal Patch Cable CAT6A U/UTP CU LSZH 0.50M Green is a high-performance Ethernet patch cable designed for reliable 10 Gigabit network connections. Manufactured with pure copper conductors and a low smoke zero halogen jacket, this cable ensures both excellent signal integrity and safety in enclosed spaces. Its 0.5-meter length is ideal for short patch panel to switch connections in data centers or server rooms.

Advantages

This CAT6A cable supports data transfer rates up to 10 Gbps over the full 500 MHz bandwidth, making it future-proof for high-speed networks. The U/UTP (unshielded twisted pair) design reduces crosstalk and interference, while the LSZH jacket minimizes toxic smoke and fumes in case of fire, complying with strict safety standards. Gold-plated RJ45 connectors ensure corrosion-resistant, reliable connections.

Suitable for

• Data center patching between patch panels and switches
• Home or office network connections requiring high-speed data transfer
• 10GBASE-T applications in LAN environments
• Installations where low smoke and halogen-free materials are required

Key specifications

• Ethernet Category: CAT6A (Category 6a)
• Shielding Type: U/UTP (Unshielded Twisted Pair)
• Conductor Material: Pure Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 0.5 meters
• Colour: Green
• Connector Type: RJ45 Male to RJ45 Male
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Conductor Gauge: 26 AWG
• Wiring Standard: TIA/EIA-568-B.2 (T568B)
• Connector Plating: Gold-plated contacts
• Flame Retardancy: IEC 60332-1
• Halogen Free: Yes
• Operating Temperature: -20°C to 60°C

Recommendations

For optimal performance, use this cable with CAT6A compatible network equipment. Ensure proper cable management to avoid sharp bends and maintain signal quality.
