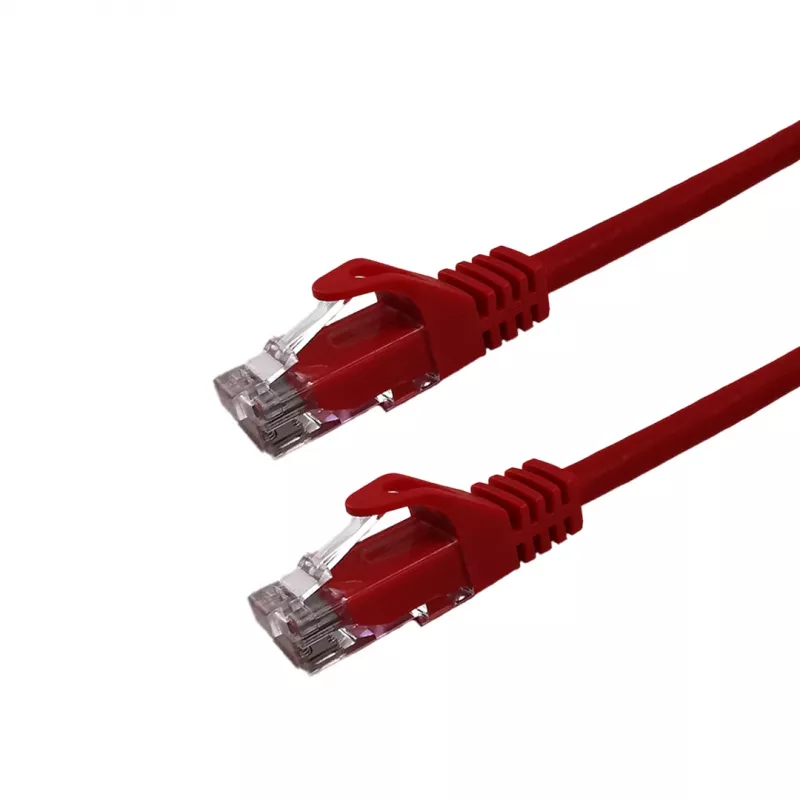

Grafenthal Cavo patch CAT6A U/UTP CU LSZH 1,00m rosso

The Grafenthal Patch Cable CAT6A U/UTP CU LSZH 1.00m Red is a high-performance Ethernet patch cable designed for reliable 10 Gigabit network connections. Manufactured with 100% copper conductors and a low smoke zero halogen (LSZH) jacket, it ensures safety and durability in any environment.

Advantages

This cable supports data transfer rates up to 10 Gbps and a bandwidth of 500 MHz, making it ideal for demanding network applications. The U/UTP shielding reduces electromagnetic interference, while the gold-plated contacts ensure optimal conductivity and corrosion resistance. The LSZH jacket minimizes toxic smoke in case of fire, making it suitable for public and industrial areas.

Suitable for

• Data centers and server rooms
• Office networks
• Home networking setups
• PoE applications (Power over Ethernet)

Key specifications

• Cable type: Ethernet Patch Cable
• Category: CAT6A
• Shielding: U/UTP (Unshielded Twisted Pair)
• Conductor material: 100% Copper (CU)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Length: 1.0 meter
• Color: Red
• Connector type: RJ45 Male to RJ45 Male
• Data transfer rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Wiring standard: TIA/EIA-568B
• Conductor gauge: 26 AWG
• Number of pairs: 4 twisted pairs
• Connector plating: Gold-plated contacts
• Impedance: 100 Ohm
• Operating temperature: -20°C to 60°C
• Outer diameter: Approx. 6.0 mm
• Flame retardancy: IEC 60332-1
• Compliance: RoHS, CE

Recommendations

For optimal performance, use this cable with CAT6A compatible network devices. Ensure proper cable management to avoid kinking or sharp bends. Suitable for both indoor and protected outdoor installations.
