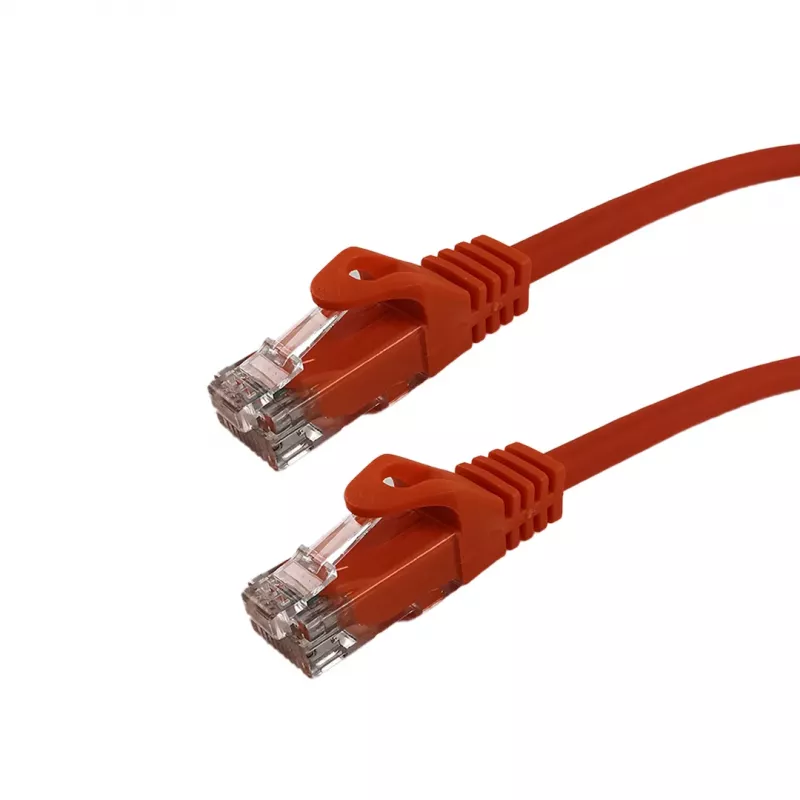

Grafenthal cavo patch Ethernet CAT6 U/UTP LSZH 0,5m arancione

The Grafenthal CAT6 U/UTP LSZH Ethernet Patch Cable is a high-performance network cable designed for reliable data transmission in professional environments. With a length of 0.5 meters and an orange jacket, this cable is ideal for short-distance connections between network devices such as switches, routers, and patch panels.

Advantages

This patch cable features pure copper conductors and LSZH (Low Smoke Zero Halogen) jacket material, ensuring excellent signal integrity and safety in case of fire. The gold-plated RJ45 connectors provide corrosion resistance and optimal conductivity, supporting data transfer rates up to 10 Gbps.

Suitable for

• Data center and server room cabling
• Home and office network connections
• Short-distance Ethernet links
• 10GBASE-T networks

Key specifications

• Cable Category: CAT6
• Shielding: U/UTP (Unshielded Twisted Pair)
• Conductor Material: Pure Copper (CU)
• Jacket Material: LSZH
• Length: 0.5 m
• Color: Orange
• Connector Type: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated (50 micron)
• Wiring Standard: TIA/EIA-568B
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: Up to 250 MHz
• Conductor Gauge: 26 AWG
• Number of Conductors: 8 (4 twisted pairs)
• Fire Safety Standard: IEC 60332-1
• Backward Compatibility: CAT5e, CAT5
• Certifications: RoHS, CE

Recommendations

For optimal performance, use this cable with CAT6 compatible devices and avoid sharp bends or kinks during installation. The LSZH jacket makes it suitable for use in public areas and enclosed spaces where smoke and toxicity are a concern.
