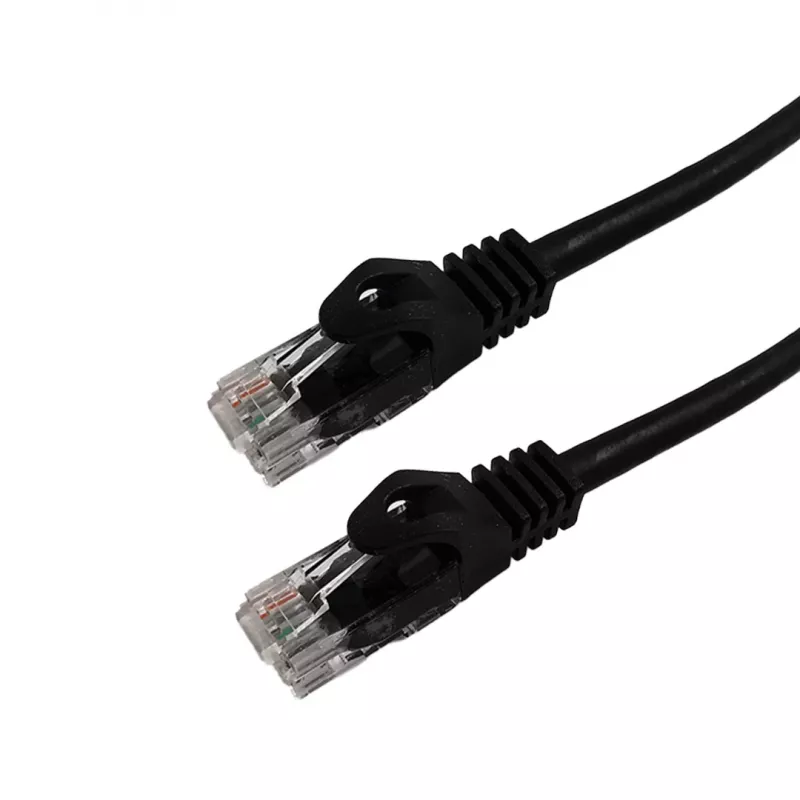

Grafenthal Cavo patch Ethernet CAT6A U/UTP LSZH 1,5m nero

The Grafenthal CAT6A U/UTP LSZH Ethernet Patch Cable is a high-performance networking solution designed for reliable 10 Gigabit Ethernet connections. With a length of 1.5 meters and a sleek black jacket, this cable is ideal for data centers, home networks, and LAN applications. It features 100% bare copper conductors and LSZH (Low Smoke Zero Halogen) jacket material, ensuring safety and durability.

Advantages

This patch cable offers superior signal integrity and reduced crosstalk thanks to its U/UTP (Unshielded Twisted Pair) design and 26 AWG stranded copper conductors. The LSZH jacket minimizes toxic smoke and fumes in case of fire, making it suitable for enclosed spaces. Gold-plated contacts (50 micron) ensure corrosion resistance and optimal conductivity.

Suitable for

• Local Area Networks (LAN)
• Data Centers
• Home Networks
• Server rooms and office environments

Key specifications

• Cable Type: Ethernet Patch Cable
• Cable Category: CAT6A (Category 6a)
• Shielding Type: U/UTP (Unshielded Twisted Pair)
• Conductor Material: 100% Bare Copper
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Length: 1.5 meters
• Cable Color: Black
• Connector Type: RJ45 Male to RJ45 Male
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: Up to 500 MHz
• Conductor Gauge: 26 AWG (Stranded)
• Wiring Standard: TIA/EIA-568-B.2-10 (T568B)
• Connector Plating: Gold-plated contacts (50 micron)
• Cable Construction: Stranded Copper Conductors
• Number of Pairs: 4 Twisted Pairs
• Flammability Rating: LSZH (Low Smoke Zero Halogen)
• Impedance: 100 Ohm
• Operating Temperature: -20°C to 60°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, use this cable with CAT6A compatible switches and network devices. Ensure proper cable management to avoid kinking or sharp bends. This cable is not recommended for outdoor use.
