Stazione di ricarica per veicoli elettrici Green Cell EV14 22 kW nero alluminio a parete

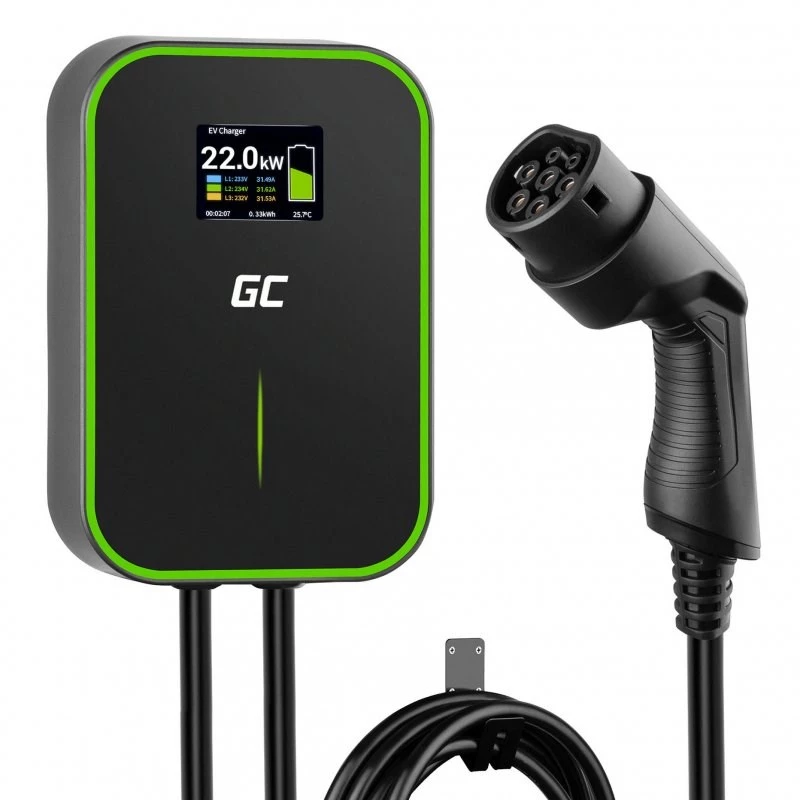

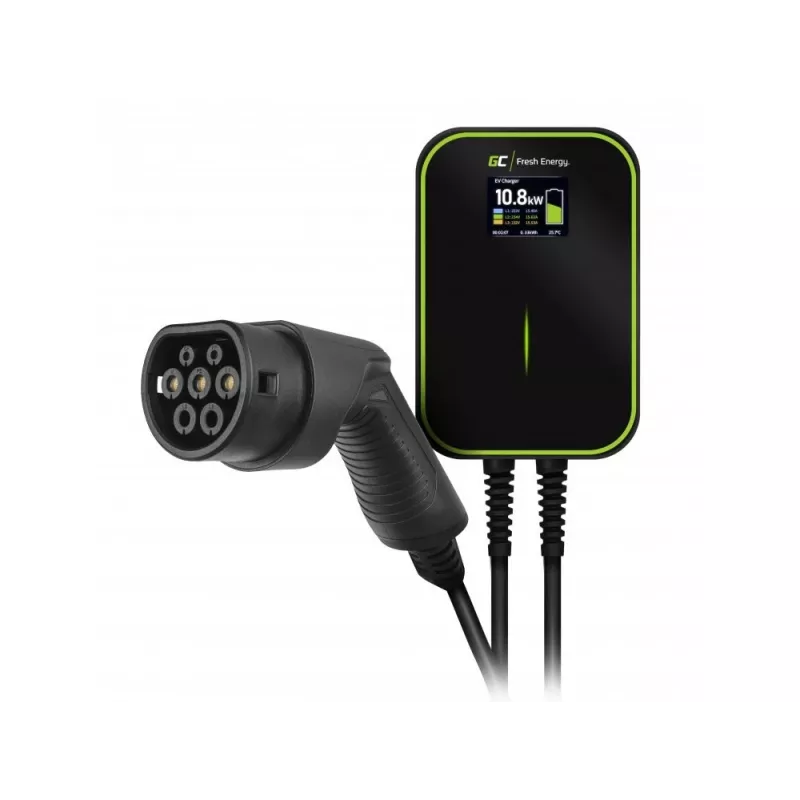

GC EV PowerBox by Green Cell is a wall-mounted electric vehicle charging station with a slim black aluminium housing, an integrated Type 2 cable and an LCD screen that displays key charging parameters. The unit supports three-phase 380 V input and delivers up to 22 kW of AC charging power, and its IP66-rated enclosure makes it suitable for outdoor installation.

Advantages

The charger provides up to 22 kW AC charging power for significantly faster charging compared with lower-power home chargers. An integrated Type 2 cable ensures compatibility with most electric cars and plug-in hybrids. The aluminium housing offers durability and protection against dust and heavy rain thanks to the IP66 rating. Built-in electronics continuously monitor charging parameters, and the LCD display gives clear access to current charge status and settings.

Suitable for

• Home garage or private driveway wall mounting
• Businesses or small fleets needing reliable AC charging
• Owners of electric cars and plug-in hybrids with Type 2 inlet
• Outdoor installations where IP66-rated protection is required

Key specifications

• Maximum AC output power: 22 kW
• Input voltage: three-phase 380 V

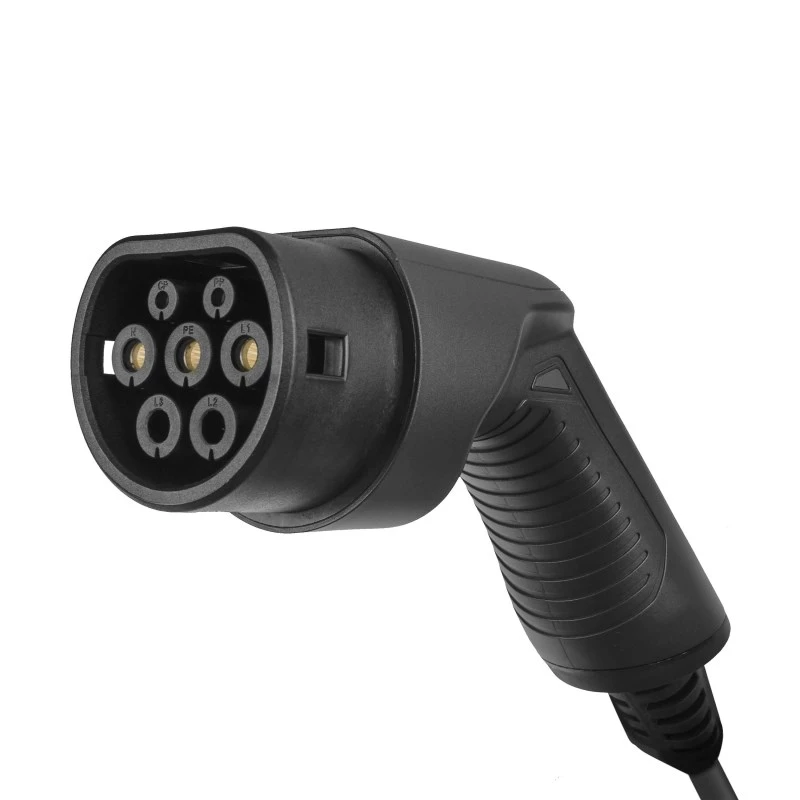

• Integrated charging cable: Type 2 connector, 5 m length
• Housing material: aluminium
• Display: LCD for monitoring charging parameters
• Ingress protection: IP66 (dust-tight and protected against heavy jets of water)

How to use

Mount the charging station on a suitable wall according to local electrical regulations and have the unit connected by a qualified electrician to a three-phase supply. Plug the integrated Type 2 connector into the vehicle inlet, check the LCD for charging status and start the session using the vehicle or station controls as applicable. Monitor the displayed parameters during charging; the charger’s electronics will regulate power and protect against abnormal conditions.

Recommendations

For safe and reliable operation, install the station in accordance with national electrical codes and use a certified electrician for wiring. Regularly inspect the Type 2 cable and connector for damage and keep the LCD and enclosure clean. Use the charger with vehicles and plug-in hybrids that support Type 2 charging to ensure compatibility and optimal charging speed.
