Grenton Smart Panel 4 Touch Fields OLED TF-Bus display vetro frontale bianco

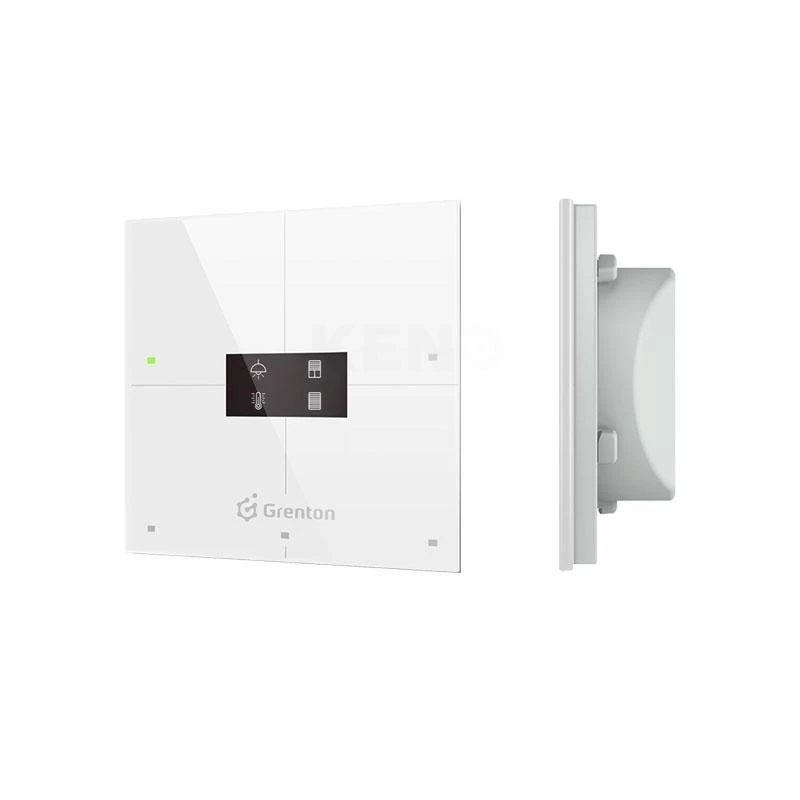

The Grenton Smart Panel SPS-204-T-02 is a sophisticated touch control interface designed for the Grenton Smart Home System. Featuring 4 touch fields with an OLED monochromatic graphic display, this wall-mounted panel offers intuitive control over your smart home environment. The white tempered glass front provides a sleek, modern aesthetic that blends seamlessly with any interior.

Advantages

This smart panel combines elegant design with advanced functionality. The OLED display delivers clear, high-contrast information, while the haptic vibration feedback ensures tactile confirmation of your inputs. Integrated proximity and ambient light sensors automatically adjust the display brightness and wake the panel as you approach, enhancing user experience and energy efficiency.

Suitable for

• Smart home control and automation
• Lighting, shading, and climate control
• Scene activation and device monitoring
• Residential and commercial installations

Key specifications

• 4 touch fields with OLED monochromatic graphic display
• Communication via Grenton TF-Bus (12V DC, max 1W)
• White tempered glass front panel
• Wall-mounted, compatible with standard 60mm round electrical box
• Integrated proximity and ambient light sensors
• Haptic vibration feedback
• Operating temperature: 0°C to +50°C
• Operating humidity: 5% to 90% RH (non-condensing)
• IP20 rating
• Fully configurable via Grenton Manager software
• Over-the-air (OTA) firmware updates

Recommendations

For optimal performance, ensure the panel is connected to a Grenton TF-Bus network and configured using the latest version of Grenton Manager. The panel should be installed by a qualified electrician in a dry indoor location.
