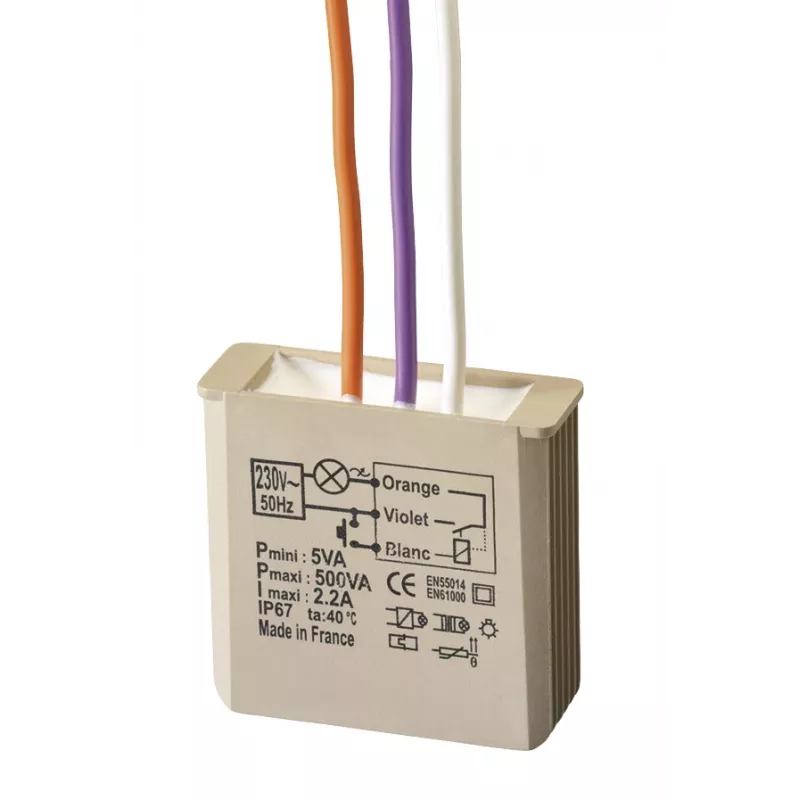

GROTHE relè a impulso da incasso 230V AC 3-500W pulsante MTR500E 5454050

Impulse relay for flush-mounted installation, controlled by a push button and capable of switching loads from 3 to 500 W at 230 V AC. The electronic switching principle operates silently and has a standby loss below 0.5 W.

Advantages

Silent electronic switching, low standby loss, compact flush-mounted design with an installation depth of approximately 18 mm.

Suitable for

• Incandescent and halogen lamps
• Dimmable LED lamps
• Compact fluorescent lamps

Key specifications

• Operating voltage: 230 V AC
• Switching capacity: 3–500 W (incandescent/halogen), 3–200 W (LED/CFL)
• Maximum switching current: 2.2 A
• 1 normally open contact
• Electronic overload protection
• Ambient temperature range: -20 °C to +50 °C

Recommendations

Use an external fuse for short-circuit protection. Suitable for flush-mounted boxes with sufficient depth.
