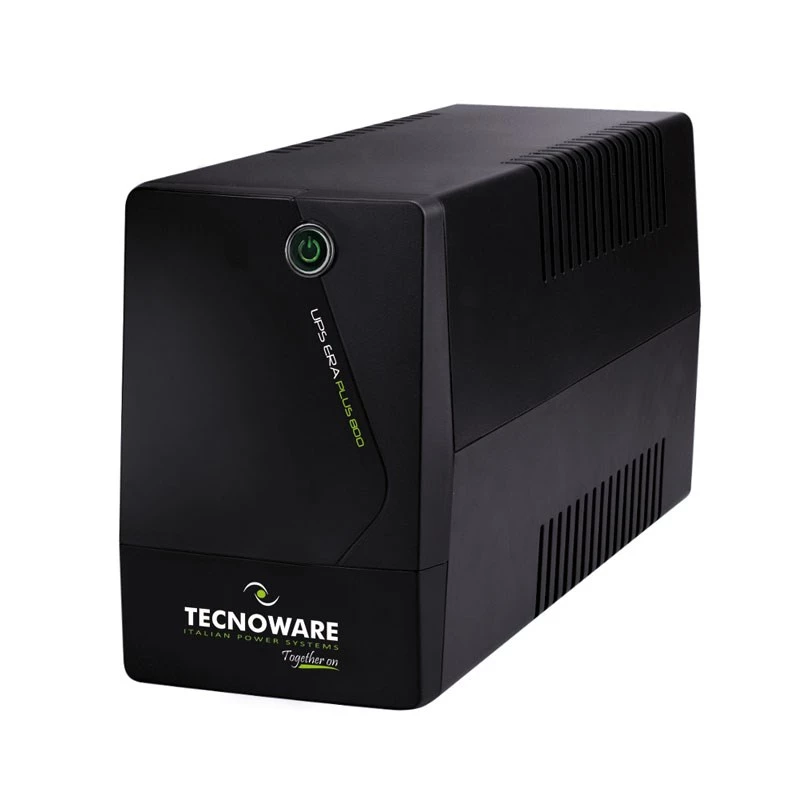

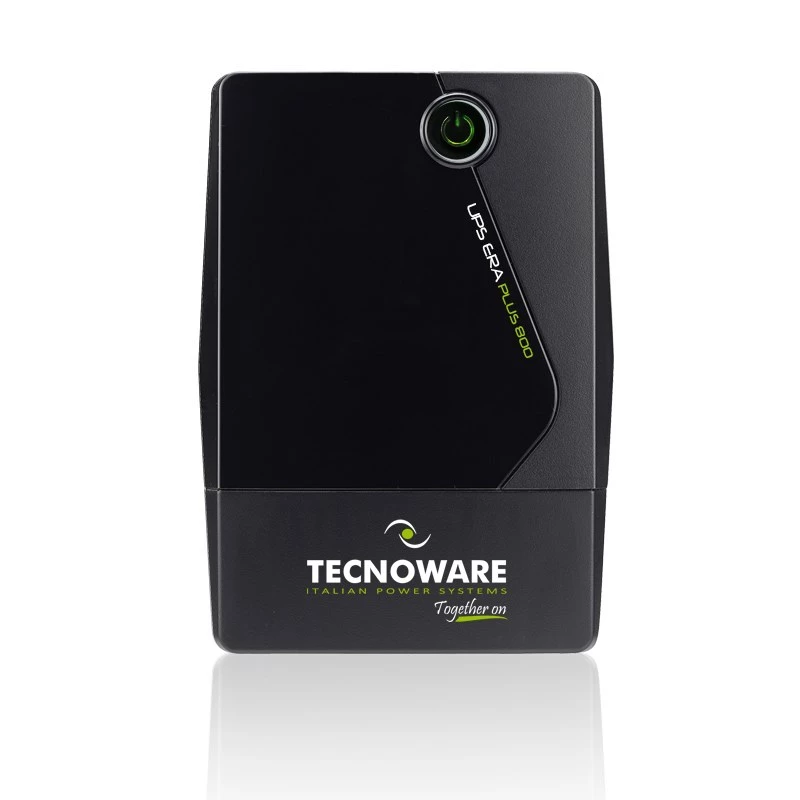

Gruppo di continuità Tecnoware Era Plus 800

The Tecnoware Era Plus 800 is a Line-Interactive uninterruptible power supply (UPS) designed to protect small office and home equipment from power interruptions, overvoltages and undervoltages. It includes an internal 12V 7Ah sealed lead-acid battery and provides up to 0.8 kVA (560 W) of output power through two SCHUKO-protected outlets. The compact unit measures approximately 10 x 14 x 28 cm and operates silently.

Advantages

Era Plus 800 offers automatic voltage regulation based on Line Interactive Plus technology, built-in audible alarm and multifunction LED status indicator, and hardware protection for connected devices. Its sealed battery technology reduces maintenance requirements and the small footprint makes it suitable for limited-space installations.

Suitable for

• PC and office workstations
• DVR systems for video surveillance
• ADSL or fiber modem and router units
• Cash registers and POS equipment

Key specifications

• Model: Tecnoware Era Plus 800 (FGCERAPL802SCH, EAN 8026475175755)
• Topology: Line-Interactive Plus
• Output capacity: 0.8 kVA / 560 W
• Battery: 12 V, 7 Ah sealed lead-acid (VRLA)

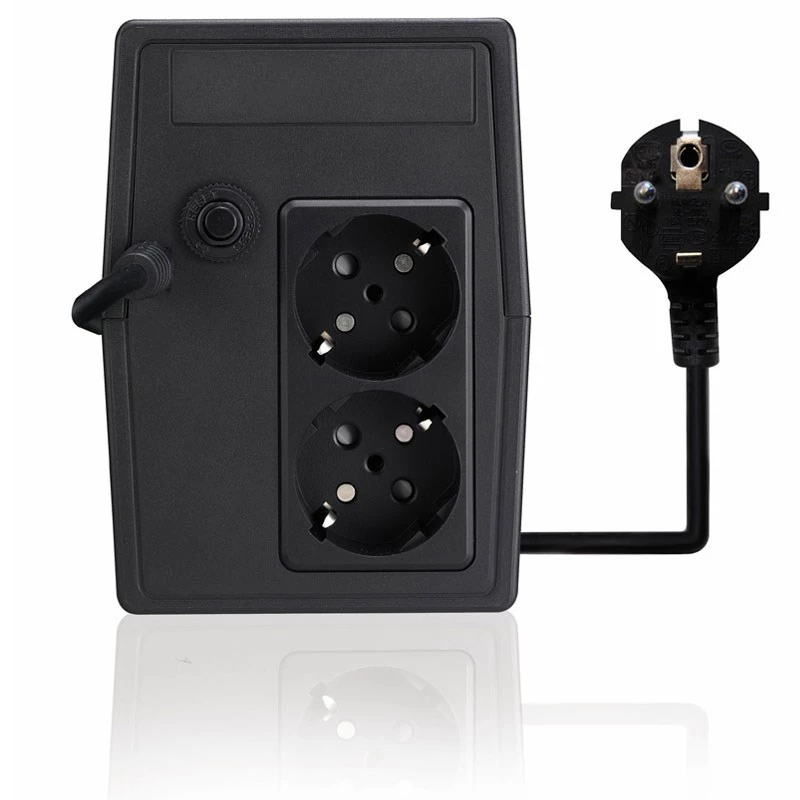

• Outlets: 2 SCHUKO protected sockets
• Dimensions: 10 x 14 x 28 cm
• Weight: 3.9 kg
• Certifications: CE

How to use

Place the UPS on a stable, ventilated surface and connect your devices to the two SCHUKO outputs. Plug the UPS input cable into a grounded mains socket. Switch the unit on using the On-Off button; the multifunction LED and audible alarm will indicate operational status. In the event of mains failure, the UPS will automatically supply battery power to connected equipment. Follow the manufacturer’s instructions for battery replacement and disposal.

Recommendations

For reliable backup time, conserve battery capacity by connecting only essential devices. Avoid overloading the UPS beyond its 560 W output rating and ensure regular battery checks if the unit is used as primary backup for critical equipment.
