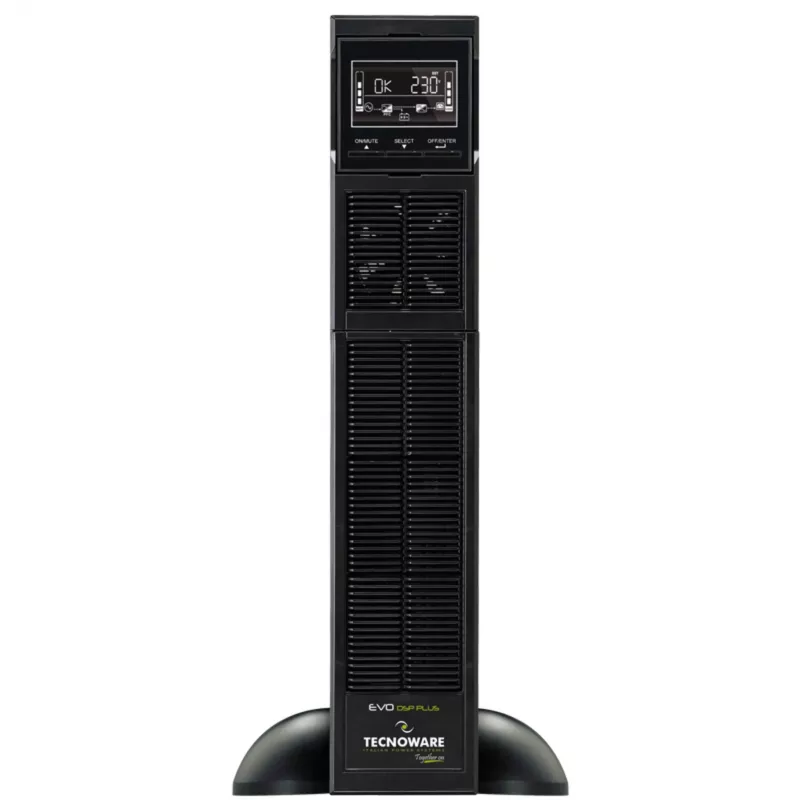

TECNOWARE UPS EVO DSP PLUS 3600 RACK / TOWER IEC 3600VA 3600W UPS online a doppia conversione

The TECNOWARE UPS EVO DSP PLUS 3600 RACK / TOWER IEC is a high-performance online double conversion UPS designed for critical power protection in data centers, server rooms, and network infrastructure. With 3600VA / 3600W capacity and a unity power factor of 1.0, it delivers maximum efficiency and reliability. Its rack/tower convertible 2U form factor allows flexible installation in 19-inch racks or as a standalone tower.

Advantages

True online double conversion topology ensures zero transfer time and clean, stable power output. The pure sine wave output protects sensitive equipment from harmonics and surges. High efficiency up to 94% reduces energy costs and heat generation. The intelligent LCD display provides real-time status monitoring. USB, RS232, and Smart Slot communication ports enable remote management via SNMP or software.

Suitable for

• Servers and storage systems
• Network switches and routers
• Telecommunications equipment
• Medical devices and industrial controls
• Any critical load requiring uninterrupted power

Key specifications

• UPS Topology: Online Double Conversion
• Apparent Power: 3600 VA
• Active Power: 3600 W
• Output Power Factor: 1.0
• Form Factor: Rack/Tower Convertible 2U
• Input Voltage: 230V AC (range 184-276V)
• Output Voltage: 230V AC (selectable 220/240V)
• Output Waveform: Pure Sine Wave
• Input Connection: 1x IEC 320 C20
• Output Connections: 8x IEC 320 C13, 1x IEC 320 C19
• Battery Type: VRLA AGM Maintenance-Free
• Runtime (Full Load): 5 minutes
• Runtime (Half Load): 15 minutes
• Recharge Time: 2-4 hours to 90%
• Communication Ports: USB, RS232, Smart Slot
• Display: LCD
• Noise Level: <48 dBA
• Efficiency: Up to 94%

Recommendations

For optimal performance, install in a well-ventilated environment and connect only critical loads. Use the included cables and manual for setup. Consider the Smart Slot for network management.
