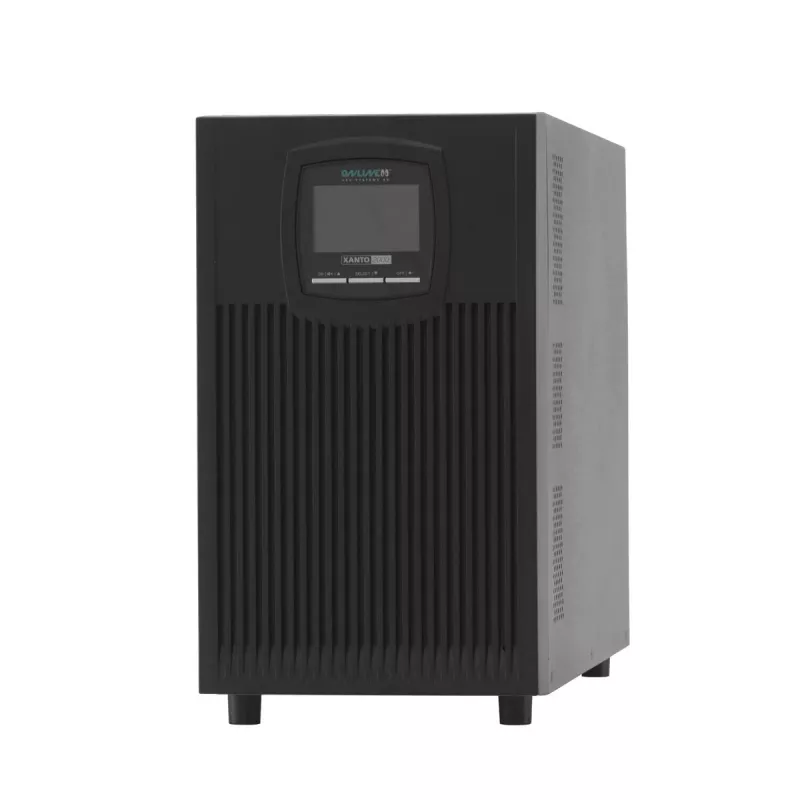

Gruppo di continuità UPS ONLINE USV-Systeme XANTO 2000

The ONLINE USV-Systeme XANTO 2000 is a double-conversion (online) uninterruptible power supply with 2 kVA / 2000 W output power, designed to protect servers, switchgear, controlgear and sensitive IT equipment from power failures, voltage fluctuations and harmonic distortions. The UPS provides eight AC outlets (C13), a USB interface, active cooling and a tower/rack-tower convertible form factor. It is certified to VFI-SS-111, EN62040-1, EN62040-2 and CE standards and includes battery management, optional SNMP communication and DataWatch monitoring software.

Advantages

XANTO 2000 uses double-conversion technology to fully decouple connected devices from the mains and ensures an uninterrupted transition to battery in the event of power loss. Its Dynamic Power Technology (DPT) adapts output power to the load and can deliver up to the UPS nominal active power (watts = VA), allowing more available wattage compared with many conventional UPS systems. The unit offers high efficiency (up to 97%), scalable autonomy with optional external battery packs, battery deep-discharge protection, cold-start capability and switchable output sockets for load shedding without additional software.

Suitable for

• Protecting small servers and network equipment
• Backup for workstations and sensitive IT devices
• Short-term power support for controlgear and switch cabinets
• Environments requiring rack or tower installation

Key specifications

• Output power: 2000 W
• Apparent power: 2 kVA
• Battery capacity (internal): 9 Ah; typical backup ~6 minutes at full load

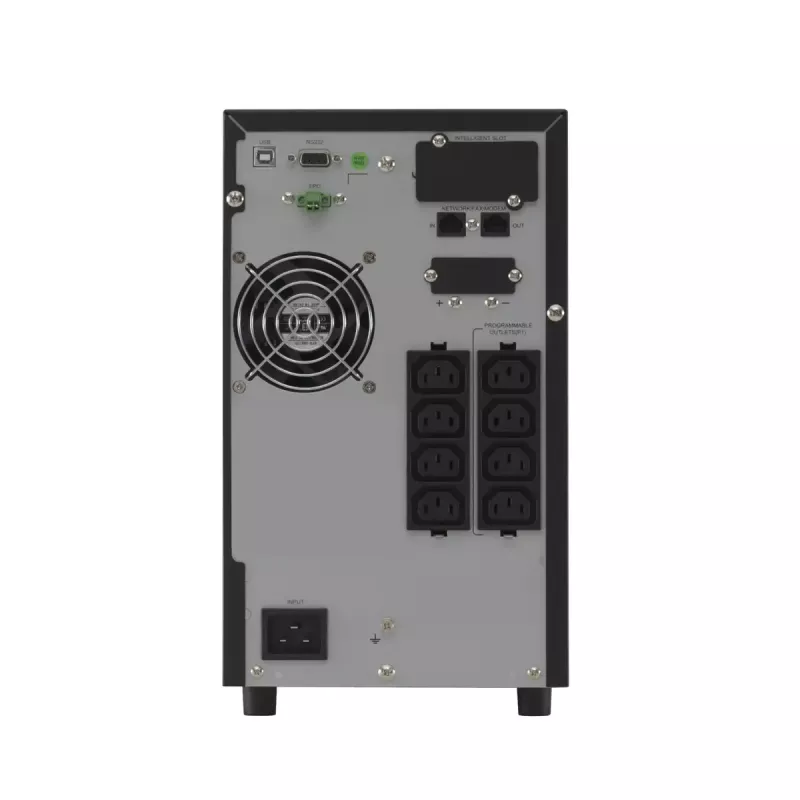

• AC outlets: 8 × C13
• USB interface: 1 × USB 2.0; RS-232 available for management
• Form factor: Tower or 2U rack-tower convertible
• Weight: 20.3 kg
• Certifications: VFI-SS-111, EN62040-1, EN62040-2, CE

How to use

Install the XANTO 2000 as a tower or mount it in a 19" rack using the supplied 19" angle bracket and rotate the display for horizontal reading if required. Connect critical devices to the C13 outlets and attach the UPS to a mains supply. Configure shutdown and monitoring via the included DataWatch software over RS-232 or USB, or add the optional SNMP adapter for remote management and multiserver shutdown. To extend runtime, connect supported external battery packs (up to seven additional packs on models 1000 and higher). Enable battery deep-discharge protection and set parameters via the UPS menu or DataWatch.

Recommendations

For maximum service life and reliable backup time, place the UPS in a ventilated location, avoid exposure to direct heat sources, test the UPS and battery periodically using the built-in functions or DataWatch, and consider external battery packs when longer runtime is required for shutdown of servers or large databases.
