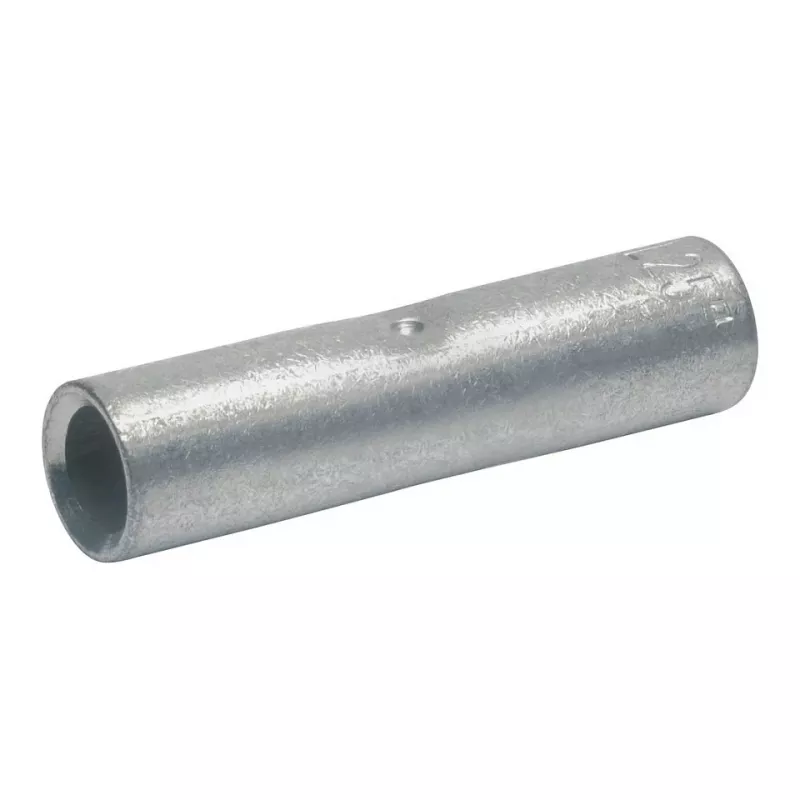

Klauke 27R Connettore a compressione per tubi per conduttore in rame da 70 mm², stagnato, lunghezza 60 mm

Secure, low-resistance connections for 70 mm² copper conductors demand a connector that maintains integrity under mechanical stress and thermal cycling. The Klauke 27R tube crimp connector answers that need with a robust, tinned electrolytic copper design, engineered for reliable hexagonal crimping and long-term performance in low-voltage applications.

Who is it for

Electricians, panel builders, and maintenance technicians working with power distribution, grounding systems, or industrial machinery will find the 27R indispensable. It suits professionals who require a dependable, corrosion-resistant connection for solid or stranded copper conductors without insulation.

Main features

• High-purity electrolytic copper (E-Cu) with galvanic tin plating for excellent conductivity and corrosion resistance.
• Designed for 70 mm² copper conductors, with a built-in conductor stop for accurate insertion.
• Hexagonal crimping profile ensures a uniform, gas-tight connection when used with recommended Klauke tools.

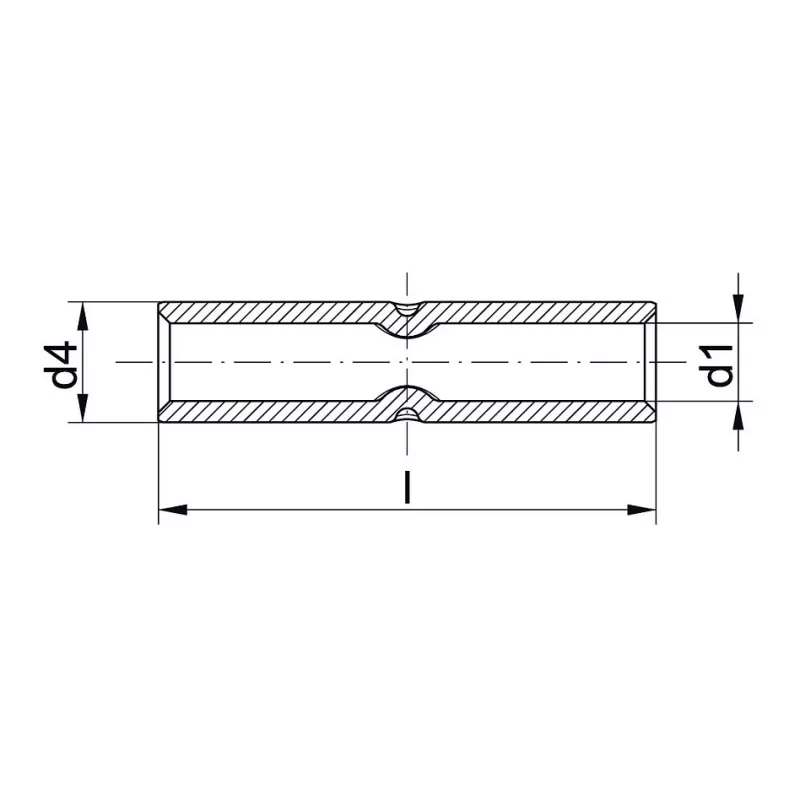

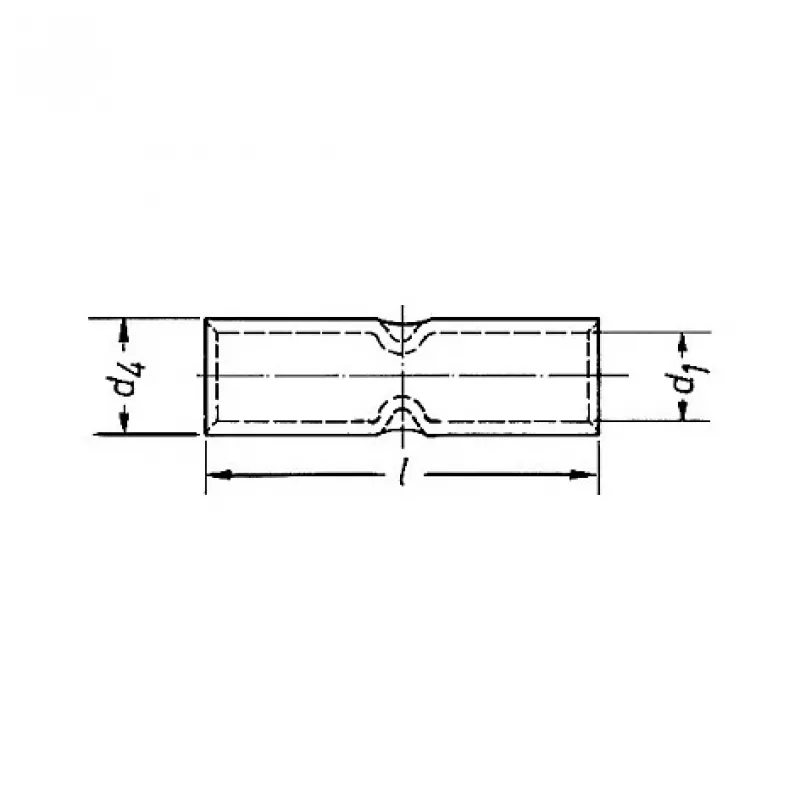

• Compact 60 mm length with 11.5 mm inner diameter and 15 mm outer diameter, suitable for tight spaces.
• Operating temperature range from -40°C to +125°C, RoHS compliant.

Specifications

• Connector type: Tube crimp connector
• Material: Electrolytic copper (E-Cu), galvanically tinned
• Conductor cross-section: 70 mm²
• Conductor material compatibility: Copper
• Design feature: With conductor stop
• Crimping method: Hexagonal crimping
• Overall length: 60 mm
• Inner diameter (nominal): 11.5 mm
• Outer diameter (nominal): 15 mm
• Operating temperature range: -40°C to +125°C
• RoHS compliant: Yes

Tips

For optimal results, use Klauke crimping tools recommended for hexagonal profiles. Ensure the conductor is fully inserted until it meets the stop, and verify the crimp with a gauge if available. The tinned surface allows soldering if required, but crimping alone provides a reliable connection.
