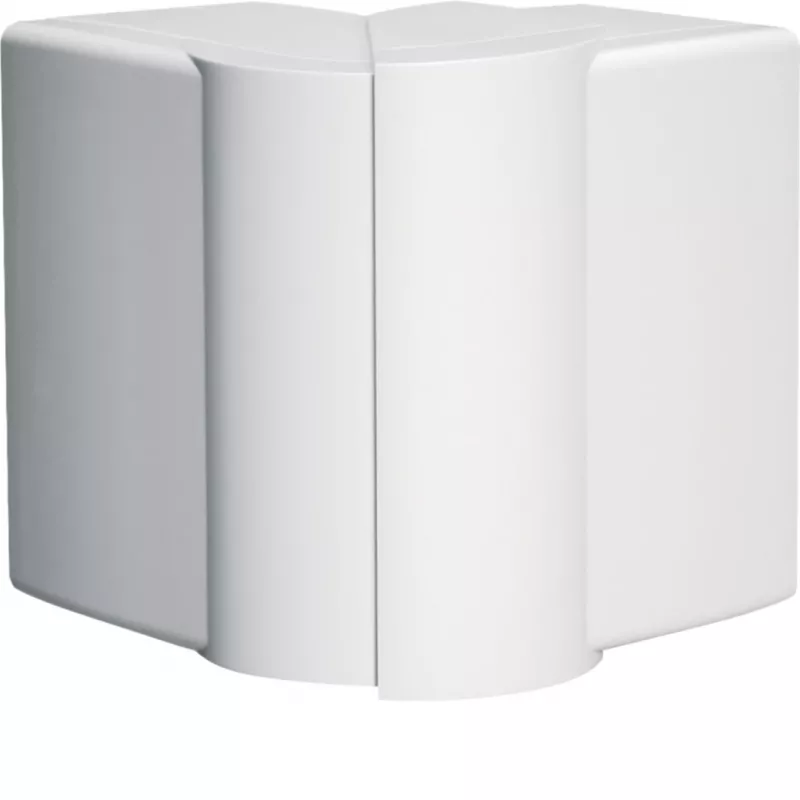

Hager angolo esterno LFF6009039016 per canale portacavi 60x90 mm, bianco traffico (RAL 9016)

Routing cable trunking around external corners often leaves exposed wiring or forces awkward bends that compromise the installation. The Hager External Corner LFF6009039016 solves this by providing a clean 90-degree turn for 60x90 mm trunking, keeping cables protected and the run looking professional.

Who is it for

Electricians and installers working with Hager LFF cable trunking in indoor environments, such as offices, commercial buildings, or residential projects, who need a reliable snap-on corner piece to complete the system.

Main features

• Compatible with Hager LFF cable trunking system, size 60 x 90 mm
• 90-degree external corner for smooth cable routing
• Snap-on / clip-on mounting for quick installation
• Made of PVC, halogen-free
• Traffic white (RAL 9016) colour

Specifications

• Product type: External corner
• Material: PVC
• Colour: Traffic white (RAL 9016)
• Mounting type: Snap-on / clip-on
• Angle: 90 degrees
• Halogen-free: Yes
• Application: Cable routing around external corners
• Operating temperature range: -5 to +60 °C

Tips

Ensure the trunking ends are cut square and clean before snapping on the corner piece. For a neat finish, align the corner with the trunking edges and press firmly until it clicks into place.
