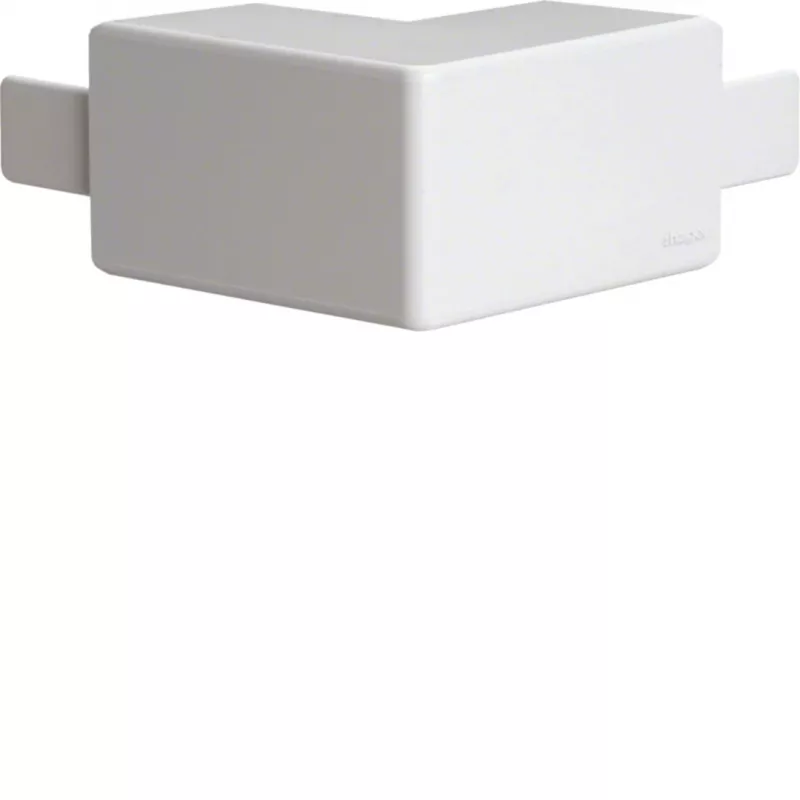

HAGER Angolo esterno per canale portacavi LF/LFF 33x20 mm, PVC, bianco puro LFF2003539016

When a cable trunking run meets an external corner, a sharp bend can damage cables and leave an unfinished look. This HAGER external corner fitting solves that by providing a smooth, snap-on cover that conceals the joint and maintains a clean, professional appearance.

Who is it for

Electricians and installers working with OBO Bettermann LF/LFF trunking profiles measuring 33 x 20 mm. It is ideal for indoor cable management in residential, commercial, or industrial settings where a neat finish is required.

Main features

• Compatible with OBO Bettermann LF/LFF trunking, 33 x 20 mm profile
• Snap-on mounting for quick installation without tools
• Made of PVC, pure white (RAL 9010) to match standard trunking
• Self-extinguishing material for added safety
• Temperature range: -5°C to +60°C

Specifications

• Product Type: External Corner Fitting
• Material: PVC
• Colour: Pure White (RAL 9010)
• Compatible Trunking System: OBO Bettermann LF/LFF
• Compatible Trunking Profile (W x H): 33 x 20 mm
• Mounting Method: Snap-on / Clip-on
• Fire Behaviour: Self-extinguishing
• Halogen-Free: No
• Temperature Range: -5°C to +60°C
• UV Resistance: Limited (Recommended for indoor use)
• Quantity per Pack: 1 piece

Tips

For a seamless installation, ensure the trunking ends are cut square and free of burrs before snapping the corner fitting into place. This fitting is designed for indoor use; for outdoor applications, consider UV-stabilised alternatives.
