HAGER BR6513069016 Terminale bianco traffico (BR6513069016)

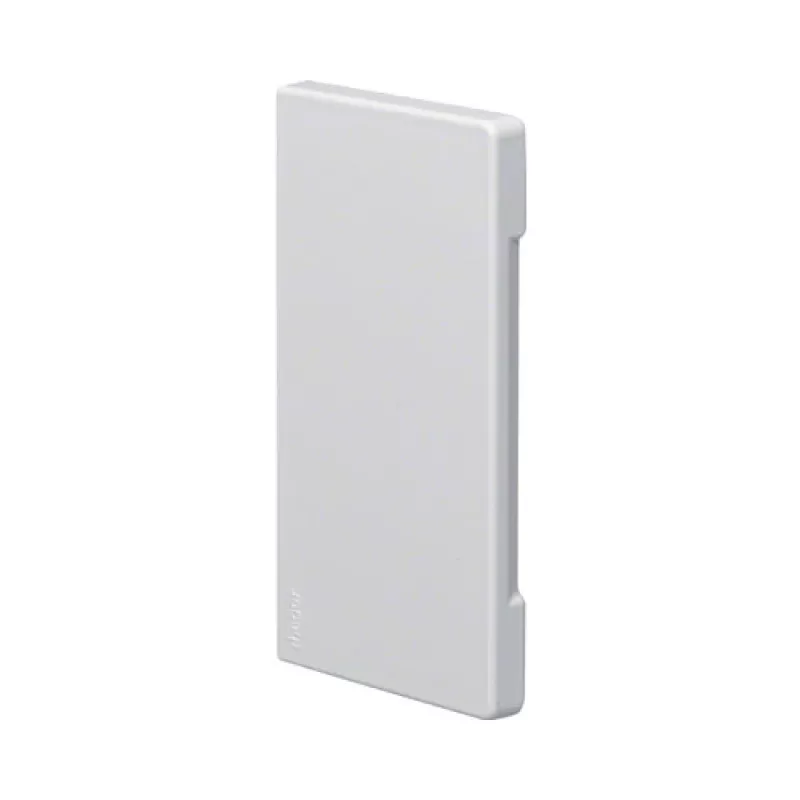

The HAGER BR6513069016 End Piece in Traffic White (RAL 9016) is a genuine accessory for the Hager tehalit.BR cable trunking system. Designed to provide a clean, professional finish at the end of a trunking run, this snap-on end cap ensures safe cable routing and protection in electrical installations. Manufactured from high-quality PVC, it is self-extinguishing according to EN 50085-1 and offers impact resistance IK07 when installed.

Advantages

Easy snap-on installation without tools; provides a neat, closed end to trunking; self-extinguishing material enhances safety; impact-resistant for durable protection; colour-matched to the tehalit.BR system.

Suitable for

• Terminating Hager tehalit.BR cable trunking with height 65 mm and width 130 mm
• Indoor electrical installations requiring a tidy, professional appearance
• Use in offices, commercial buildings, and industrial environments

Key specifications

• Product Type: End Cap / End Piece
• System Compatibility: Hager tehalit.BR Cable Trunking System
• Compatible Trunking Height: 65 mm
• Compatible Trunking Width: 130 mm
• Material: Polyvinyl Chloride (PVC)
• Colour: Traffic White (RAL 9016)
• Mounting Type: Snap-on / Clip-on
• Halogen-Free: No
• Self-Extinguishing: Yes (according to EN 50085-1)
• Surface Finish: Untreated / Matt
• UV Resistance: Not UV-resistant (for indoor use)
• Operating Temperature Range: -5 to +60 °C
• Impact Resistance: IK07 (when installed)
• Protection Degree (IP): IP30 (when installed)
• Quantity per Pack: 1 piece

Recommendations

For a complete trunking system, combine with Hager tehalit.BR trunking channels, corners, and connectors. Ensure the trunking height and width match this end piece (65 x 130 mm). Indoor use only.
