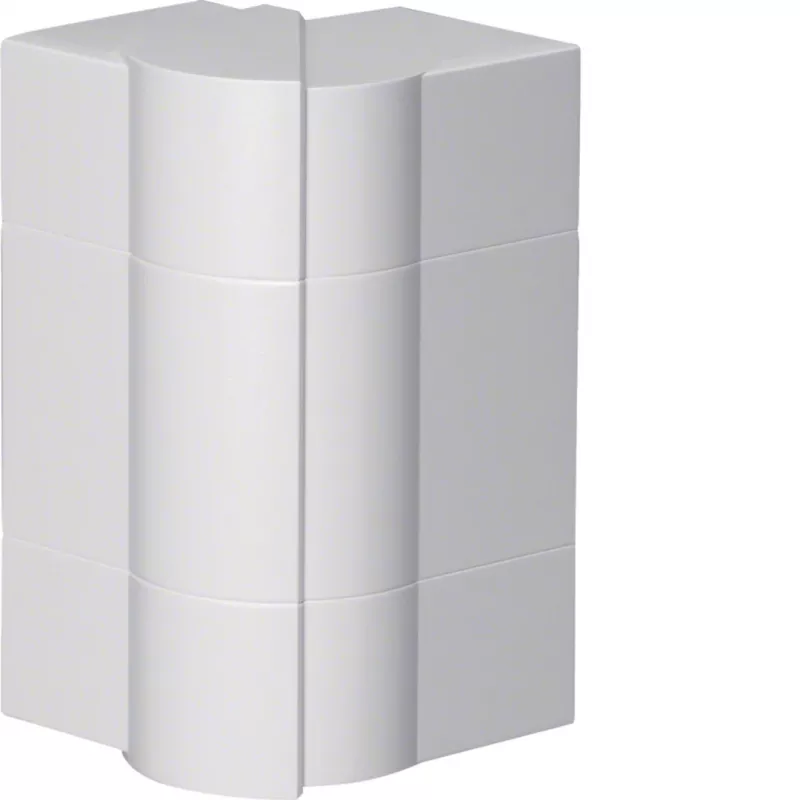

Hager BR651703H9016 angolo esterno regolabile per canale portacavi BR/A/S 68x170 mm bianco RAL 9016

The Hager BR651703H9016 is a high-quality adjustable outer corner designed for use with Hager BR, A, and S cable trunking systems. This corner piece allows for flexible routing of cables around external corners, ensuring a neat and professional installation. Manufactured from durable PVC, it is self-extinguishing and suitable for a wide range of indoor applications.

Advantages

Adjustable angle for versatile installation; snap-on mounting for quick and secure fitting; pure white finish (RAL 9016) blends seamlessly with standard trunking; halogen-free and self-extinguishing for enhanced safety.

Suitable for

• Hager BR, A, and S cable trunking systems
• External corner transitions in cable management installations
• Commercial and residential electrical installations

Key specifications

• Product Type: Adjustable Outer Corner
• System Compatibility: Hager BR, A, S Cable Trunking Systems
• Compatible Trunking Dimensions (H x W): 68 x 170 mm
• Material: PVC (Polyvinyl Chloride)
• Color: Pure White (RAL 9016)
• Halogen-free: No
• Self-extinguishing: Yes
• Operating Temperature Range: -5 to +60 °C
• Protection Class (Installed): IP30
• Mounting Type: Snap-on / Clip-on
• Adjustable Angle: Yes
• Standards: EN 50085-1, EN 50085-2-1

Recommendations

For a complete trunking system, pair this outer corner with Hager BR/A/S straight lengths, internal corners, and end caps. Ensure trunking dimensions match 68 x 170 mm for proper fit.
