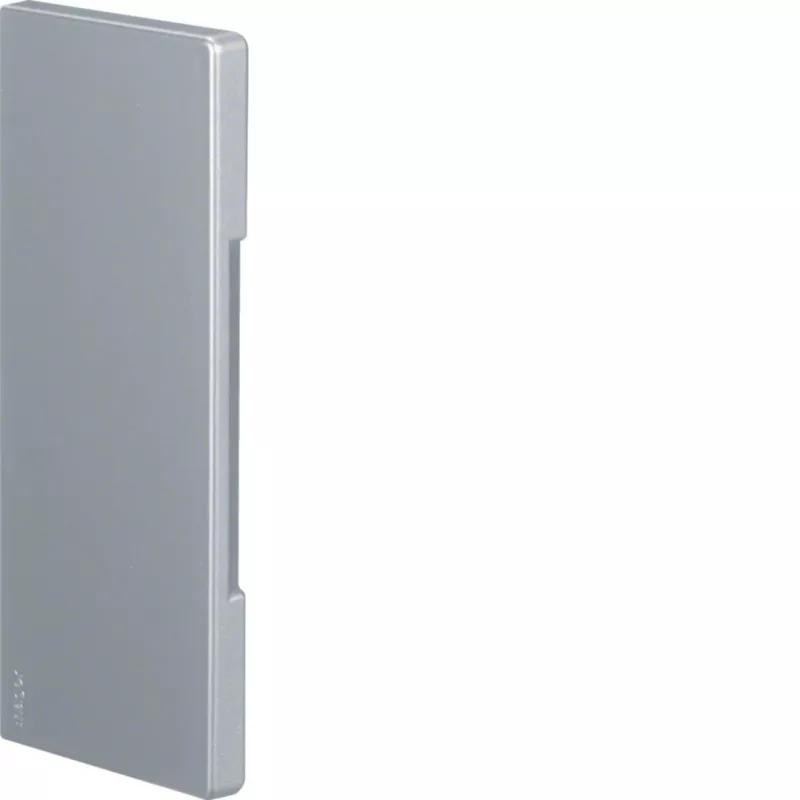

HAGER BR651706LAN pezzo terminale, copertura di taglio, senza alogeni, per canale 65x170mm, bianco

Electricians and installers finishing a Hager tehalit.BR cable trunking run use this end piece to neatly close the cut end of a 65x170 mm duct. The halogen-free PC/ABS construction clips onto the trunking without tools, concealing sharp edges and giving the installation a clean, professional look.

Key specifications

• Product type: End Piece / Cap
• Compatible trunking: Hager tehalit.BR, 65 x 170 mm
• Material: Halogen-free PC/ABS
• Colour: Pure White (RAL 9010)
• Mounting: Clip-on / Push-fit
• Application: Straight trunking runs
• Self-extinguishing: Yes
• Temperature resistance: -5 °C to +60 °C
• Impact resistance: IK07
• RoHS compliant: Yes
• REACH compliant: Yes
• Installation side: Universal (left/right)
• Packaging unit: 1 piece

Why choose it

This end piece matches the trunking profile exactly, so it stays firmly in place and blends with the duct. The halogen-free material reduces smoke and toxic gas emissions in the event of fire, making it suitable for public buildings and offices.

Ideal use cases

• Terminating surface-mounted cable trunking in offices, schools, and hospitals.
• Covering cut edges to prevent injury and improve appearance.
• Retrofitting existing Hager tehalit.BR installations.

Good to know

Designed for indoor use only; not UV-stable. One piece per pack.
