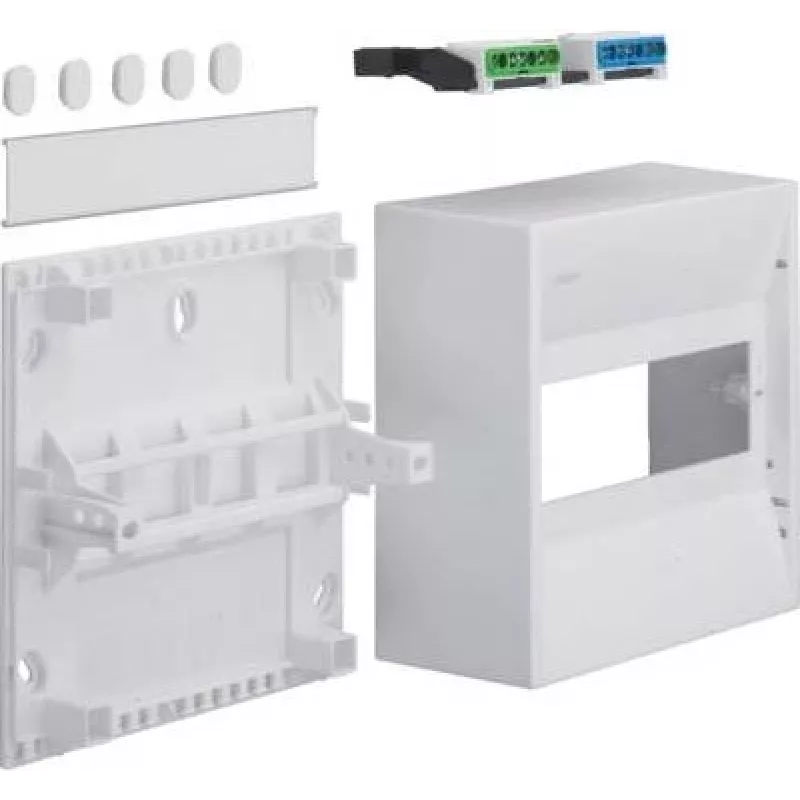

Hager GD108N Gamma quadro di distribuzione mini 8 moduli IP30 bianco

The Hager GD108N is a surface-mounted mini distribution board from the Gamma series, offering 8 modules of capacity in a compact plastic enclosure. Its IP30 protection class ensures safe operation in dry indoor environments, while the integrated PE and N terminals with 4 connection points each simplify wiring for residential and commercial installations.

Advantages

The enclosure is made of durable plastic with a clean white finish (RAL 9010), blending seamlessly into modern interiors. The opaque door provides a neat appearance while protecting internal components from dust and accidental contact. With a rated voltage of 400 V AC and compliance with EN 60439-3 and EN 61439-3, this distribution board meets rigorous safety and performance standards.

Suitable for

• Residential electrical installations
• Small commercial or office spaces
• Surface-mounted applications where flush mounting is not possible
• Distribution of single-phase or three-phase circuits up to 400 V

Key specifications

• Number of modules: 8
• Number of rows: 1
• IP protection class: IP30
• Housing material: Plastic
• Colour: White (RAL 9010)
• Door type: Opaque
• PE terminals: 1 (4 connection points)
• N terminals: 1 (4 connection points)
• Rated voltage: 400 V AC
• Glow wire test: 650 °C
• Operating temperature range: -25 to +40 °C
• Internal installation depth: 70 mm
• Total depth: 99 mm
• Product series: Gamma
• Standards compliance: EN 60439-3, EN 61439-3

Recommendations

For optimal performance, install the GD108N in a dry, dust-free environment and ensure proper cable entry sealing. Use appropriate circuit breakers and residual current devices from the Hager Gamma range for a cohesive and reliable installation.
