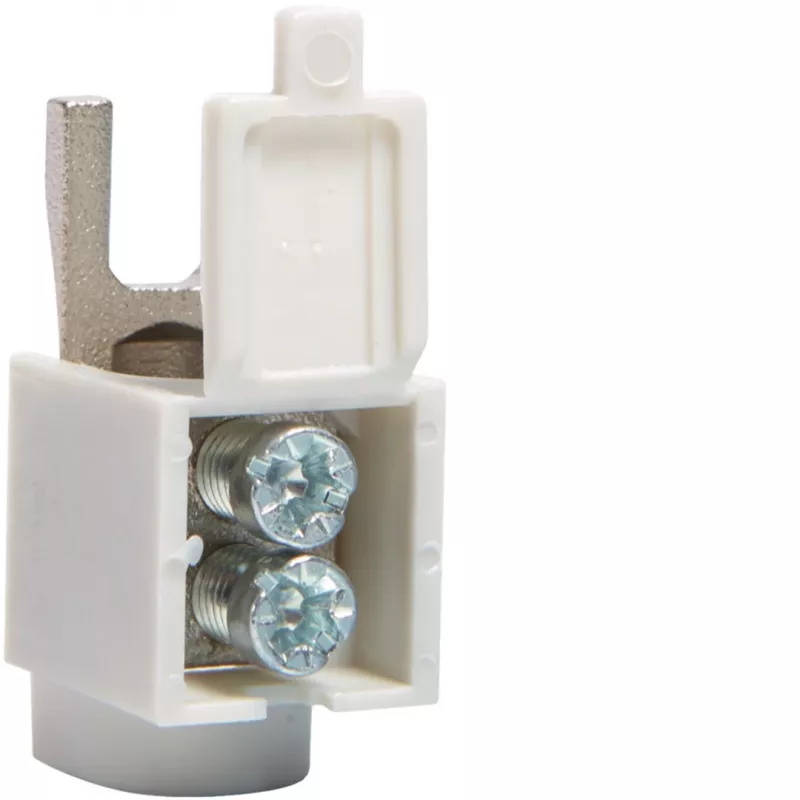

Hager KF81D morsetto di collegamento sbarra collettrice 25mm² con morsetto a forcella

Busbar connection terminal for Hager KDN busbar systems, providing a secure screw connection for 25 mm² conductors with a fork terminal for direct busbar mounting.

Advantages

Clip-on mounting to the busbar ensures quick installation without tools. The tinned copper conductor offers reliable conductivity and corrosion resistance.

Suitable for

• Power distribution in switchgear and distribution boards
• Connecting 25 mm² flexible or rigid conductors to Hager KDN busbars

Key specifications

• Cable cross-section: 25 mm² (flexible and rigid)
• Busbar connection type: Fork terminal
• Cable connection type: Screw terminal
• Rated operational voltage: 400 V AC
• Rated current: 63 A
• Number of poles: 1
• Mounting method: Clip-on to busbar
• Insulation material: Plastic
• Conductor material: Tinned copper
• Colour: Grey
• Degree of protection: IP20 (when installed)
• Operating temperature: -5 to 40 °C

Recommendations

For use with Hager KDN busbar systems in distribution boards. Ensure conductor is properly stripped and tightened to specified torque.
