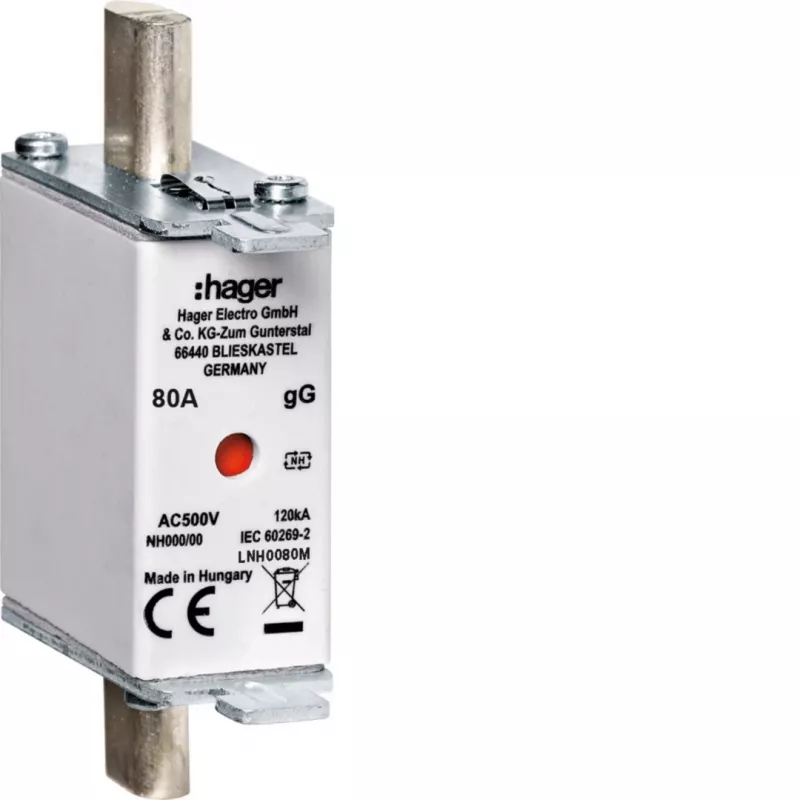

Hager LNH0080M fusibile NH000 500V gG 80A con segnalatore combinato

The Hager LNH0080M is an NH fuse link in size 000, rated at 80 A and 500 V AC, with a gG characteristic for general-purpose protection. Its combination indicator provides clear visual status, and the silver-plated copper contacts ensure reliable conductivity in NH fuse bases.

Highlights

• NH000 size, 80 A rated current
• 500 V AC, gG characteristic
• Combination indicator (Kombimelder)
• 120 kA breaking capacity
• Ceramic body, silver-plated copper contacts

In daily use

Designed for cable and line protection in low-voltage distribution systems, this fuse link offers dependable performance with a power loss of 8.5 W at rated current. It mounts in standard NH fuse bases and operates at 50/60 Hz.

Full specifications

• Fuse Type: NH Fuse Link
• Fuse Size: NH000
• Rated Current: 80 A
• Rated Voltage: 500 V AC
• Characteristic: gG
• Breaking Capacity: 120 kA
• Indicator Type: Combination Indicator
• Standard: IEC 60269-2
• Application: Cable and Line Protection
• Power Loss at Rated Current: 8.5 W
• Voltage Type: AC
• Operating Frequency: 50/60 Hz
• Body Material: Ceramic
• Contact Material: Silver-plated Copper
• Mounting: NH Fuse Base
• Number of Poles: 1

Final note

A robust choice for protecting cables and lines in industrial and commercial installations.
