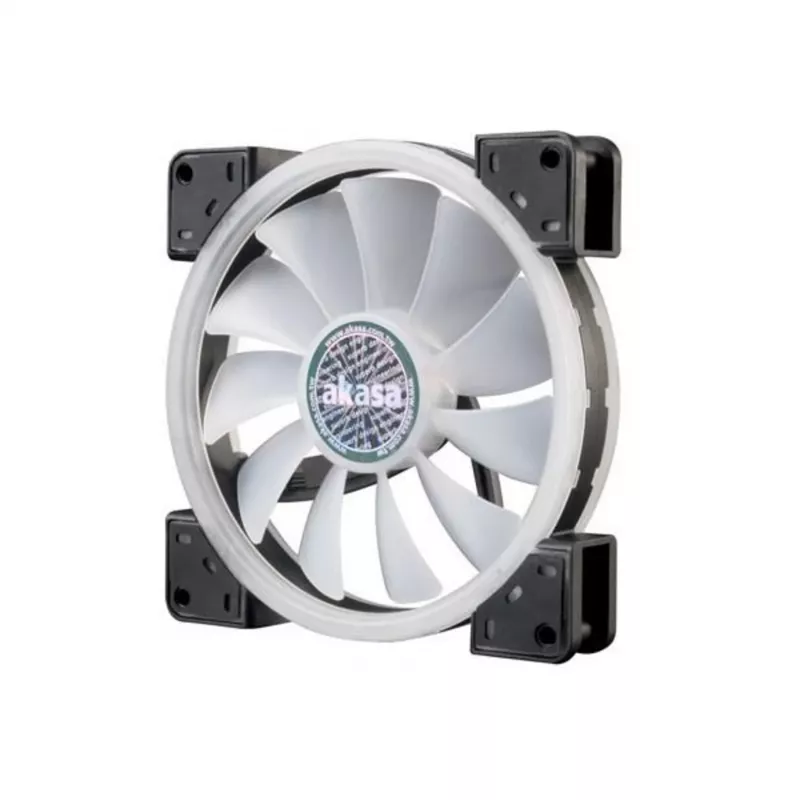

Akasa Vegas TL Ventola case 140 mm RGB PWM

The Akasa Vegas TL is a high-performance 140 mm case fan designed for enthusiasts who demand both exceptional cooling and stunning RGB lighting. Featuring a hydro dynamic bearing for long-lasting quiet operation, PWM control for precise speed adjustment, and 20 addressable RGB LEDs, this fan delivers powerful airflow and vibrant illumination to enhance any build.

Advantages

Experience superior cooling with a maximum airflow of 62.4 CFM and static pressure of 1.46 mm H2O, while maintaining low noise levels from 17.5 to 23.8 dB(A). The included anti-vibration pads reduce resonance, and the 4-pin PWM connector allows automatic speed control from 600 to 1300 RPM. The 4-pin RGB connector (12V GRB) enables synchronization with compatible motherboards or controllers for customizable lighting effects.

Suitable for

• Gaming PC cases requiring 140 mm fan mounts
• High-performance workstations needing efficient heat dissipation
• RGB-themed builds with 12V RGB support
• Quiet computing setups where low noise is critical

Key specifications

• Fan Dimensions: 140 x 140 x 25 mm
• Speed: 600 - 1300 RPM (PWM)
• Max Airflow: 62.4 CFM
• Max Static Pressure: 1.46 mm H2O
• Noise Level: 17.5 - 23.8 dB(A)
• Bearing: Hydro Dynamic Bearing (HDB)
• Fan Connector: 4-pin PWM
• LED Connector: 4-pin RGB (12V GRB)
• LED Type: RGB
• Number of LEDs: 20
• Rated Voltage (Fan/LED): 12V DC
• Rated Current (Fan): 0.16A
• Rated Current (LED): 0.30A
• Power Consumption (Fan): 1.92W
• Power Consumption (LED): 3.6W
• MTBF: 40,000 hours
• Cable Length: 400 mm (fan), 400 mm (RGB)

Recommendations

For optimal performance, pair the Vegas TL with a PWM-capable motherboard header and a 12V RGB header. Ensure your case supports 140 mm fans. The fan is ideal for intake or exhaust positions and can be used in push-pull configurations on radiators.
