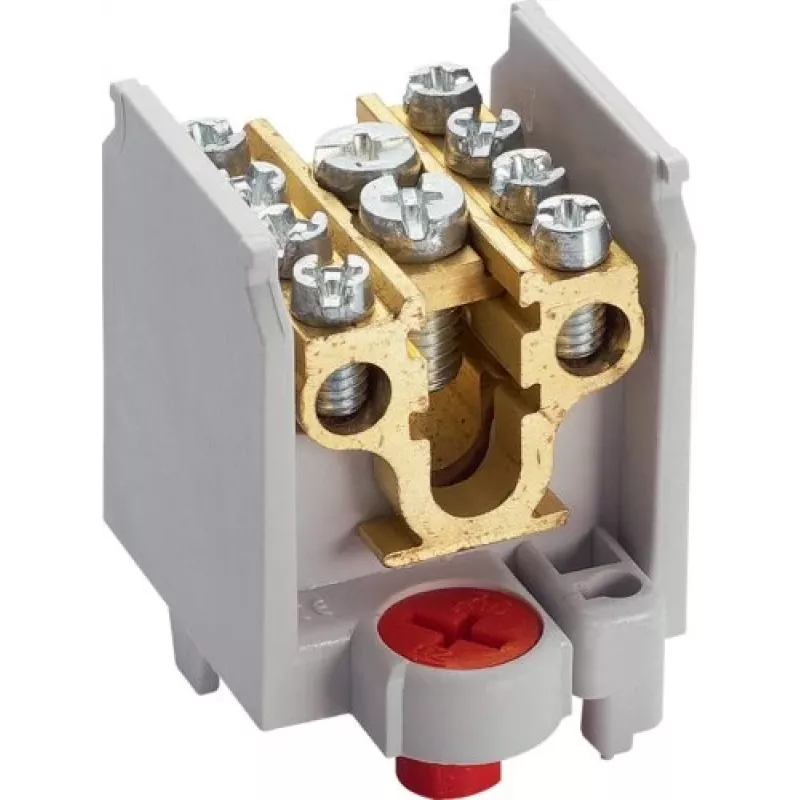

Hager morsetto di derivazione per linea principale K65 1x35/4MP

In electrical distribution, connecting a large main conductor to multiple smaller branch conductors often requires multiple terminal blocks and complex wiring. The Hager K65 main line branch terminal block solves this by providing a single, compact connection point for one main input and four branch outputs, simplifying installation and reducing cabinet clutter.

Who is it for

This terminal block is intended for electricians and panel builders who need to distribute power from a main line to several branch circuits in distribution boards, control cabinets, or industrial installations. It is suitable for use in low-voltage power distribution systems where reliable and maintenance-free connections are required.

Main features

• 1-pole main line branch terminal block
• Main input conductor cross-section: 1 x 35 mm² (rigid/flexible)
• Branch output conductor cross-section: 4 x 16 mm² (rigid/flexible)
• Screw terminal connection
• Mounting on 35 mm DIN rail or by screws
• Housing material: polyamide (PA), grey
• Conductor material: brass, tinned

Specifications

• Rated operational voltage: 690 V AC
• Rated insulation voltage: 1000 V
• Rated impulse withstand voltage: 8 kV
• Rated current (main input): 125 A
• Rated current (branch output): 57 A
• Protection degree: IP20
• Operating temperature range: -25 to +70 °C
• Flammability class: UL94-V0

Tips

Ensure that the conductor cross-sections match the specified ranges and that the terminal block is installed in an enclosure providing appropriate protection against direct contact. Tighten screws to the recommended torque to guarantee a secure connection.
