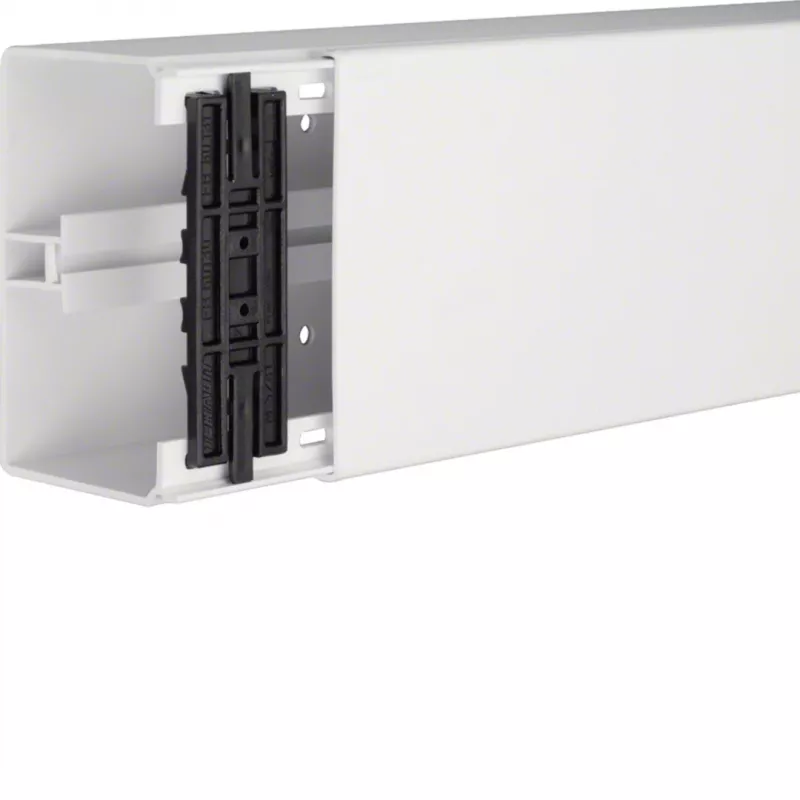

HAGER Tehalit FB canale portacavi 130x80 mm 2 m bianco puro PVC FB8013009016

The Tehalit FB trunking from HAGER stands out with its generous 130 mm width and 80 mm height, offering ample space for cable routing while maintaining a clean, unobtrusive profile. Unlike basic conduits, this model supports direct device installation and optional partition walls, making it a flexible backbone for structured cabling in offices and commercial spaces.

Highlights

• Pure white (RAL 9010) PVC construction blends with modern interiors
• 2-meter length with snap-on lid for easy access during installation
• Rigid, flame-retardant material suitable for wall mounting
• Compatible with Tehalit FB accessories for seamless expansion

In daily use

Installers appreciate the straightforward wall mounting and the ability to insert partition walls to separate power and data cables within the single chamber. The lid closes securely, protecting cables from dust and accidental contact while allowing quick re-entry for maintenance. Its impact resistance (IK07) ensures durability in high-traffic areas.

Full specifications

• Material: PVC
• Colour: Pure White (RAL 9010)
• External width: 130 mm
• External height: 80 mm
• Length: 2000 mm
• Number of chambers: 1 (partitionable)
• Lid included: Yes
• Mounting type: Wall-mounted
• Device installation: Suitable for direct device installation
• Partition wall option: Yes
• Halogen-free: No
• Operating temperature range: -5 °C to +60 °C
• Protection class: IP30 (with lid)
• Fire behavior: Flame-retardant
• Impact resistance: IK07
• Standards compliance: EN 50085-1, EN 50085-2-1
• Surface protection: Untreated
• Flexibility: Rigid

Final note

For projects requiring a robust, aesthetically neutral cable management solution, the HAGER Tehalit FB delivers reliable performance with the flexibility to adapt as cabling needs evolve.
