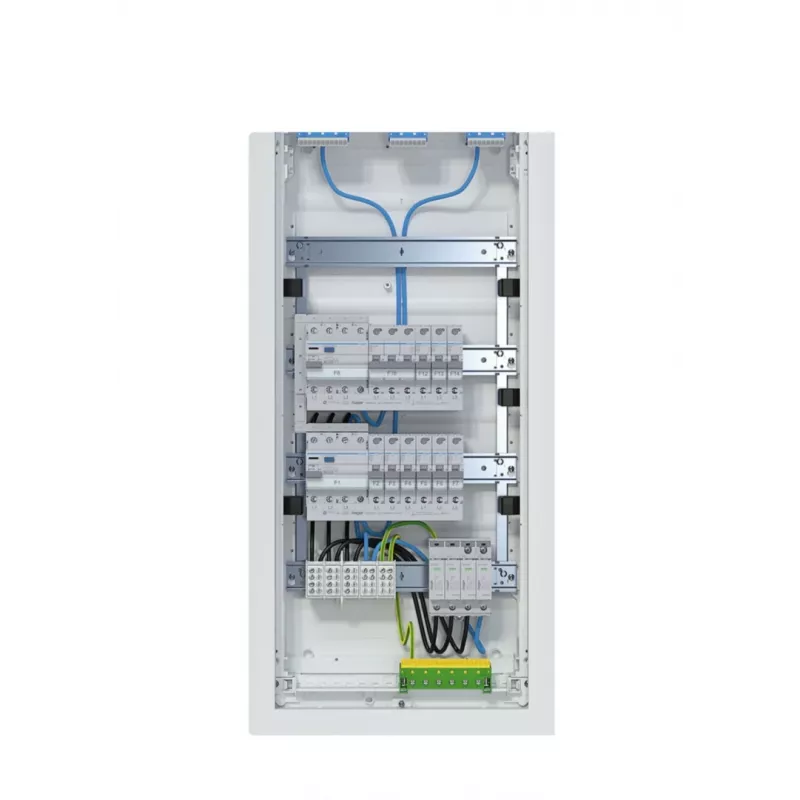

HAGER VU48BV1 Volta quadro di distribuzione 4x12 PLE IP30 da incasso equipaggiato e cablato

The HAGER VU48BV1 is a high-quality flush-mounted distribution board from the Volta series, designed for efficient and safe electrical distribution in residential and commercial indoor environments. This pre-populated and wired unit features 4 rows with 12 modules each (48 PLE total), offering ample space for circuit breakers and other DIN rail components. With an IP30 rating and protection class II, it ensures reliable performance and safety.

Advantages

Pre-populated and wired for quick installation, saving time and labor. The flush-mounted design provides a clean, integrated look. Robust construction with galvanized sheet steel enclosure and steel door in traffic white (RAL 9016) ensures durability and aesthetic appeal. Integrated side wiring space simplifies cable management.

Suitable for

• Residential electrical distribution systems
• Commercial building installations
• Indoor flush-mounting applications
• Distribution of power up to 63 A and 400 V AC

Key specifications

• Brand: HAGER
• Model: VU48BV1
• MPN: VU48BV1
• EAN: 3250619926025
• Category: Distribution Board
• Mounting Type: Flush-mounted (UP)
• Number of Rows: 4
• Modules per Row: 12
• Total Modules (PLE): 48
• Ingress Protection: IP30
• Protection Class: II (double insulated)
• Door Material: Steel
• Door Color: Traffic White (RAL 9016)
• Enclosure Material: Galvanized Sheet Steel
• Rated Voltage: 400 V AC
• Rated Current: 63 A
• Terminal Blocks: N and PE screw terminals
• DIN Rail Type: 35mm standard DIN rail
• Wiring Space: Integrated side wiring space
• Door Opening Angle: 120°
• Lock Type: Double-bit lock (replaceable with cylinder lock)
• Standards Compliance: DIN VDE 0603-1, DIN 43870-1
• Application Environment: Indoor
• Cable Entry: Pre-punched knockouts (top, bottom, sides)
• Series: Volta

Recommendations

For optimal performance, use with HAGER circuit breakers and accessories. Ensure proper installation by a qualified electrician. This distribution board is ideal for new constructions or renovations requiring a reliable and expandable electrical distribution solution.
