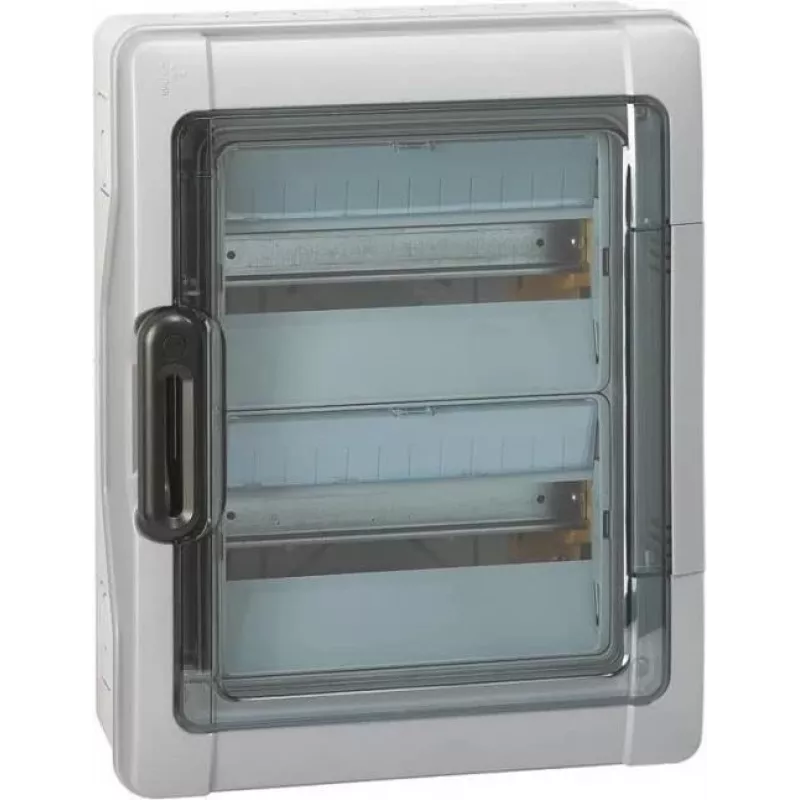

Quadro elettrico di distribuzione Legrand 601982 larghezza 340 mm profondità 161 mm altezza 432 mm

The Legrand 601982 electrical distribution board provides a compact and practical solution for organizing and protecting electrical circuits in residential and light commercial installations. With external dimensions of 340 mm width, 161 mm depth and 432 mm height, the enclosure offers enough internal space to mount multiple circuit breakers, residual-current devices and auxiliary modules while maintaining a small footprint. The unit is designed to integrate with standard DIN-rail components and to facilitate safe cable entry and internal wiring.

Advantages

The distribution board features a robust enclosure that supports safe separation of live parts and provides mechanical protection for mounted components. Its compact dimensions allow installation in utility rooms, basements, small service cupboards or behind access panels. The design simplifies wiring and inspection thanks to accessible internal mounting space and standardized rail accommodation, improving installation speed and long-term maintainability.

Suitable for

Key specifications

How to use

Mount the distribution board on a suitable, level surface using appropriate fixings for the wall material. Ensure the supply is isolated before making any connections. Install DIN-rail mounted devices inside the enclosure according to the electrical schematic, leaving adequate spacing for heat dissipation and conductor routing. Route incoming and outgoing cables through the designated knockouts or cable entries, secure conductors with appropriate terminals, and tighten all connections to the torque values specified by the device manufacturers. After wiring, recheck all connections and restore supply to verify correct operation of protection devices and circuits.

Ieteicamais lietojums

For safe and code-compliant installation, have the distribution board installed or inspected by a qualified electrician. Verify compatibility of breakers and protective devices with the enclosure dimensions and mounting arrangement before final assembly.
