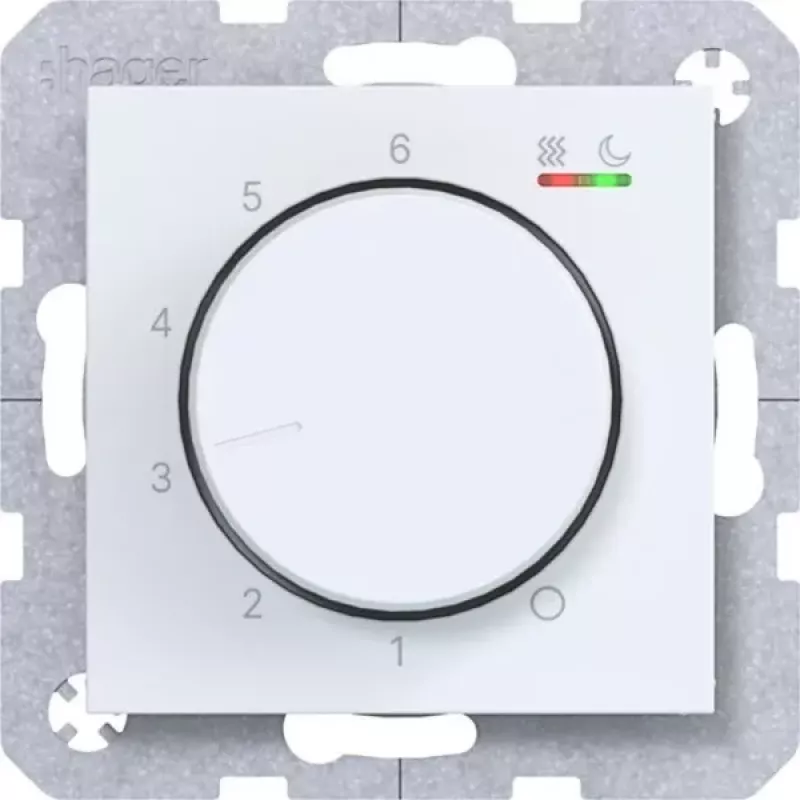

HAGER WAN5010WM termostato ambiente 230V/16A a rotella/pulsante per riscaldamento

Analog room temperature controller for heating systems with a mechanical rotary/push knob. Controls 230V AC loads up to 16A (3680W) via a single normally open contact. Bimetallic sensing with a setting range of 5°C to 30°C and a switching differential of approximately 0.5 K. Flush-mounted in polar white (RAL 9010) thermoplastic housing. Screw terminals accept conductors up to 2.5 mm².

Advantages

Simple mechanical operation with a rotary knob and push function. Reliable bimetallic temperature sensing without external power for the control circuit. Compact flush-mount design fits standard wall boxes. Suitable for resistive heating loads up to 3680W.

Suitable for

• Room temperature control in residential and commercial heating systems
• Electric radiators, convectors, and underfloor heating with resistive loads
• Flush-mounted installation in standard wall boxes

Key specifications

• Operating voltage: 230V AC, 50/60 Hz
• Switching current: 16 A resistive, max. 3680 W
• Contact: 1 normally open (NO)
• Temperature setting range: 5°C to 30°C
• Switching differential: approx. 0.5 K
• Mounting: flush-mounted
• Protection class: IP20
• Colour: polar white (RAL 9010)
• Material: thermoplastic
• Connection: screw terminals, max. 2.5 mm²
• Operating temperature range: 0°C to +50°C
• Control type: bimetallic

Recommendations

For reliable room temperature regulation in heating circuits, this controller offers straightforward mechanical operation and robust switching capacity.
