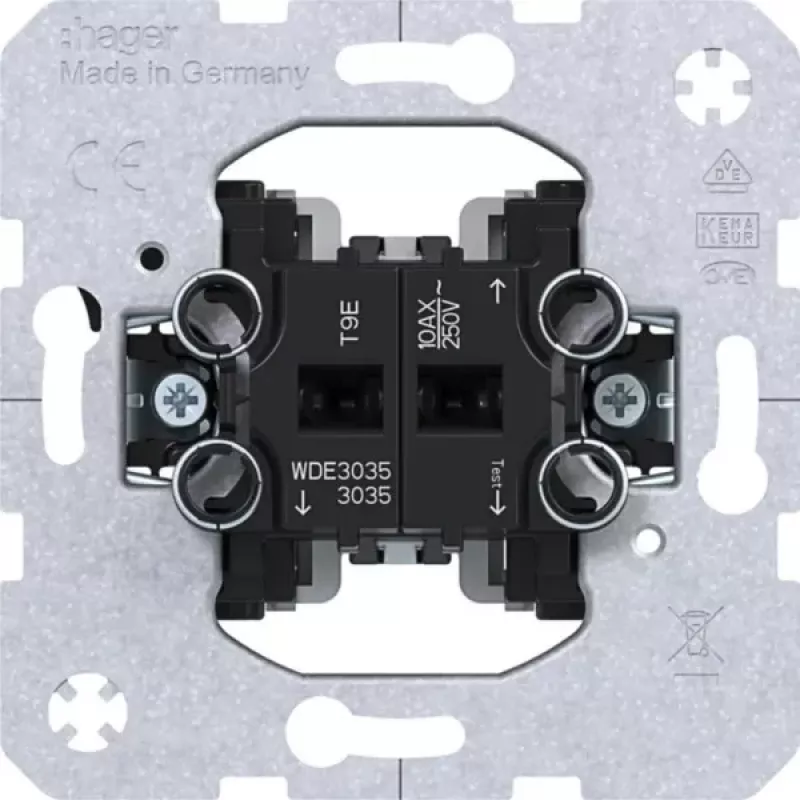

Hager WDE3035 inserto interruttore unipolare, da incasso, 10 AX, 250 V, morsetti a vite, senza alogeni

Unlike generic switch mechanisms that often compromise on terminal space or material quality, the Hager WDE3035 series switch insert pairs a compact thermoplastic body with generous screw terminals, making it a reliable choice for both new wiring and retrofit projects in residential or commercial settings.

Highlights

• Series switching function: one double rocker controls two separate circuits from a single mounting point.
• Rated at 10 AX, 250 V AC – suitable for lighting and small motor loads up to 2300 W.
• Flush-mounted (UP) design fits standard European wall boxes with 60 mm fixing centres.
• Screw terminals accept rigid conductors from 1.5 to 2.5 mm², ensuring secure and maintenance-free connections.
• Halogen-free thermoplastic housing reduces toxic smoke in the event of fire.
• IP20 protection when installed with a compatible Hager frame and rocker.
• VDE and CE certified for safety and performance.

In daily use

Installing the WDE3035 is straightforward: connect the incoming phase and two outgoing load wires to the clearly marked screw terminals, then snap the insert into a standard flush box and complete with a Hager WDE series double rocker and frame. The rocker action is crisp and durable, rated for tens of thousands of operations. Because the insert is halogen-free and made of high-grade thermoplastic, it remains stable over a wide temperature range.

Full specifications

• Product Type: Switch Insert
• Switch Function: Series Switch (Double Switch)
• Mounting Type: Flush-mounted (UP)
• Rated Current: 10 AX
• Rated Voltage: 250 V AC
• Connection Type: Screw Terminals
• Number of Terminals: 3
• Terminal Capacity: 1.5 - 2.5 mm² (rigid conductors)
• Material: Thermoplastic
• Halogen-free: Yes
• IP Protection Class: IP20 (when installed)
• Switching Principle: Rocker
• Compatibility: Hager WDE series (for rockers and frames)
• Operating Temperature Range: -5 to +40 °C
• Certification: VDE, CE
• Number of Rockers Required: 1 (double rocker)

Final note

The Hager WDE3035 is a dedicated series switch insert engineered for flush-mounted installations where a single rocker must control two independent circuits, offering reliable performance and safety.
