Hager ZY5N1LS Kit completo quadro contatori per vano contatore altezza 1400mm, 6A

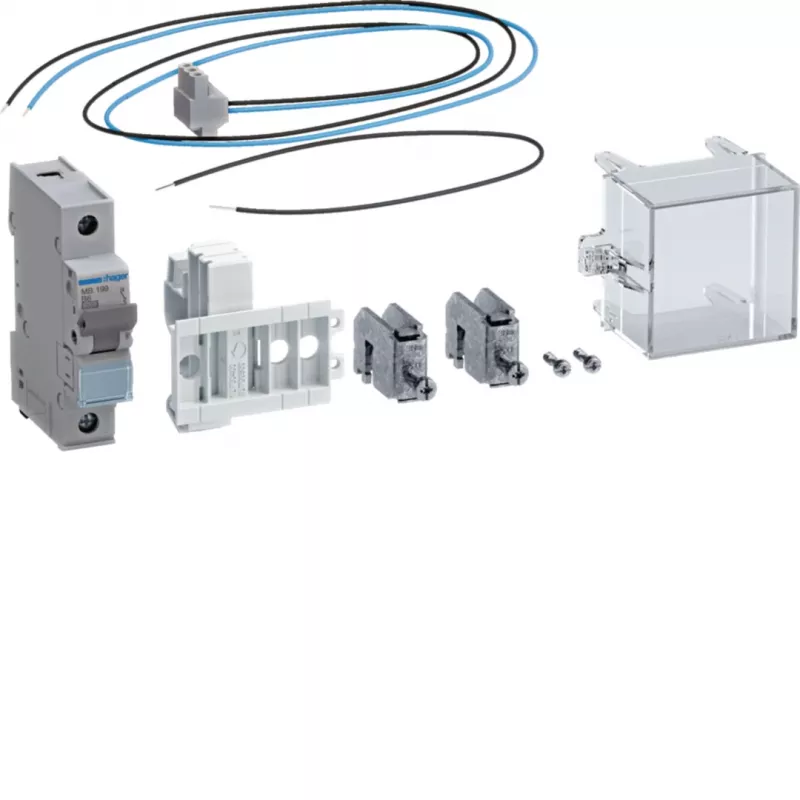

The Hager ZY5N1LS is a pre-assembled meter cabinet package designed for meter spaces (RfZ) in distribution boards with a height of 1400 mm. This complete set includes all essential components for a single meter place, ensuring quick and reliable installation.

Advantages

Time-saving pre-assembled package reduces on-site labor. Includes high-quality Hager components for long-term reliability. Compact design fits standard 1400 mm meter spaces.

Suitable for

• Residential and commercial meter cabinets
• Distribution boards requiring a single meter place
• New installations or retrofits

Key specifications

• Product Type: Meter Cabinet Assembly Package
• Application: For meter spaces (RfZ) in distribution boards
• Compatible Meter Space Height: 1400 mm
• Number of Meter Places: 1
• Included Main Line Branch Terminal: 1x 5-pole, 25mm²
• Included Busbar Set: 1x 5-pole, 12x5mm
• Included Miniature Circuit Breakers (MCB): 3x B6A, 1-pole
• MCB Characteristic: B-characteristic
• MCB Rated Current: 6 A
• Included Meter Wiring Kit: Yes
• Included N/PE Terminal Block: Yes
• Included Auxiliary Circuit Terminal Block: Yes
• Rated Voltage: 230/400 V AC
• Max. Main Line Terminal Cross-Section: 25 mm²
• Mounting Type: Snap-on / Screw mounting (within cabinet)
• Material: Plastic, Copper, Steel

Recommendations

Ensure compatibility with your cabinet's meter space height. Professional installation recommended.
