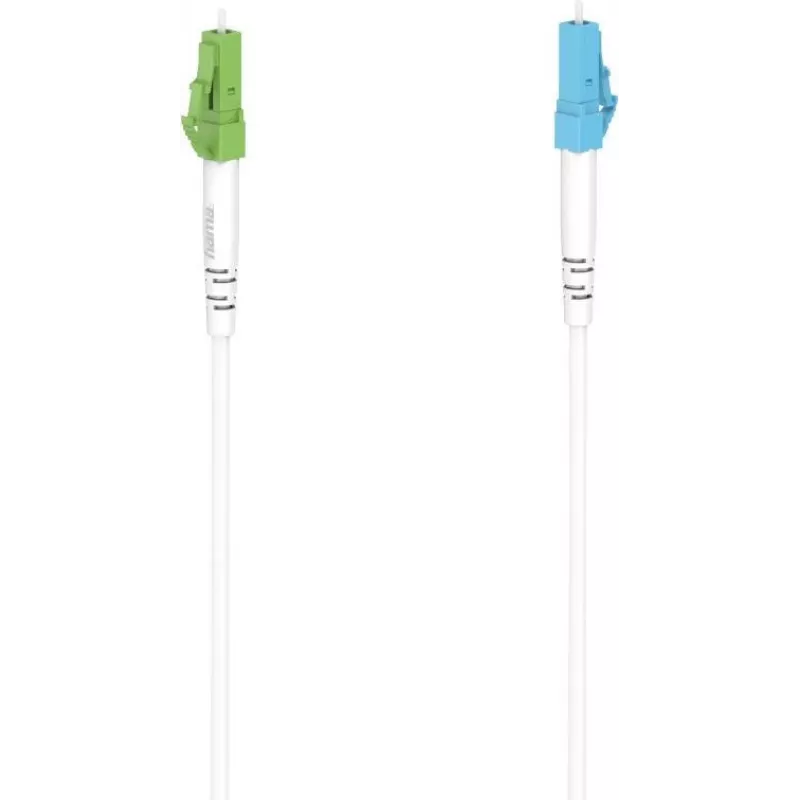

Hama 00200742 Cavo in fibra ottica Single-Mode OS2, LC/APC a LC/UPC, 3 m, bianco

In modern data centers and telecommunication networks, reliable high-speed optical transmission is non-negotiable. Signal degradation from poor connector polish or mismatched interfaces can lead to costly downtime. The Hama 00200742 fiber optic cable solves this by combining an LC/APC connector on one end and an LC/UPC connector on the other, ensuring minimal reflection and insertion loss for stable, long-distance single-mode links.

Who is it for

Network engineers, data center technicians, and telecom installers who need a dependable simplex OS2 patch cable for interconnecting equipment with different polish types, such as between an OLT and a patch panel, or where angled and ultra physical contact terminations must coexist.

Main features

• Connector 1: LC/APC (Angled Physical Contact) – return loss > 60 dB for minimal back reflection.
• Connector 2: LC/UPC (Ultra Physical Contact) – return loss > 50 dB for low insertion loss.
• Single-mode OS2 fiber, 9/125 µm core/cladding, optimized for 1310 nm and 1550 nm wavelengths.
• Simplex cable structure with durable PVC jacket, white color for easy identification.
• 3-meter length, ideal for patching in racks or between adjacent equipment.
• Insertion loss typically < 0.3 dB per connection, ensuring signal integrity.
• Operating temperature range: -20°C to 70°C, suitable for controlled environments.

Specifications

• Brand: Hama
• Model: 00200742
• MPN: 00200742
• EAN: 4047443445544
• Cable type: Fiber optic, single-mode OS2
• Connector 1: LC/APC
• Connector 2: LC/UPC
• Fiber mode: Single-mode
• Core diameter: 9 µm
• Cladding diameter: 125 µm
• Cable length: 3 m
• Jacket material: PVC
• Colour: White
• Insertion loss (typical): < 0.3 dB
• Return loss (APC): > 60 dB
• Return loss (UPC): > 50 dB
• Operating temperature: -20°C to 70°C

Tips

Always inspect and clean connector end faces before mating to avoid contamination-induced attenuation. Use dust caps when the cable is not connected. For best performance, avoid tight bends; maintain a bend radius of at least 10 times the cable diameter.
