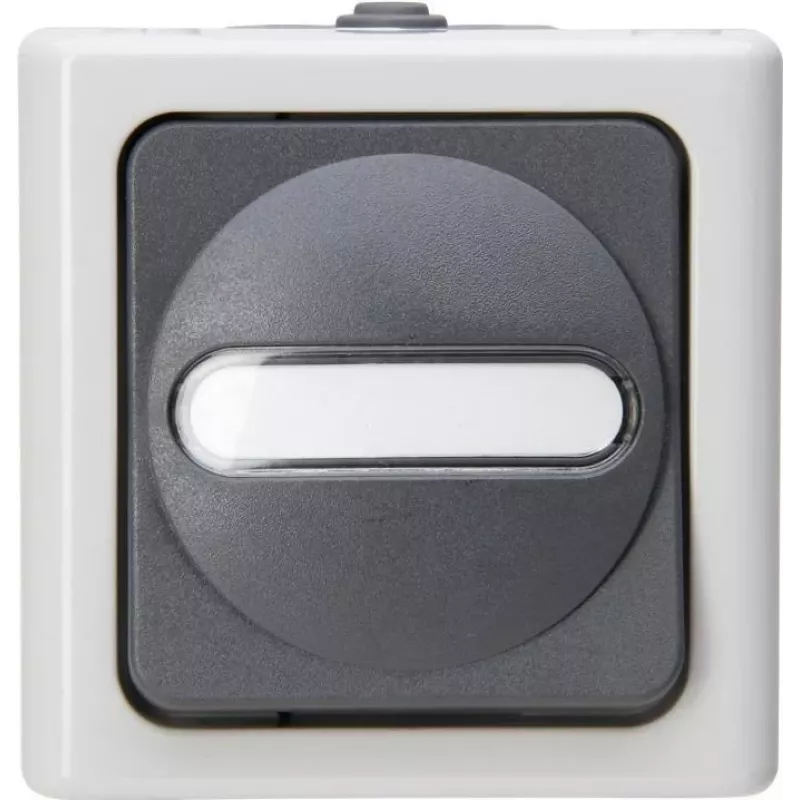

HEINRICH KOPP Interruttore universale BLUE ELECTRIC grigio da parete per ambienti umidi 10A, 250V (560656006)

In damp environments such as cellars, garages or outdoor covered areas, standard switches can fail due to moisture ingress. The HEINRICH KOPP Universal Switch BLUE ELECTRIC solves this by providing a surface-mounted solution rated for damp rooms, with a grey thermoplastic housing and IP44 protection against splashing water.

Who is it for

Electricians and homeowners who need a reliable switch for use in damp locations where a flush-mounted installation is not possible or desired. The surface-mounted design allows easy installation on walls or conduits without cutting into the wall.

Main features

• Universal switch with changeover function, suitable for a variety of switching tasks.
• Surface-mounted (AP) for simple installation on any flat surface.
• Designed for damp rooms (Feuchtraum), with IP44 protection against splashing water.
• Rated for 10 A, 250 V AC, making it suitable for lighting and small loads.
• Grey thermoplastic housing that is halogen-free and UV-resistant.
• Connection via screw terminals, accepting conductors up to 2.5 mm².
• Multiple cable entries via membrane or knock-outs for flexible wiring.

Specifications

• Switch type: Universal switch (changeover)
• Mounting type: Surface-mounted (AP)
• Application environment: Damp room
• Colour: Grey
• Rated current: 10 A
• Rated voltage: 250 V AC
• Protection class: IP44
• Housing material: Thermoplastic
• Number of rockers: 1
• Connection type: Screw terminals
• Terminal capacity: 2.5 mm²
• Cable entry: Multiple (membrane/knock-outs)
• Halogen-free: Yes
• UV-resistant: Yes
• Operating temperature range: -25°C to +35°C
• Series: BLUE ELECTRIC AP-Feuchtraum

Tips

For outdoor use, ensure the switch is installed in a covered area to avoid direct rain, as IP44 provides protection against splashing water but not immersion. Use appropriate cable glands or seals to maintain the IP rating.
