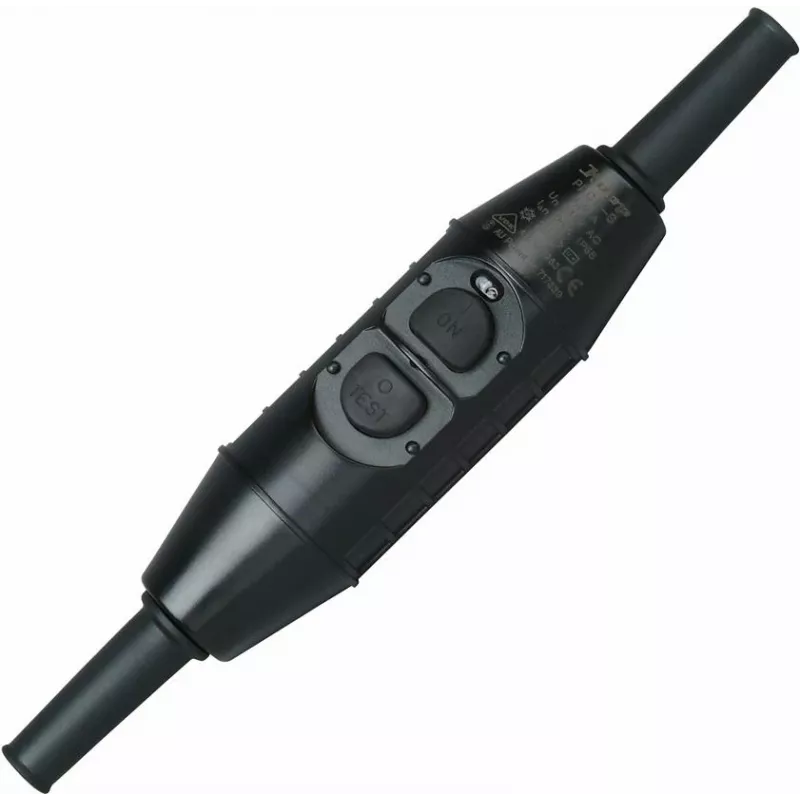

HEINRICH KOPP PRCD-S interruttore differenziale mobile 3 poli 10mA 16A 230V IP55 196300018

This portable residual current device (PRCD-S) offers personal protection with a rated residual operating current of just 10 mA, making it suitable for use with mobile equipment outdoors, on construction sites, and in workshops. Its 3-pole design monitors the protective conductor and includes undervoltage release, ensuring safe operation even in challenging conditions.

Highlights

• Rated residual operating current: 10 mA
• Rated current: 16 A, rated voltage: 230 V AC
• 3-pole (L, N, PE monitored) with protective conductor monitoring
• IP55 ingress protection against dust and water jets
• Integrated test button and manual reset
• Schuko plug and socket (CEE 7/7 and CEE 7/3)
• Undervoltage release for added safety

In daily use

Connect the PRCD-S between the power source and your equipment. Before each use, press the test button to verify the residual current protection. The device automatically disconnects the circuit if a fault current of 10 mA or more is detected, or if the supply voltage drops below a safe level. The high-impact thermoplastic housing withstands tough environments, and the IP55 rating allows use in dusty or wet conditions.

Full specifications

• Device type: Portable Residual Current Device (PRCD-S)
• Rated residual operating current (IΔn): 10 mA
• Rated current (In): 16 A
• Rated voltage (Un): 230 V AC
• Number of poles: 3-pole (L, N, PE monitored)
• Ingress protection: IP55
• Frequency: 50/60 Hz
• Plug type: CEE 7/7 (Schuko)
• Socket type: CEE 7/3 (Schuko)
• Protective conductor monitoring: Yes
• Undervoltage release: Yes
• Test function: Integrated test button
• Reset function: Manual reset
• Application area: Mobile equipment, outdoor, construction sites, workshops
• Housing material: High-impact thermoplastic
• Operating temperature range: -25°C to +40°C
• Standards/Certifications: VDE, GS
• Connection type: Inline (Plug & Socket)

Final note

For reliable personal protection on the go, the HEINRICH KOPP PRCD-S delivers fast, sensitive residual current interruption in a rugged, portable design.
